IBM x3100 M5 Type 5457 User Manual

7. Remove the hard disk drive fan duct (see “Removing the hard disk drive fan
duct” on page 222). Doing so requires removing the cables from the cable
clips.
8. Press and hold the hard disk drive cage release tab; then, rotate the hard disk
drive cage out of the chassis until the retaining tab on top of the cage locks
into place.
9. Disconnect the power, signal and configuration cables from the hard disk
drive backplane.
The following illustration is for 5U server models with 2.5" hot swap hard
disk drives installed.
The following illustration is for 5U server models with 3.5" hot swap hard
disk drives installed.
Hard disk drive cage
Release tab

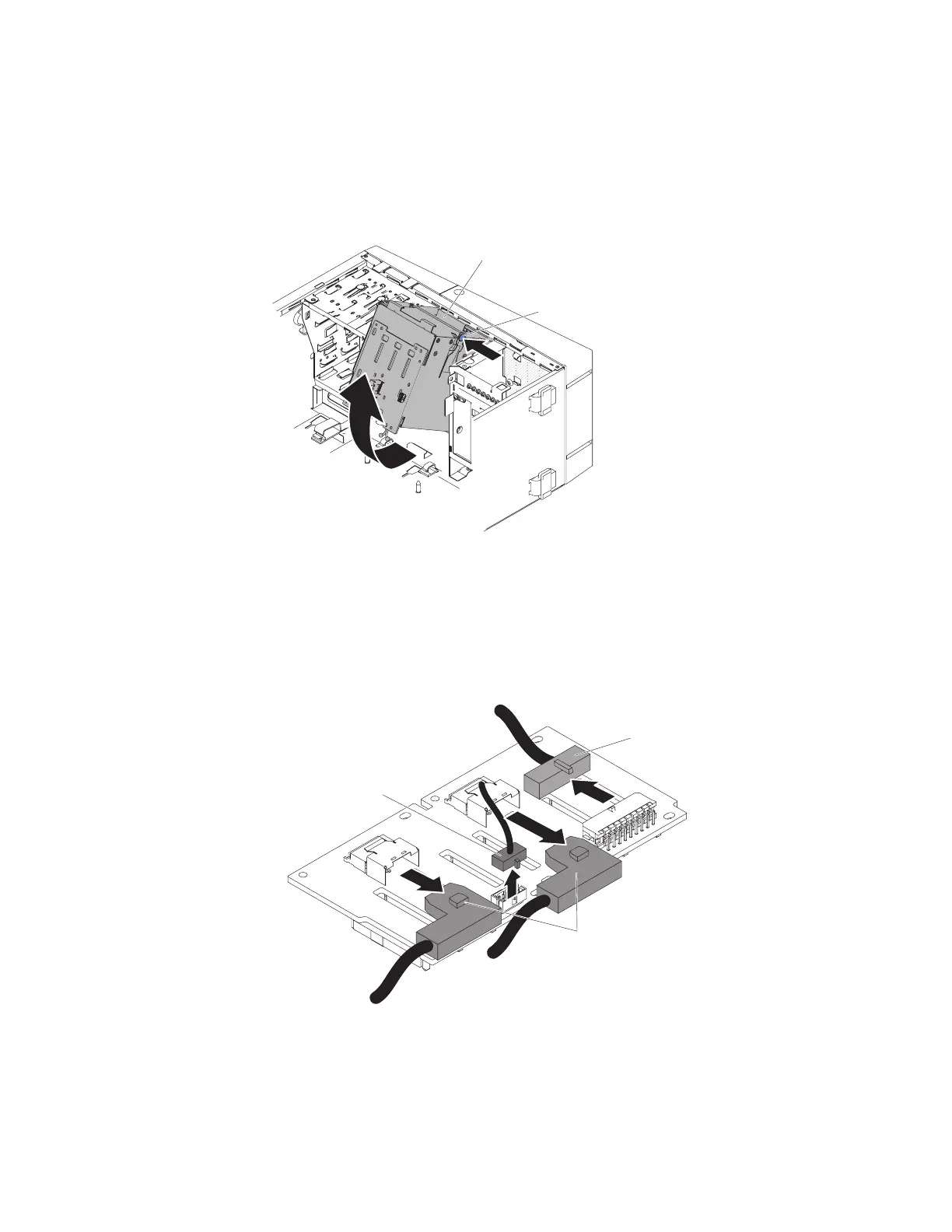

Figure 149. Rotating hard disk drive cage out of chassis for 5U server model with hot-swap
power supplies
Signal cables
Power cable
Configuration cable
Figure 150. 2.5" hot swap hard disk drive backplane cabling removal for 5U server model
with hot-swap power supplies
Chapter 6. Removing and replacing components 241

IBM x3100 M5 Type 5457 Specifications

General

Memory	Up to 32 GB
Form Factor	Tower
Chipset	Intel C222
Processor	Intel Xeon E3-1200 v3 series, Intel Core i3 series, Intel Pentium series
Memory Type	DDR3 ECC
Memory Slots	4 DIMM slots
RAID Support	RAID 0, 1, 10
Network	Dual Gigabit Ethernet
Storage Bays	4 x 3.5-inch
Operating System Support	Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
Expansion Slots	1 PCIe 3.0 x8
