of the opening in the chassis.
11. Squeeze the spring clips on the sides of the front USB connector assembly and
pull the assembly out of the back of the housing.
12. Carefully pull the front USB cable out of the opening in the chassis.
13. If you are instructed to return the front USB connector assembly, follow all
packaging instructions, and use any packaging materials for shipping that are
supplied to you.
Front USB housing

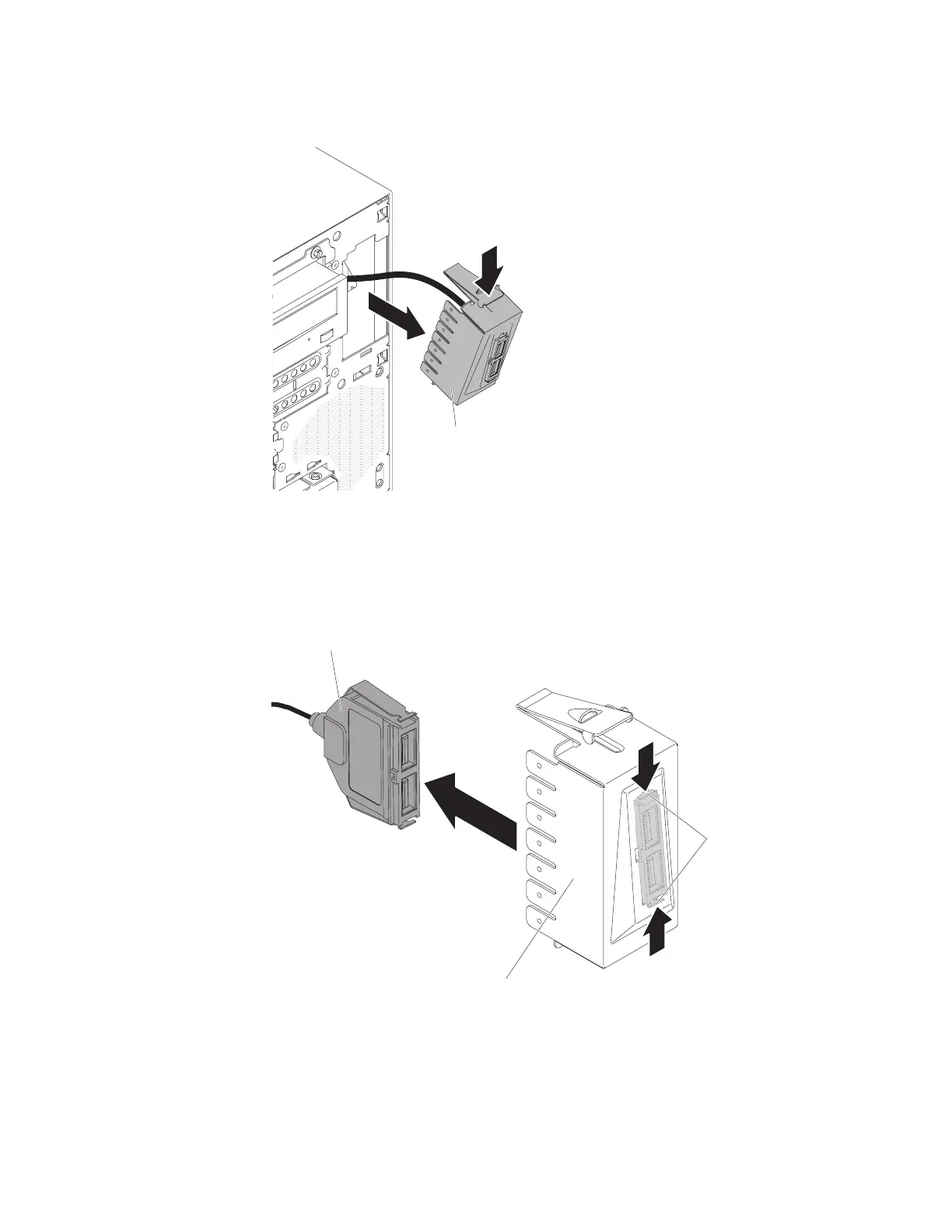

Figure 166. Front USB connector assembly removal for 5U server model with hot-swap
power supplies (1)
Spring clips
Front USB connector
assembly
Front USB housing
Figure 167. Front USB connector assembly removal for 5U server model with hot-swap
power supplies (2)
