CAUTION:
When replacing the lithium battery, use only IBM Part Number 33F8354 or an
equivalent type battery recommended by the manufacturer. If your system has
a module containing a lithium battery, replace it only with the same module
type made by the same manufacturer. The battery contains lithium and can
explode if not properly used, handled, or disposed of.
Do not:
– Throw or immerse into water
– Heat to more than 100°C (212°F)
– Repair or disassemble
Dispose of the battery as required by local ordinances or regulations.
To remove the battery on the 4U server model with non-hot-swap power supplies,
complete the following steps. For the 5U server model with hot-swap power
supplies, please see the next sub-section.
1. Read the safety information in “Safety” on page vii and “Installation
guidelines” on page 35.
2. Turn off the server and all attached devices; then, disconnect all power cords
and external cables.
3. Carefully turn the server on its side so that it is lying flat, with the cover facing
up.
Attention: Do not allow the server to fall over.
4. Remove the side cover (see “Removing the side cover” on page 38).
5. Remove the air baffle (see “Removing the air baffle” on page 39).
6. Locate the battery on the system board (see “System-board internal connectors”
on page 30).
7. Remove the battery:
a. Use one finger to tilt the battery horizontally out of its socket, pushing it
away from the socket.
b. Lift and remove the battery from the socket.
To remove the battery on the 5U server model with hot-swap power supplies,
complete the following steps. For 4U server models with non-hot-swap power
supplies, please see the above sub-section.
1. Read the safety information in “Safety” on page vii and “Installation
guidelines” on page 35.

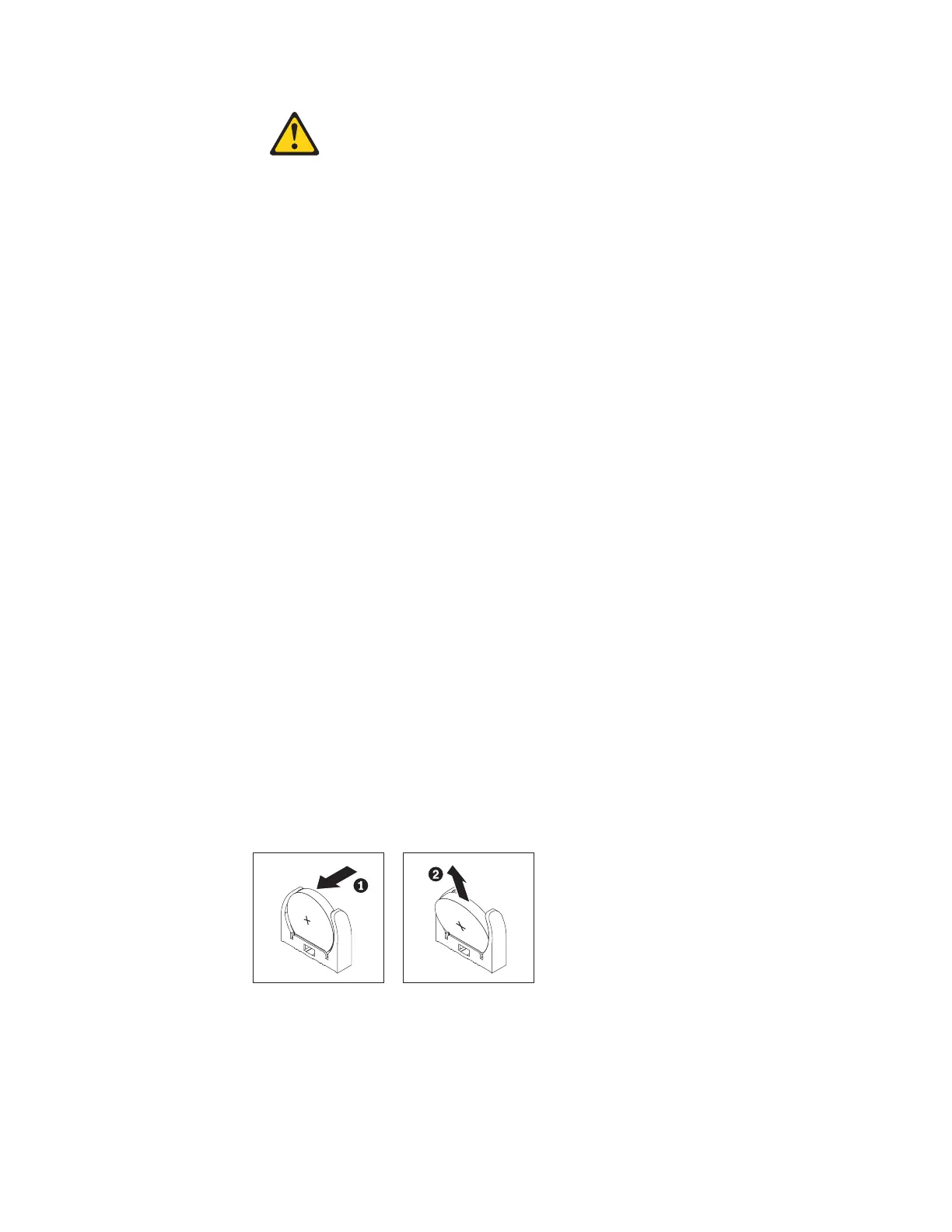

Figure 192. System battery removal for 4U server model with non-hot-swap power supplies
280 System x3100 M5 Type 5457: Installation and Service Guide
