CAUTION:
When replacing the lithium battery, use only IBM Part Number 33F8354 or an
equivalent type battery recommended by the manufacturer. If your system has a
module containing a lithium battery, replace it only with the same module type
made by the same manufacturer. The battery contains lithium and can explode if
not properly used, handled, or disposed of.
Do not:
v Throw or immerse into water
v Heat to more than 100°C (212°F)
v Repair or disassemble
Dispose of the battery as required by local ordinances or regulations.
To install the replacement battery on the 4U server model with non-hot-swap
power supplies, complete the following steps. For the 5U server model with
hot-swap power supplies, please see the next sub-section.
1. Read the safety information in “Safety” on page vii and “Installation
guidelines” on page 35.
2. Follow any special handling and installation instructions that come with the
replacement battery.
3. Insert the battery:
a. Hold the battery in a vertical orientation so that the smaller side is facing
the socket.
b. Tilt the battery and slide the battery into its socket; then, press the battery
toward the socket until it clicks into place. Make sure that the battery clip
holds the battery securely.
4. Install the air baffle (see “Replacing the air baffle” on page 185).
5. Install the side cover (see “Replacing the side cover” on page 182).
6. Stand the server back up in its vertical position.
7. Reconnect the external cables and power cords; then, turn on the attached
devices and turn on the server.
8. Start the Configuration/Setup Utility program and reset the configuration:
v Set the system date and time.
v Set the power-on password.
v Reconfigure the server.
See “Setup utility menu choices” on page 99 for details.
Positive (+) side

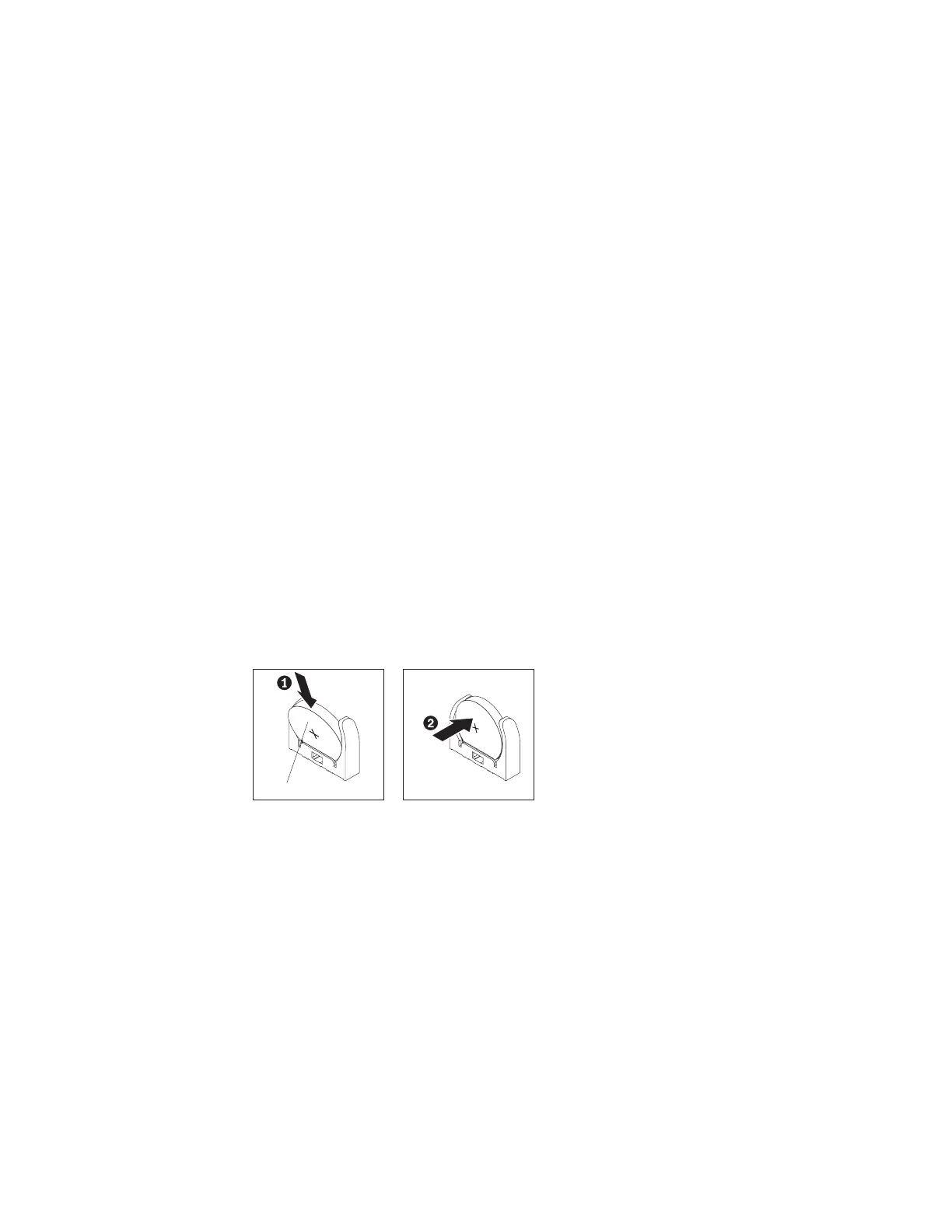

Figure 194. System battery installation for 4U server model with non-hot-swap power supplies
282 System x3100 M5 Type 5457: Installation and Service Guide
