8. Remove the thermal sensor board by pulling apart the securing clips of the
thermal sensor board holder.
9. If you are instructed to return the thermal solution fan kit, follow all packaging
instructions, and use any packaging materials for shipping that are supplied to
you.
Thermal sensor
connector
Cable clips

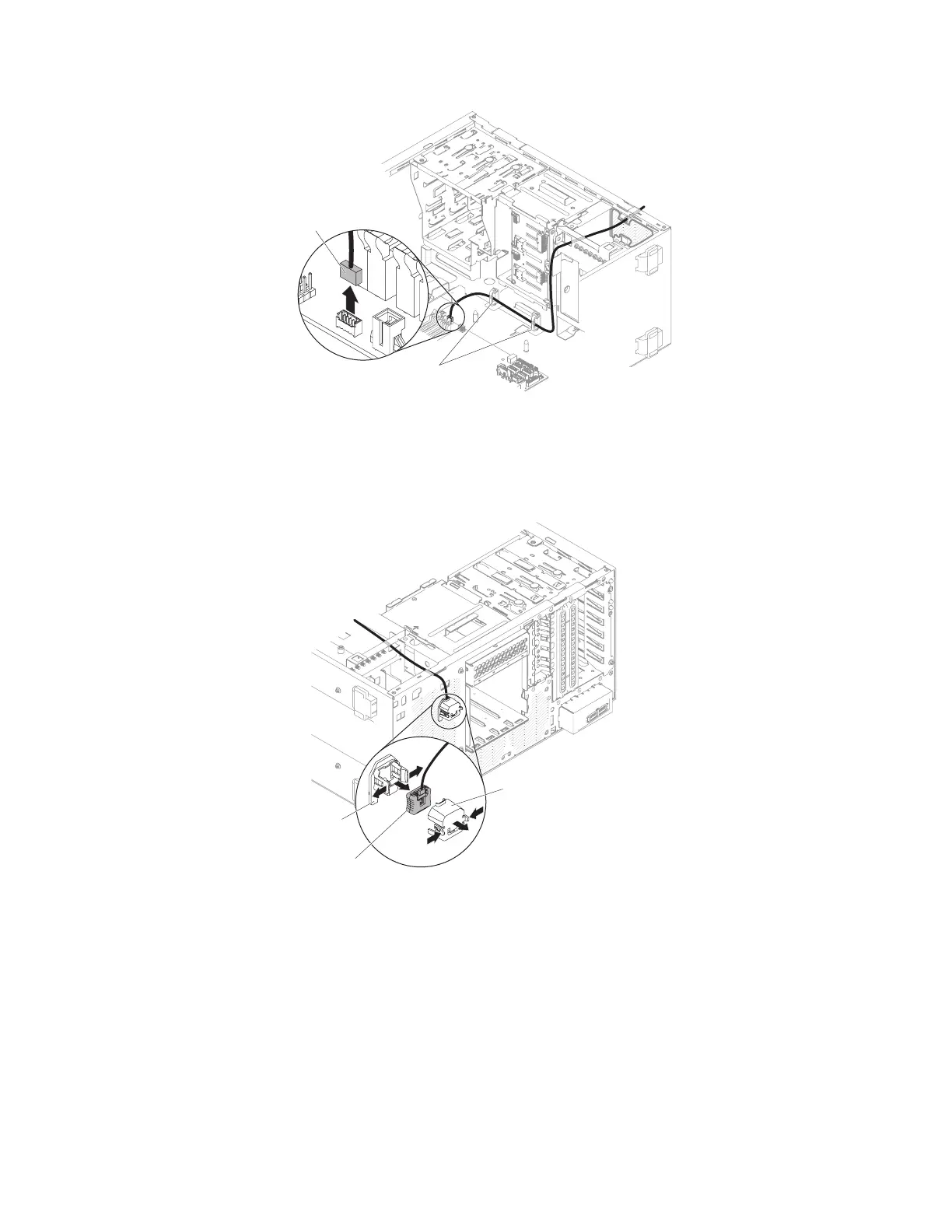

Figure 205. Thermal sensor connector removal from system board for 5U server model with
hot-swap power supplies
Thermal sensor
board
Thermal sensor
holder
Thermal sensor
cover
Figure 206. Thermal sensor board removal for 5U server model with hot-swap power supplies
292 System x3100 M5 Type 5457: Installation and Service Guide

IBM x3100 M5 Type 5457 Specifications

General

Memory	Up to 32 GB
Form Factor	Tower
Chipset	Intel C222
Processor	Intel Xeon E3-1200 v3 series, Intel Core i3 series, Intel Pentium series
Memory Type	DDR3 ECC
Memory Slots	4 DIMM slots
RAID Support	RAID 0, 1, 10
Network	Dual Gigabit Ethernet
Storage Bays	4 x 3.5-inch
Operating System Support	Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
Expansion Slots	1 PCIe 3.0 x8
