Important: Be careful when you handle the microprocessor and heat sink.
If the microprocessor and heat sink will be reused, do not contaminate the
thermal material between them.
Attention: The microprocessor retention latch is spring-loaded when the
microprocessor is in place. Releasing the latch too quickly or allowing it to
spring upward can damage the microprocessor and surrounding components.
7. Release the microprocessor retention latch by pressing down on the end,
moving it to the side, and slowly releasing it to the open (up) position.
Heat sink
System board

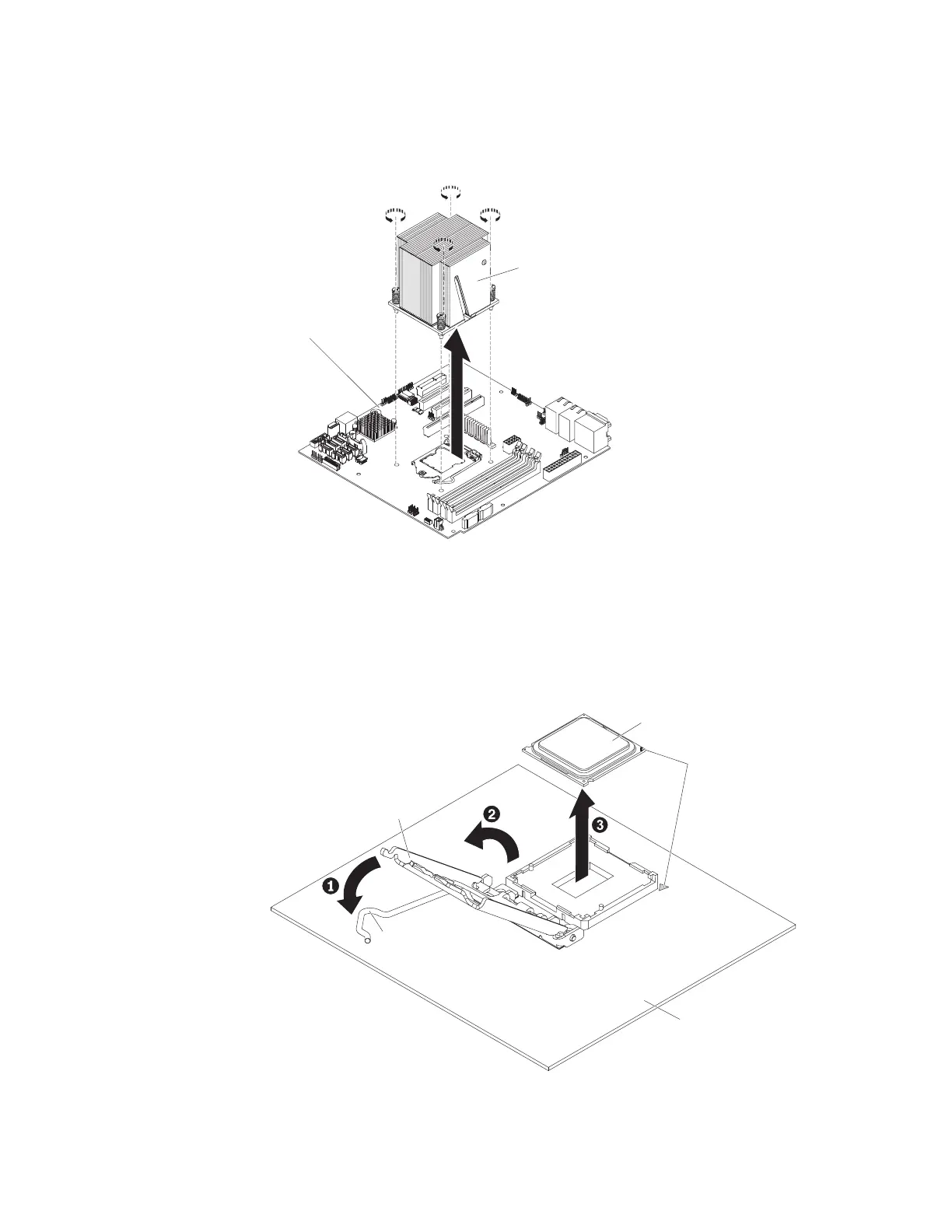

Figure 221. Heat sink removal for 5U server model with hot-swap power supplies
Microprocessor
Alignment
marks
Microprocessor
bracket frame
Microprocessor
release lever
System board
Figure 222. Microprocessor socket levers and retainer disengagement for 5U server model
with hot-swap power supplies
Chapter 6. Removing and replacing components 303
