IBM x3100 M5 Type 5457 User Manual

The following figure shows the location of the four 3.5" hot-swap hard disk drive
bays in the 5U server model with hot-swap power supplies.
The following notes describe the types of drives that the server supports and other
information that you must consider when installing a drive:
Bay 1
Bay 2
Bay 4
Bay 5
Bay 6
Bay 7
Bay 8
Bay 3
Bay 9
Bay 10

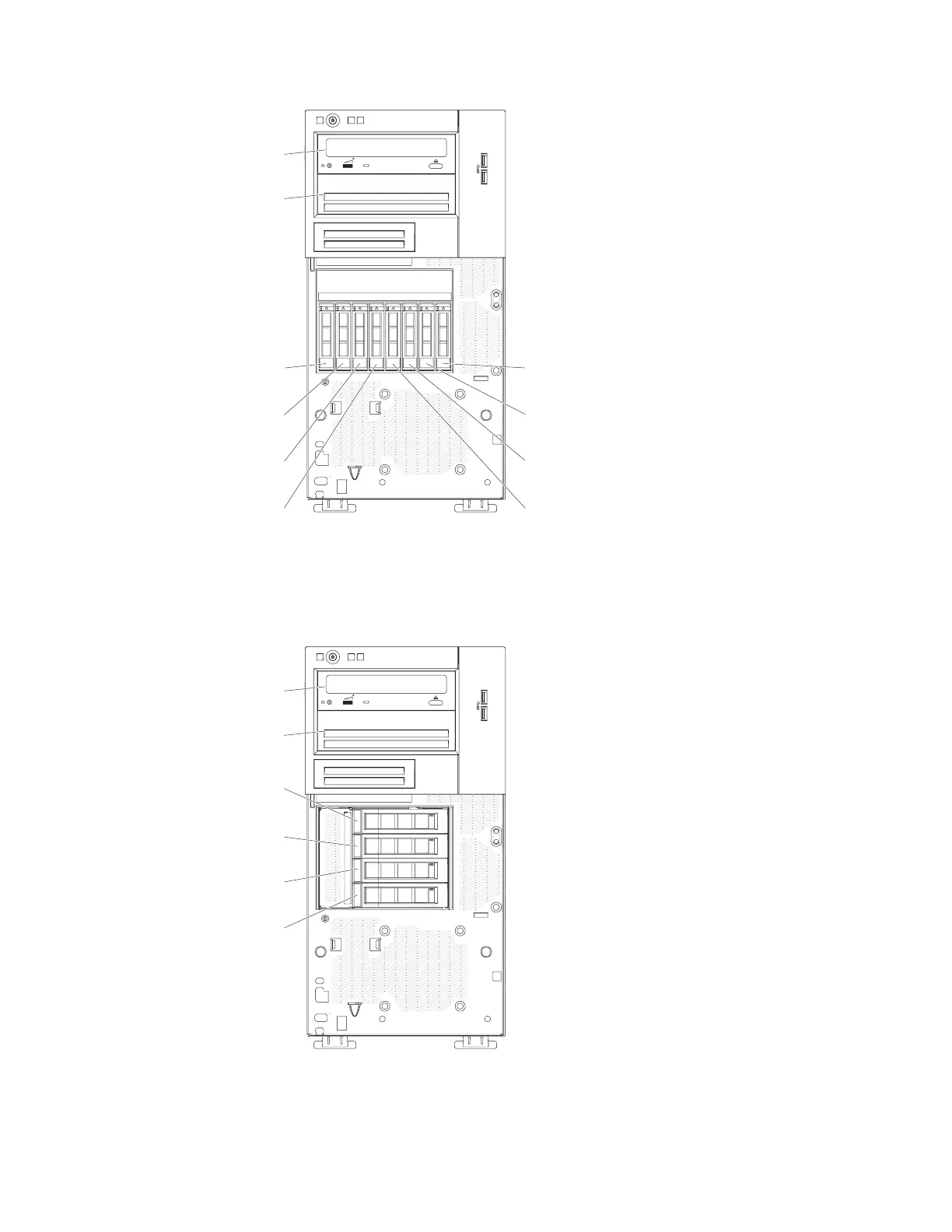

Figure 29. Location of the eight 2.5" hot-swap hard disk drive bays in the 5U server model
with hot-swap power supplies
Bay 1
Bay 2
Bay 4
Bay 5
Bay 6
Bay 3
Figure 30. Location of the four 3.5" hot-swap hard disk drive bays in the 5U server model
with hot-swap power supplies
50 System x3100 M5 Type 5457: Installation and Service Guide

IBM x3100 M5 Type 5457 Specifications

General

Memory	Up to 32 GB
Form Factor	Tower
Chipset	Intel C222
Processor	Intel Xeon E3-1200 v3 series, Intel Core i3 series, Intel Pentium series
Memory Type	DDR3 ECC
Memory Slots	4 DIMM slots
RAID Support	RAID 0, 1, 10
Network	Dual Gigabit Ethernet
Storage Bays	4 x 3.5-inch
Operating System Support	Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
Expansion Slots	1 PCIe 3.0 x8
