8. Follow the instructions that come with the drive to set jumpers or switches, if
there are any.
Note: You might find it easier to install the new drive from the front and then
attach the cables.
9. Attach the drive retainer clip that you removed from the previous drive to the
side of the new drive.
10. Push the drive into the bay.
11. Connect the power and signal cables to the drive.
Note: Route the signal cable so that it does not block the airflow to the rear of
the drives or over the microprocessor and dual inline memory modules
(DIMMs).
If you have other devices to install, do so now. Otherwise, go to “Completing the
installation” on page 82.

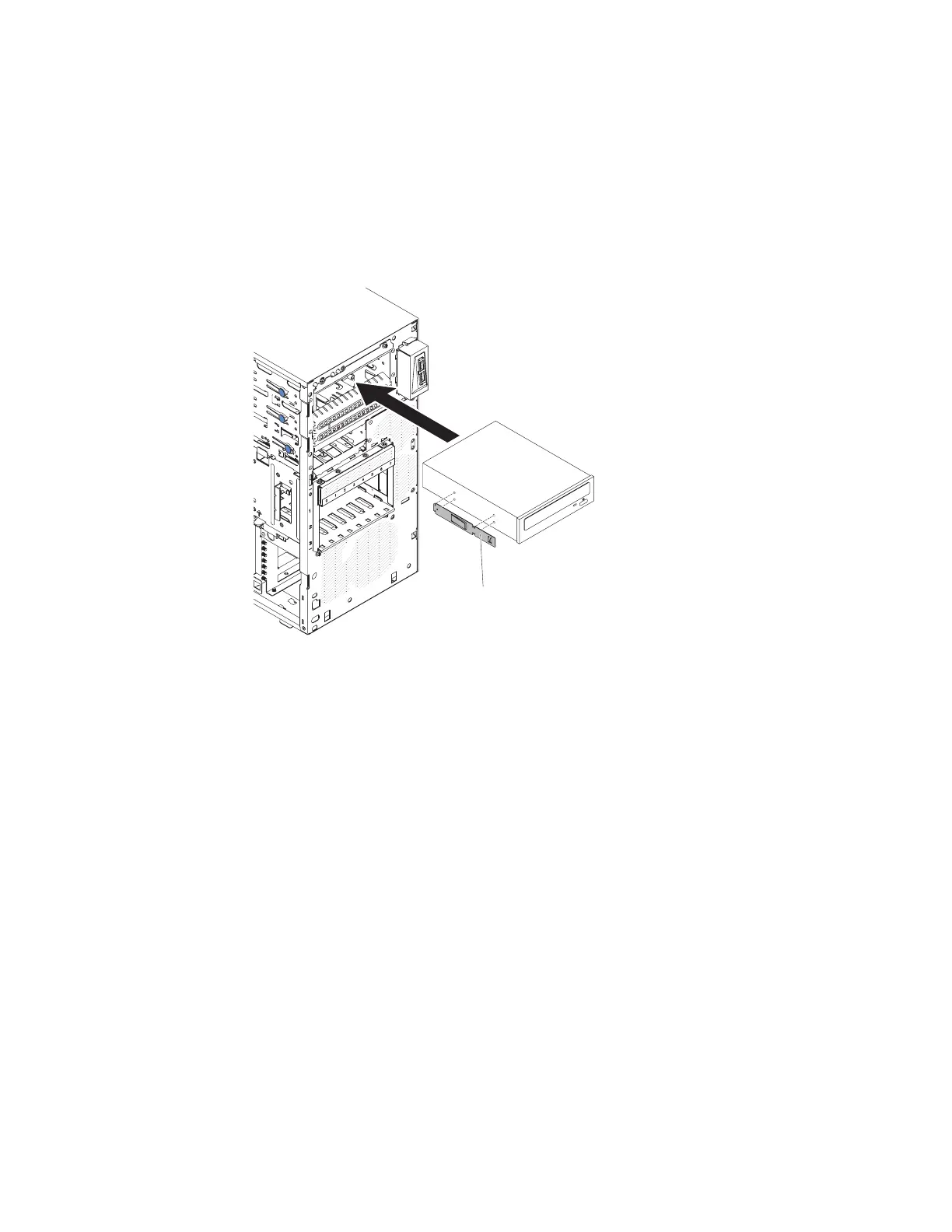

Drive retainer clip
Figure 32. DVD drive installation for 5U server model with hot-swap power supplies
54 System x3100 M5 Type 5457: Installation and Service Guide
