8. Remove the filler from the drive cage, if any is present.
9. Slide the drive retainer clip to the front to remove it from the drive cage of
bay 2; then, snap the drive retainer clip into the screw holes on the side of the
drive.
10. Push the drive into the bay.
11. Connect one end of the applicable signal cable into the rear of the drive and
make sure that the other end of this cable is connected into the applicable
connector on the system board.
12. Route the signal cable so that it does not block the airflow to the rear of the
drives or over the microprocessor and dual inline memory modules (DIMMs).

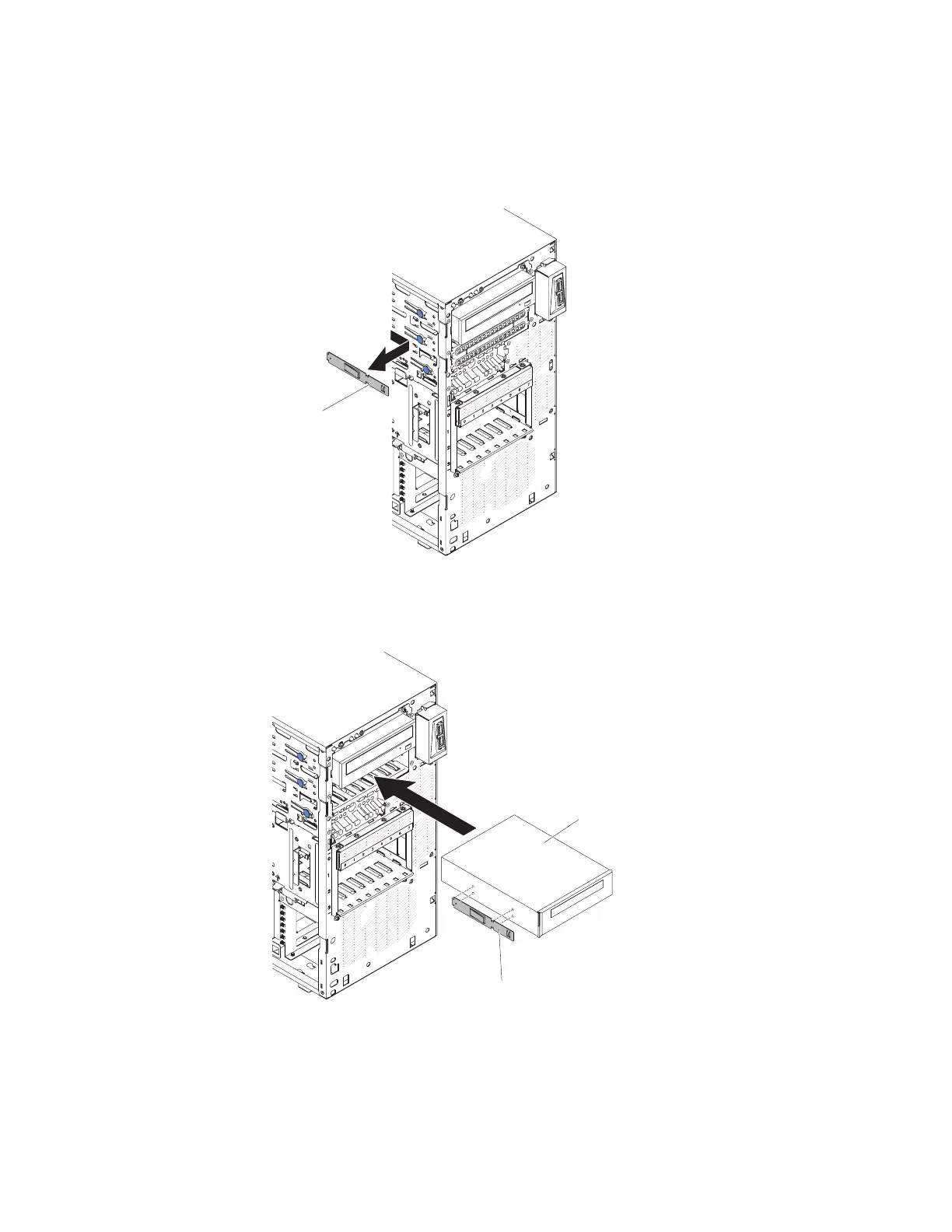

Drive retainer clip
Figure 34. Drive retainer clip installation for 5U server model with hot-swap power supplies
Drive retainer clip
Tape drive
Figure 35. Tape drive installation for 5U server model with hot-swap power supplies
Chapter 2. Installing optional devices 57
