1-8
1
PANEL DESCRIPTION
!9 AF CONTROL [AF] (inner control; p. 3-11)
Adjusts the audio output level from the speaker.
Audio output
decreases
Audio output
increases
@0 HEADPHONE JACK [PHONES]
Accepts headphones with 8–16 Ω impedance.
• Output power: 5 mW with an 8 Ω load.
• When headphones are connected, the speaker audio is
disabled.
@1 MICROPHONE CONNECTOR [MIC]
Accepts the supplied or optional microphones.
• See page 1-17 for appropriate microphones and micro-
phone connector information.

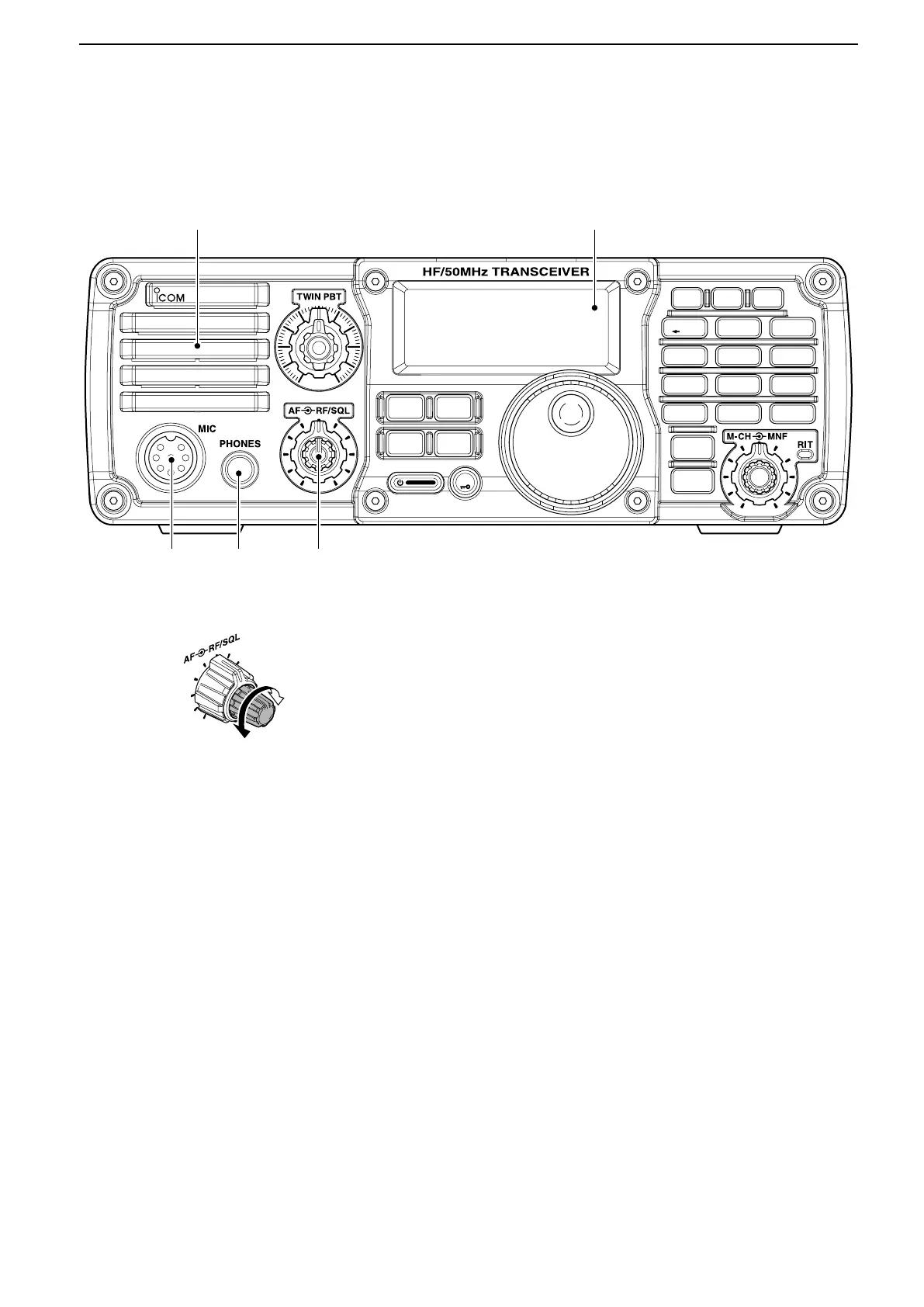

Front panel (Continued) ■
i7200
MODE
TUNER
TS
FILTER
SPCH
V/M
A/B
SPLIT
M-CL
SCAN
SET
ATT
P
.
AMP
COMP
VOX
MNF
RIT
1
23
456
7
8
0
50
28
1814
10
21
24
=
7
3.51.8
F-INP
M-CH/RIT
ENT
BAND
GENE
9
.
AGC
MW
ANF
METER
NRNB
Speaker
Function
Display (p. 1-12)
@1 !9@0
To Next Page
