3-11
3
BASIC OPERATION

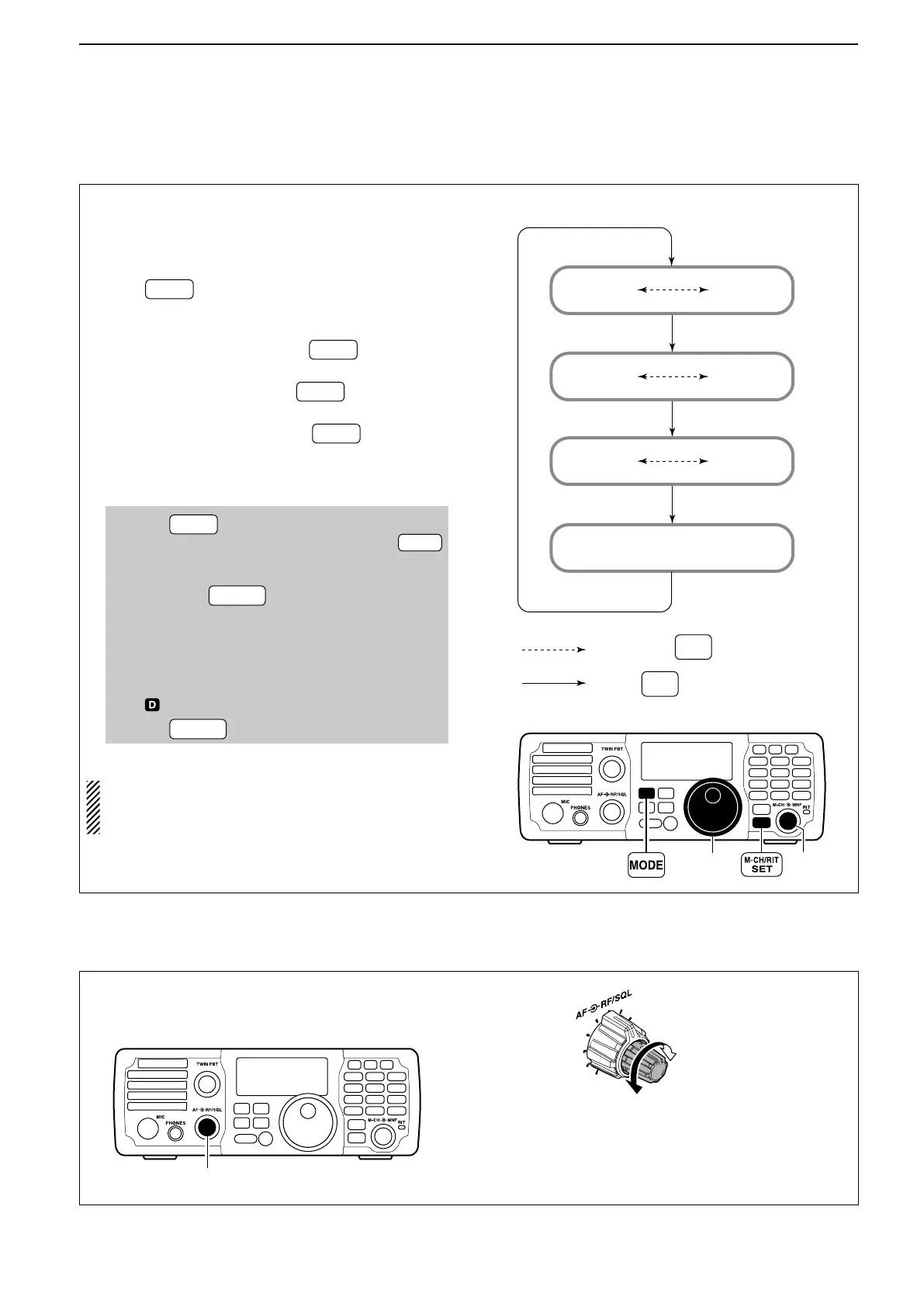

The following modes are selectable in the IC-7200:
SSB (USB/LSB), SSB data (USB data/LSB data),
CW, CW-R (CW Reverse), RTTY, RTTY-R (RTTY Re-
verse), AM and AM data modes.
Push ➥
MODE
one or more times to select the de-
sired operation mode.
• The selected mode icon is displayed on the display.
In the SSB mode, hold down ➥
MODE
for 1 second
to toggle between USB and LSB.
In the CW mode, hold down ➥
MODE
for 1 second to
toggle between CW and CW Reverse.
In the RTTY mode, hold down ➥
MODE
for 1 second
to toggle between RTTY and RTTY Reverse.
SSB data (USB data/LSB data) or AM data mode ➥
can be selected in the Quick Set mode.
NOTE: If a desired operating mode cannot be se-
lected, it may be disabled in the Set mode.
(p. 10-16)
■ Selecting the operating mode
q Push
MODE
to select the SSB or AM mode.
• After the SSB mode is selected, hold down
MODE
for 1 second to toggle between the USB and LSB
modes.
w Hold down
M-CH/RIT
SET
for 1 second to enter the
Quick Set mode.
e Rotate [M-CH] to select “DATA” to set the data
mode.
r Rotate [DIAL] to turn the data mode ON or
OFF.
• “ ” appears when the data mode is turned ON.
t Push
M-CH/RIT
SET
to exit the Quick Set mode.
Hold down for 1 second
MODE
AM
Push
MODE
CW CW-R
USB LSB
RTTY-RRTTY
OPERATING MODE SELECTION
■ Adjusting the audio volume
Rotate the [AF] control clockwise to increase the au-
dio output level; counterclockwise to decrease it.
• Set a suitable audio level.
Audio output
decreases
Audio output
increases
