Icom IC-7200

1-15
1

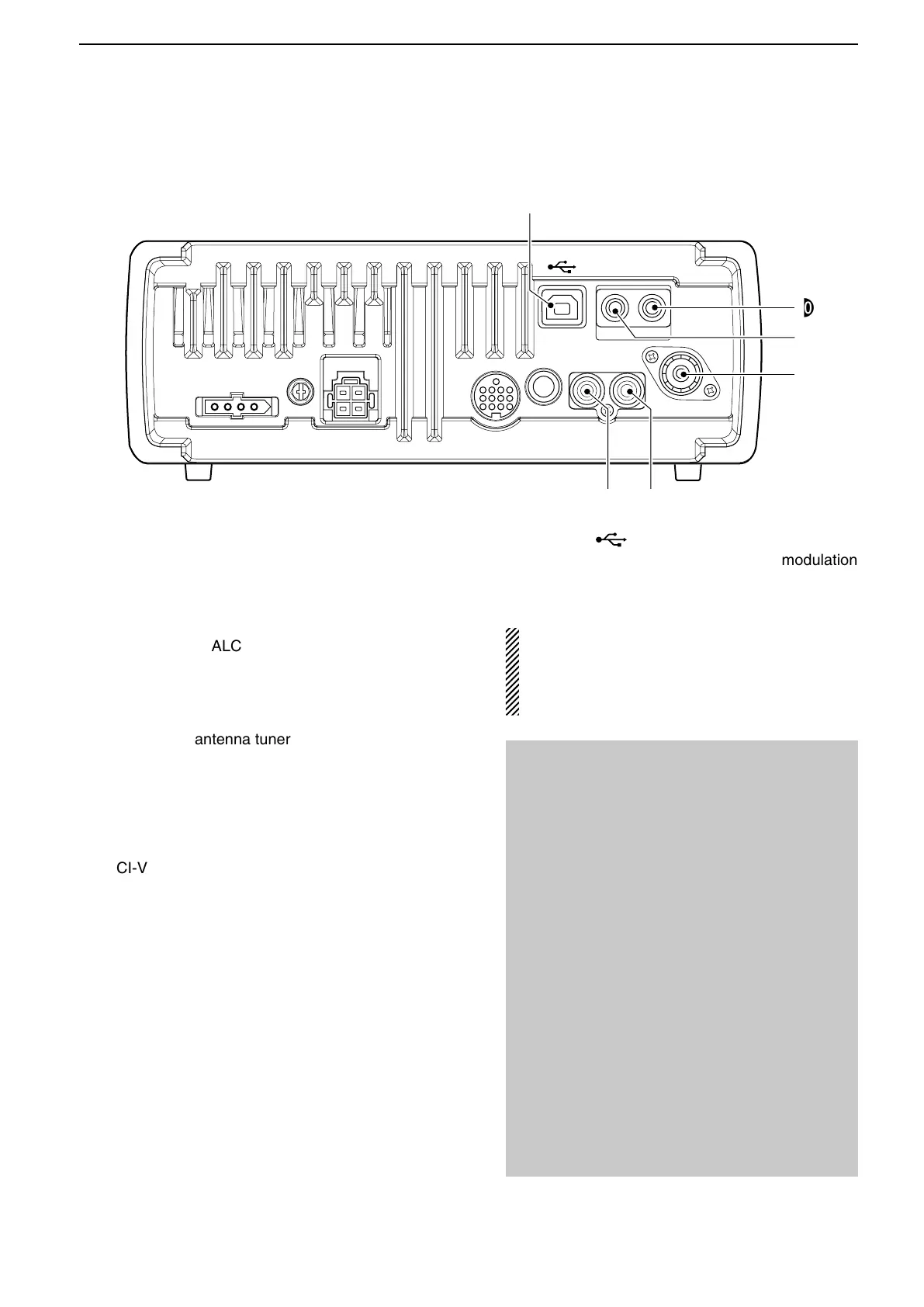

PANEL DESCRIPTION
DC 13.8VACC
KEYSENDALC ANT
REMOTEEXT SP
GNDTUNER
!1
!0
o
i
uy
y SEND CONTROL JACK [SEND] (p. 2-7)
Goes to ground while transmitting to control exter-
nal equipment such as a linear amplifier.
• Maximum control level: 16 V DC/0.5 A
u ALC INPUT JACK [ALC] (p. 2-7)
Connects to the ALC output jack of a non-Icom lin-
ear amplifier.
i ANTENNA CONNECTOR [ANT] (p. 2-3)
Accepts a PL-259 connector and a 50 Ω coaxial
cable from an antenna tuner or an antenna.
o CI-V REMOTE CONTROL JACK [REMOTE]
(pp. 2-4, 11-2)
Designed for use with a PC for remote control of ➥
the transceiver functions.
Used for transceiver operation with another Icom ➥
CI-V transceiver or receiver.
!0 EXTERNAL SPEAKER JACK [EXT SP]
(p. 2-4)
Connects a 4–8 ø external speaker.
• When an external speaker is connected, the internal
speaker is disabled.
!1 USB JACK [ ]
Connects a USB cable for transceiver modulation
input (p. 2-9), the transceiver operation with a PC,
and the received audio sent to the PC.
CAUTION:
The USB driver must be installed. Please read
the USB driver installation guide before installing
the USB driver into your PC that is connected to
the IC-7200 with the USB cable (third party).
Rear panel (Continued) ■
About the USB driver:
The USB driver and the installation guide can be
downloaded from our website.
http://www.icom.co.jp/world/ ➥
The following items are required:
PC
• Microsoft
®
Windows
®
7/XP*/2000 or
Microsoft
®
Windows Vista
®
installed
* The USB driver is not supported for Microsoft
®
Windows
®
XP (64 bit).
• With USB port
Other items
• USB cable (third party’s)
• PC software
About the modulation input:
Select “U” (USB) in the Set mode item ‘Modulation
input (Data OFF)’ or ‘Modulation input (Data ON)’.
And the modulation input level from USB jack can
be set in the Set mode item ‘USB Level.’ (p. 10-11,
10-12)
