Chapter 7
Cable Testing Fundamentals
7-13

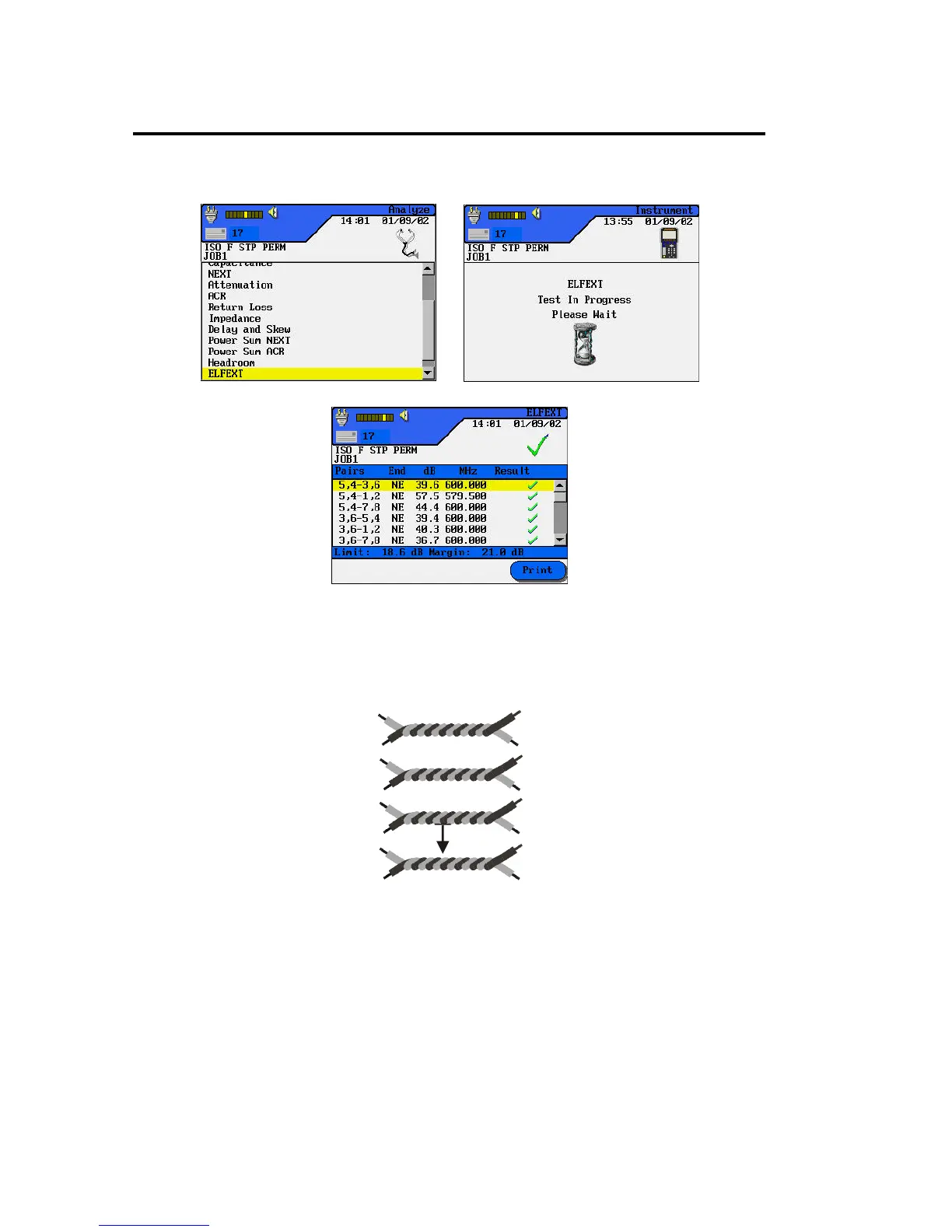

ELFEXT Test Screens
NEXT, FEXT, and ELFEXT
The NEXT test measures cross-talk from a transmitting pair to an adjacent pair in
the same cable sheath. NEXT is measured at the both the DH and the RH.
1
2
3
6
4
5
7
8
2
1
3
6
4
5
7
8
Effect of
Adjacent Pair
