Chapter 7
Cable Testing Fundamentals
7-20

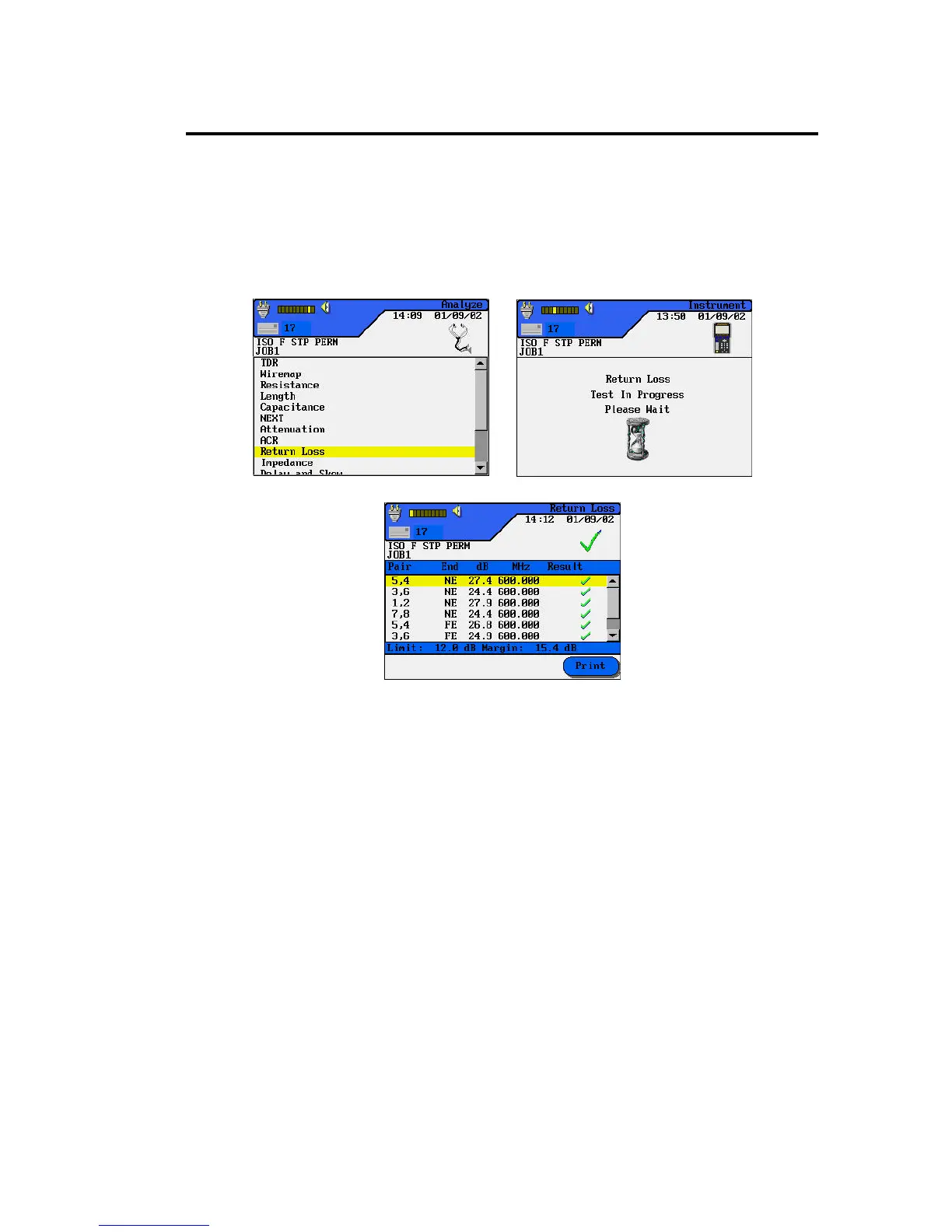

Return Loss Test
This test measures the ratio of reflected to transmitted signal strength. Good
quality cable runs will have little reflected signal, indicating good impedance
matches in the run’s various components.
Note: The RH is required to perform this test.
