Chapter 3
Calibration, Configuration, and Special Operations
3-7
Performing a Channel Link Test
1. Insert one end of a patchcord into the adapter’s jack at both the Near-End
and the Far-End.
2. Insert the other end into the Channel Link’s jack at both the Near-End and
the Far-End.
3. Select the appropriate Channel Link Test.
4. Start the Autotest Function.
Warning Screens
In response to a change in parameter(s), failure, harmful condition, or operational
limitation, the tester will display a warning screen. This screen advises you of the
activity or request you are or will be engaged in. The screen will prompt you to
respond in a YES/NO manner.

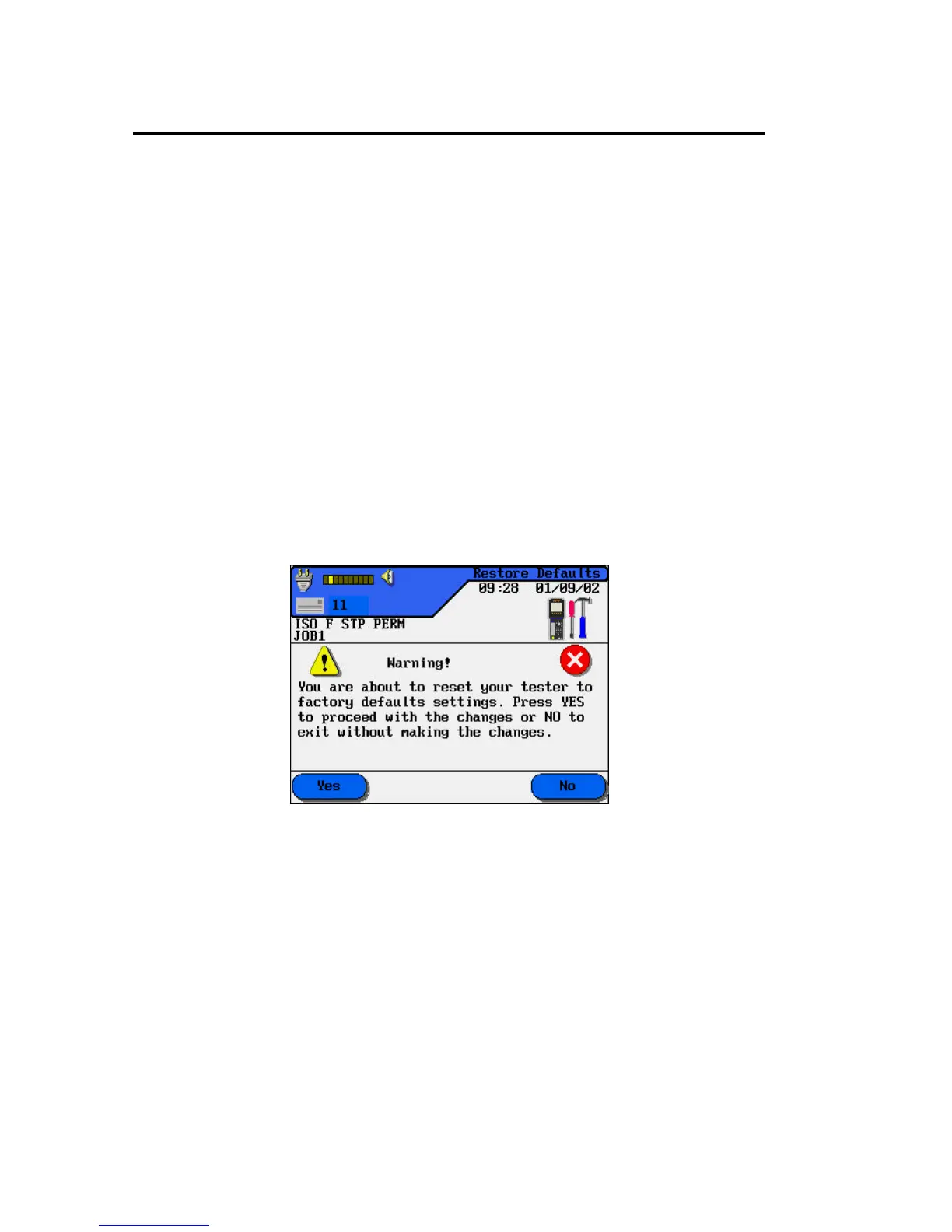

Figure 3-2: Sample Warning Screen
