IDEC MICROSmart FC6A Series Ladder Programming Manual

12: D ISPLAY I NSTRUCTIONS
12-4 FC6A S ERIES MICROS MART L ADDER P ROGRAMMING M ANUAL FC9Y-B1726

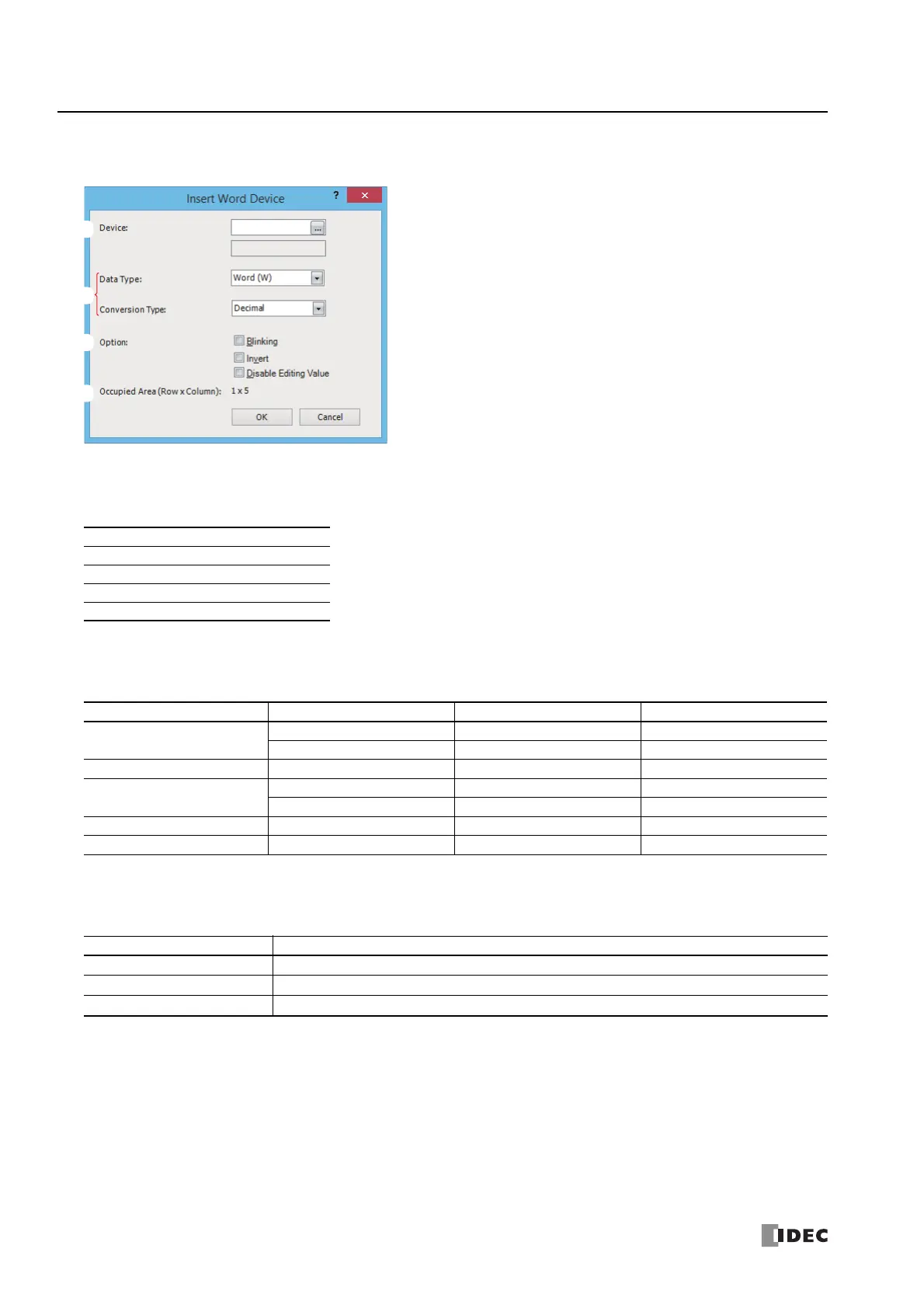

Insert Word Device
The value of the specified word device can be displayed on the HMI module LCD.
1. Device
Enter the device to display.
Valid Devices
2. Data Type and Conversion Type
Select the display type for the specified device. The size of the area used on the LCD display varies based on the specified data
type and conversion type.
3. Option
Configure the options for the specified device to blink, invert the text, or allow/prohibit value editing. For the blinking speed, see
"MSG Instruction Common Settings" on page 12-9.
4. Occupied Area
Shows the size of the area to be used on the LCD display (rows: 1, columns: 4 to 13). The area is determined by the selected
data type and conversion type.
W (word) TC, TP, CC, CP, D
I (integer) D
D (double word) CC, CP, D
L (long) D
F (float) D
Data Type Conversion Type Occupied Area Example on LCD
W (word)
Decimal 5 65535
Hexadecimal 4 FFFF
I (integer) Decimal 6 -32768
D (double word)
Decimal 10 4294967295
Hexadecimal 8 FFFFFFFF
L (long) Decimal 11 -2147483648
F (float) Decimal 13 1.234567E-01
Display Options Description
Blinking
Blinks the value of the specified device.
Invert
Inverts the display of the specified value.
Disable Editing Value
Prohibits editing the specified device value using the HMI module.
1.
2.
3.
4.
