IDEC MICROSmart FC6A Series Ladder Programming Manual

18: P ULSE O UTPUT I NSTRUCTIONS
18-28 FC6A S ERIES MICROS MART L ADDER P ROGRAMMING M ANUAL FC9Y-B1726

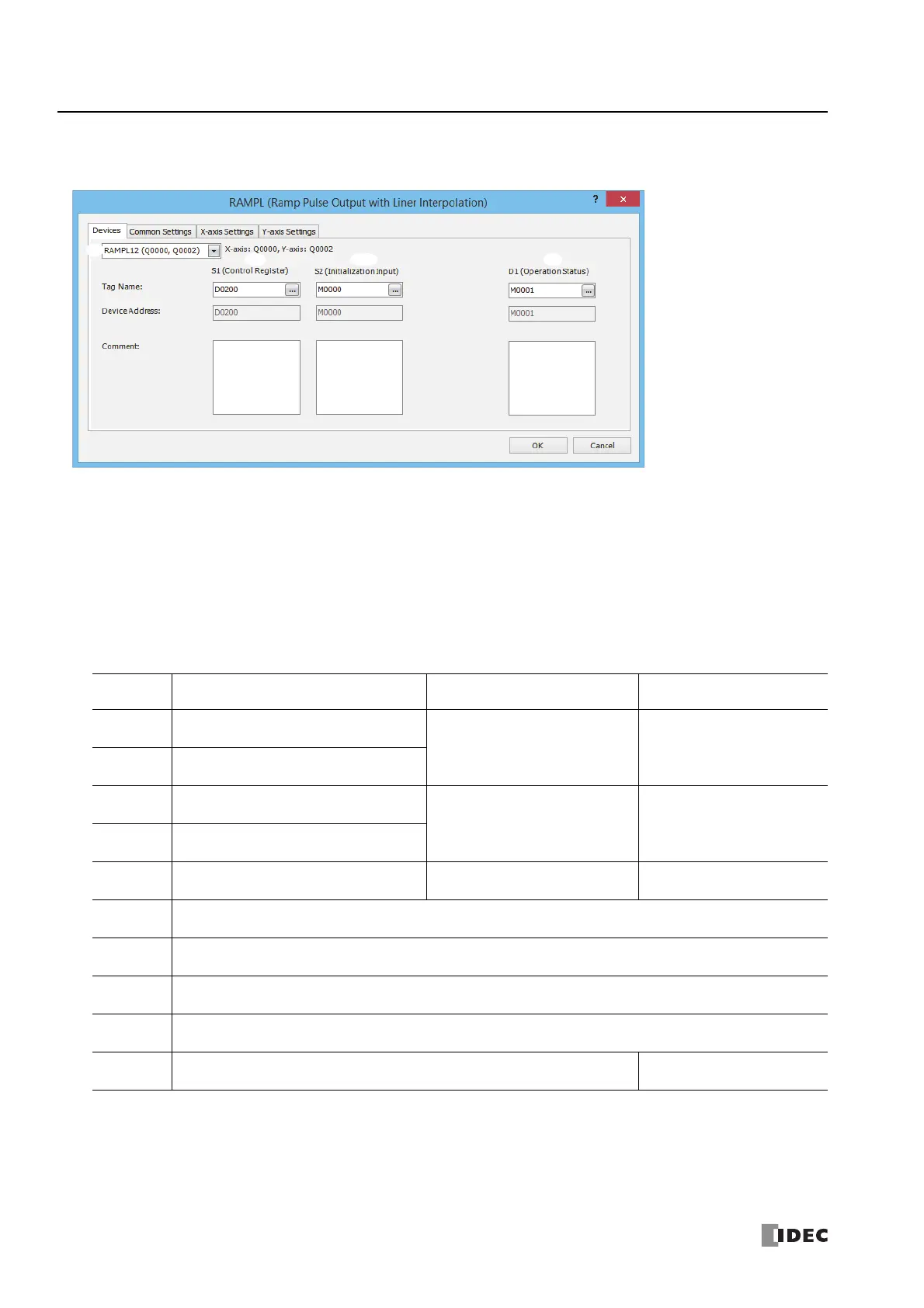

Settings
■ Device tab
(1) Select instruction
Selects the RAMPL instruction to use from RAMPL12, RAMPL13, RAMPL14, RAMPL23, RAMPL24, and RAMPL34.
The combination of pulse outputs will depend on the instruction.
For details, see "(11) Reversible control" on page 18-32.
(2) S1 (source 1): Control register
S1 specifies the first data register of the data registers to use with the RAMPL12, RAMPL13, RAMPL14, RAMPL23, RAMPL24,
or RAMPL34 instruction.
Starting from the first data register, 30 continuous words of data registers are used. Specify the first data register so that the
device range is not exceeded.
Storage
Destination
Function Setting Reference
Starting
number+0
Combined steady pulse frequency (high word)
*1
15 to 100,000 (increments of 1 Hz)
"(5) Combined steady pulse
frequency" on page 18-30
Starting
number+1
Combined steady pulse frequency (low word)
*1
Starting
number+2
Combined initial pulse frequency (high word)
*1
15 to 100,000 (increments of 1 Hz)
"(6) Combined initial pulse
frequency" on page 18-30
Starting
number+3
Combined initial pulse frequency (low word)
*1
Starting
number+4
Frequency change time 10 to 10,000 (ms)
"(7) Frequency change time" on
page 18-30
Starting
number+5
— Reserved —
Starting
number+6
— Reserved —
Starting
number+7
— Reserved —
Starting
number+8
— Reserved —
Starting
number+9
Error status "(8) Error status" on page 18-31
(1
(2) (3) (4)
(1)
