25: D ATA L OG I NSTRUCTIONS
25-20 FC6A S ERIES MICROS MART L ADDER P ROGRAMMING M ANUAL FC9Y-B1726

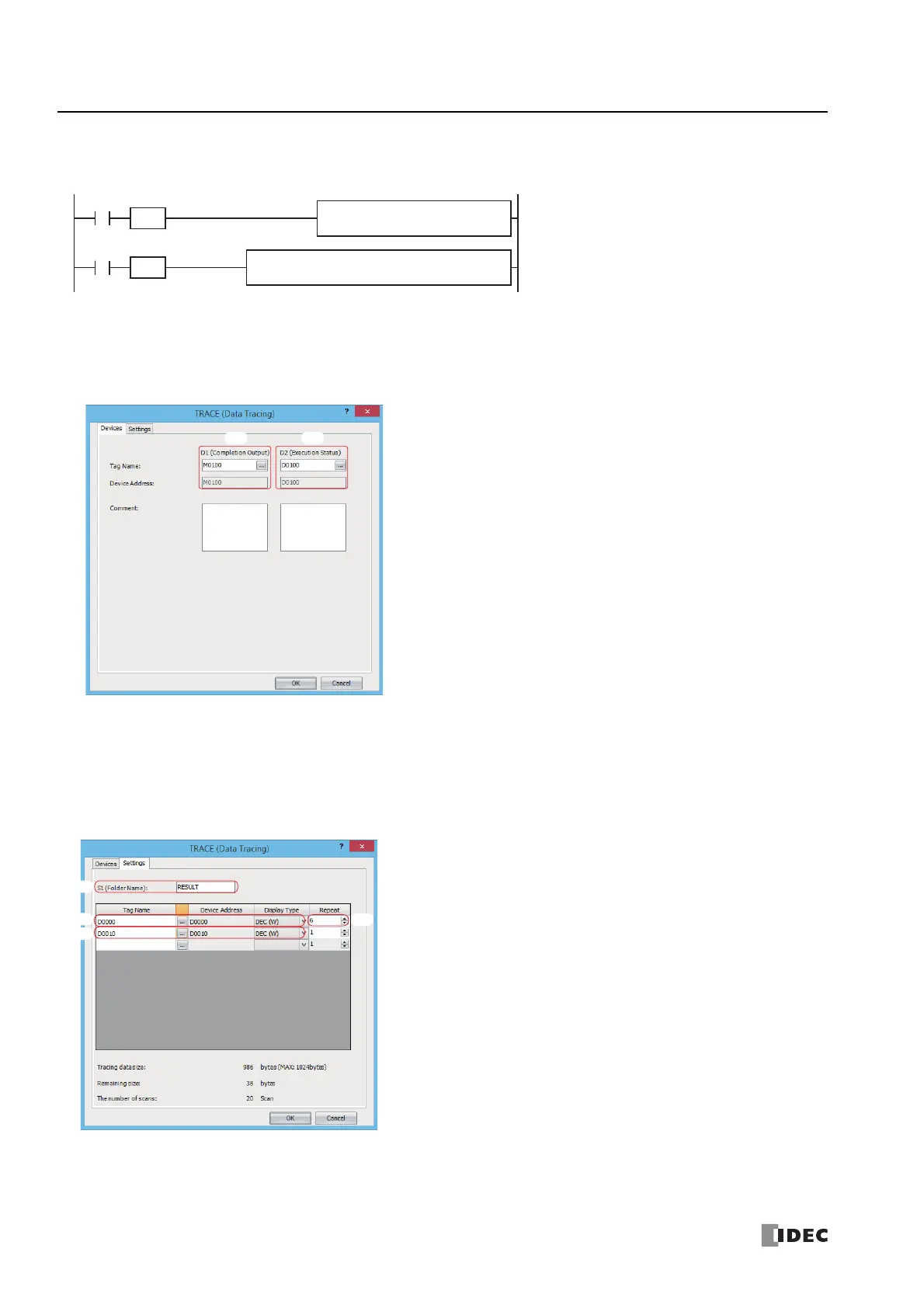

• Configuration Procedure
1. Create the ladder program.
2. Configure the TRACE instruction.
Configure the Devices tab.
(1) Designate M0100 as D1 (Completion Output).
(2) Designate D0100 as D2 (Execution Status).
Configure the Settings tab.
(3) Enter "RESULT" in S1 (Folder Name).
(4) Configure D0000 to output the decimal value of D0000 to the CSV files with the data type W (word).
(5) Set the repeat to 6 to output the values of D0000 through D0005 to the CSV files.
(6) Configure D0010 to output the value of D0010 to the CSV files with the data type F (float).
The configuration is now completed.
D1
M100
S1
RESULT
TRACE D2
D100
M0
M100
REPD1 -
Q0
S2 -
0
CMP
<> (W) S1 -
D100
SOTU
SOTU
(1) (2)
(3)
(4)
(6)
(5)
