27: F LOW C ALCULATION I NSTRUCTIONS
27-16 FC6A S ERIES MICROS MART L ADDER P ROGRAMMING M ANUAL FC9Y-B1726

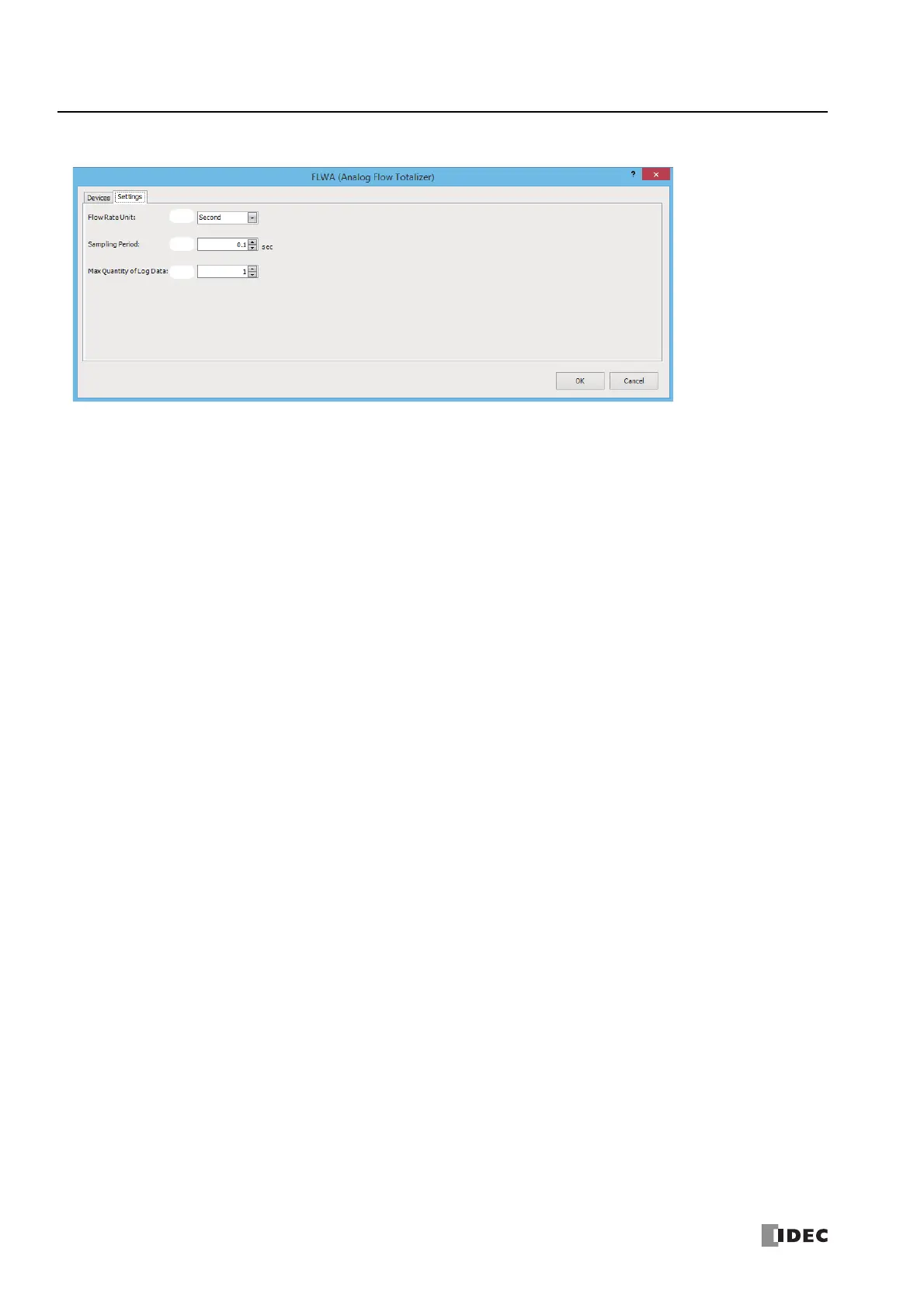

■ Settings tab
(1) Flow Rate Unit
Select the time unit for flow rate that will be stored in the flow rate (S1+0, S1+1) from the following.
"Second", "Minute", "Hour", "Days"
(2) Sampling Period
Specifies the time interval to sample the flow rate in 0.1 s increments.
The range is 0.1 to 6,553.5.
(3) Max Quantity of Log Data
Species the maximum amount of logged data that can be recorded.
The number of data registers that are used for the logged data (D2) changes according to the maximum amount of logged
data.
The number of data registers used for logged data (D2) is 2+6×the maximum amount of logged data.
The range is 1 to 35.
(1)
(2)
(3)
