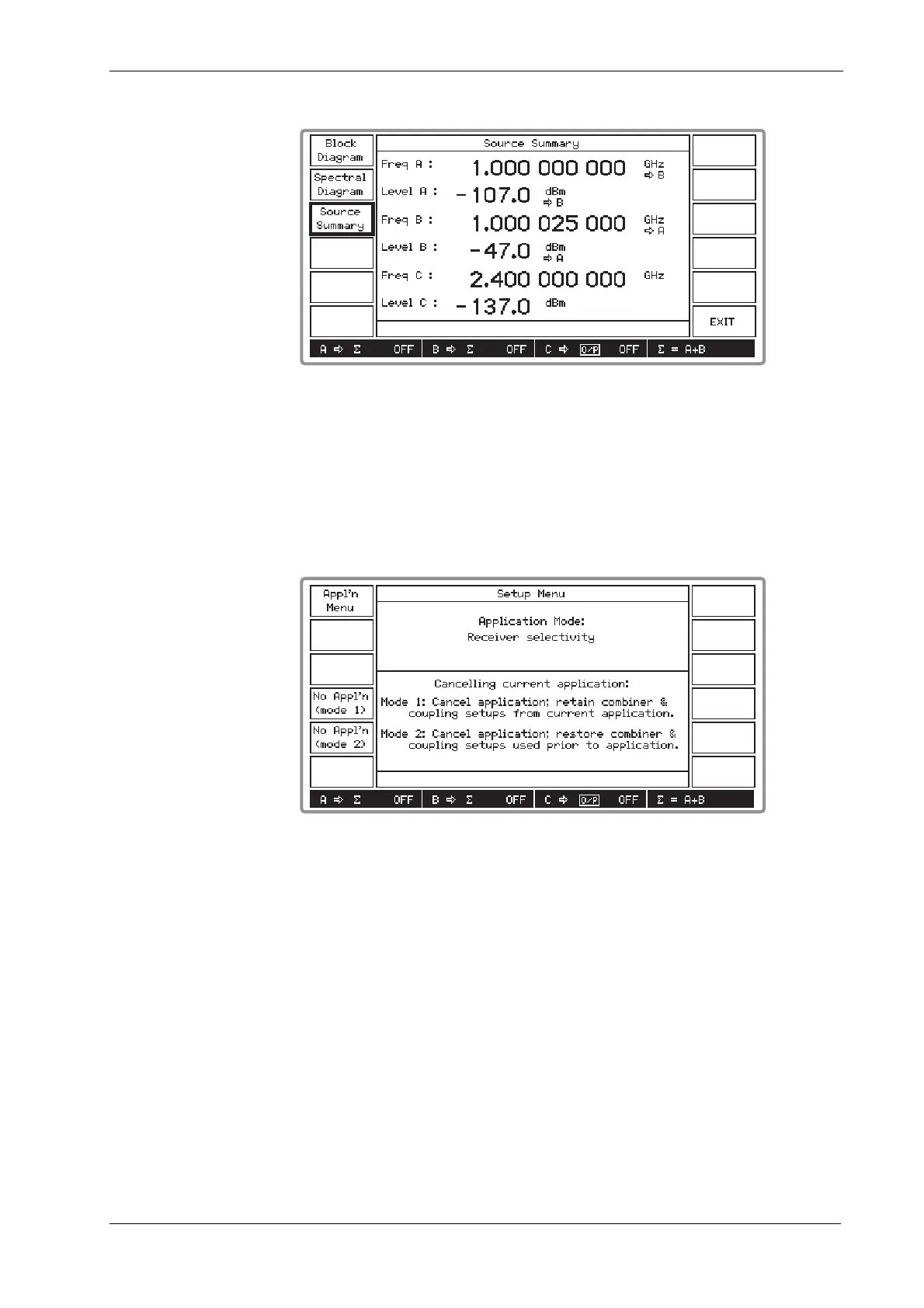

Fig. 4-25 Receiver selectivity: source summary
(18) At the conclusion of the test, press [EXIT] to return to the previous screen to continue with
the application.
(19) To choose another application or to cancel the current application and return to normal
operation, press [SETUP]. This causes the Setup Menu shown in Fig. 4-26 below to be
displayed. The screen is split horizontally in two, with the upper part displaying the
application mode and the lower part displaying the application cancellation selection.
B3410
Fig. 4-26 Setup menu in application mode
(20) To choose another application press [Appl’n Menu] which returns you to the Applications
Selection Menu.
(21) To cancel the current operation but retain the combiner and coupling setups, press [No
Appl’n (mode 1)]. To cancel the current operation but restore to the previous combiner and
coupling setups press [No Appl’n (mode 2)]. Pressing either key returns you to the Setup
Menu with no application selected, as confirmed by the screen.
To Next Page
