INDIVIDUAL SOURCE OPERATION
46882/439 3-21
Internal waveform selection
Having selected an internal modulation mode, you can select the type of waveform as follows:
(1) Press [SIG GEN] to show the Sig Gen menu.
(2) Press [Select Waveform] to display the Internal Source Waveform Menu. This shows the
currently selected modulation and waveform (see Fig. 3-13 below).
B3419

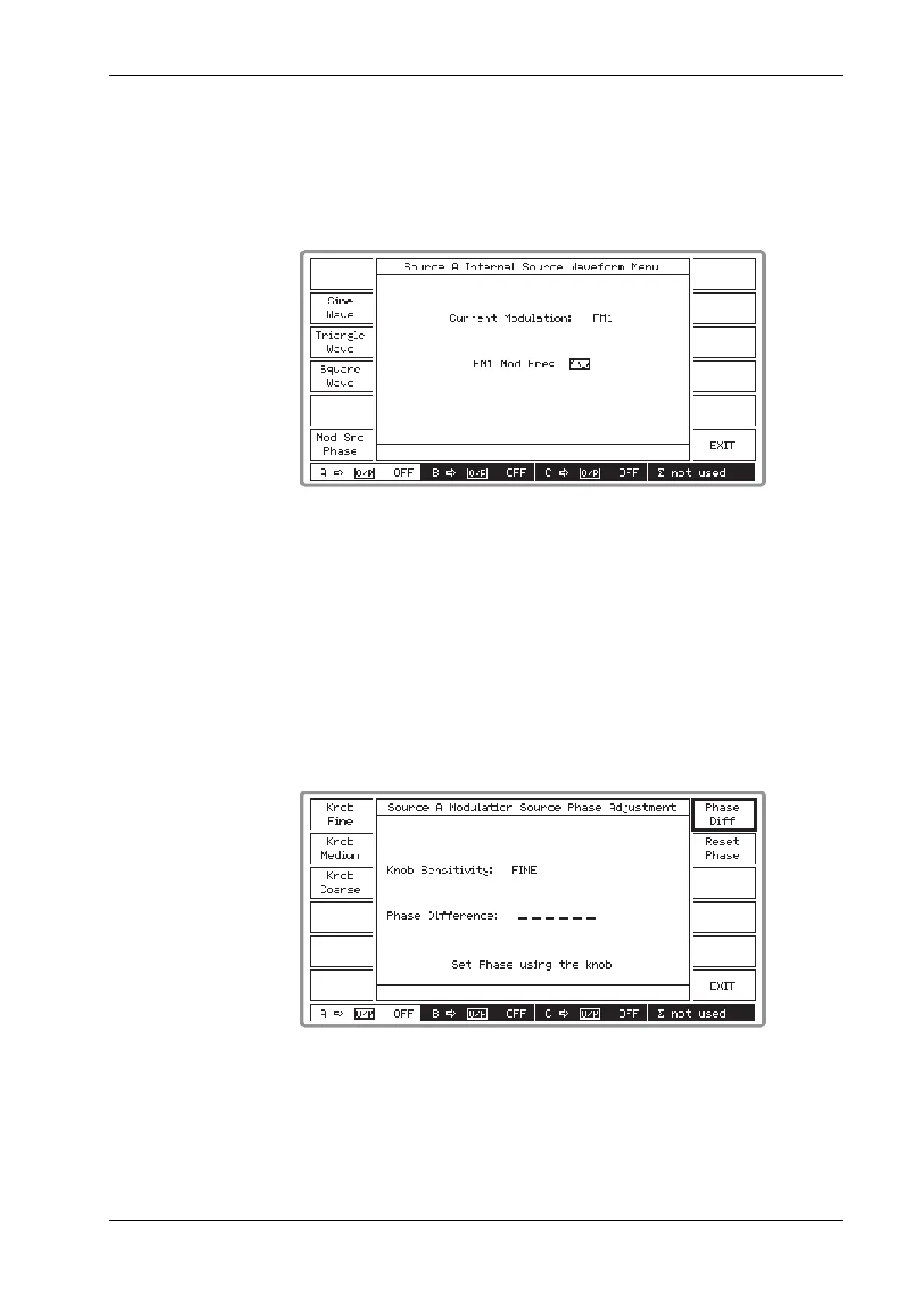

Fig. 3-13 Internal source waveform menu
(3) Select between [Sine Wave], [Triangle Wave] and [Square Wave]. The waveform on the
screen changes to show your new waveform selection.
(4) Press [EXIT] to return to the Sig Gen menu.
Modulation source adjustment
You can adjust the phase difference of modulation oscillator channel 2 relative to channel 1 in
degrees as follows:
(5) Press the [Mod Src Phase] key to display the Modulation Source Phase Adjustment menu
shown in Fig. 3-14 below. This shows the currently selected phase difference setting for the
selected signal source.
B3418
Fig. 3-14 Modulation source phase adjustment menu
(6) Select the required adjustment control by pressing [Knob Fine], [Knob Medium] or [Knob
Coarse]. These provide adjustments in steps of 0.1°, 1.0° and 3.0° respectively.
