IFR 2026 User Manual

LOCAL OPERATION
3-36 46882/439
Table 3-1 Instrument default settings
Source selected Source A
Carrier frequency :
Step :
(Maximum available) 2.4 GHz
1 kHz
RF level
Step :
−137 dBm
1 dB Status: ON
Modulation mode Internal FM, modulation disabled
Modulations : FM1 : Deviation: 0 Hz, OFF
: Internal source, frequency: 1 kHz, sine
FM2 : Deviation: 0 Hz, OFF
: Internal source, frequency: 400 Hz, sine
ΦM1 : Deviation: 0 rad, OFF
: Internal source, frequency: 1 kHz, sine
ΦM2 : Deviation: 0 rad, OFF
: Internal source, frequency: 400 Hz, sine
AM1 : Deviation: 0%, OFF
: Internal source, frequency: 1 kHz, sine
AM2 : Deviation: 0%, OFF
: Internal source, frequency: 400 Hz, sine
Pulse : OFF
:
Modulation steps :
ΔFM 1 kHz, ΔΦΜ 0.1 rad, ΔΑΜ 1%
Mod frequency steps : 10 Hz
Carrier sweep
Freq mode :
Mode :
Ext trigger :
Start :
Stop :
Step size :
Time :
Fixed
Single sweep
Off
10 kHz
(Maximum available)
1 kHz
50 ms
Modulation mode selection (menu 1)
Modulation mode is selected by pressing [Mod’n Mode] to display the Modulation Mode Selection
Menu shown in Fig. 3-28 below. Using the menu is explained under ‘Modulation mode selection’
above.
B3460

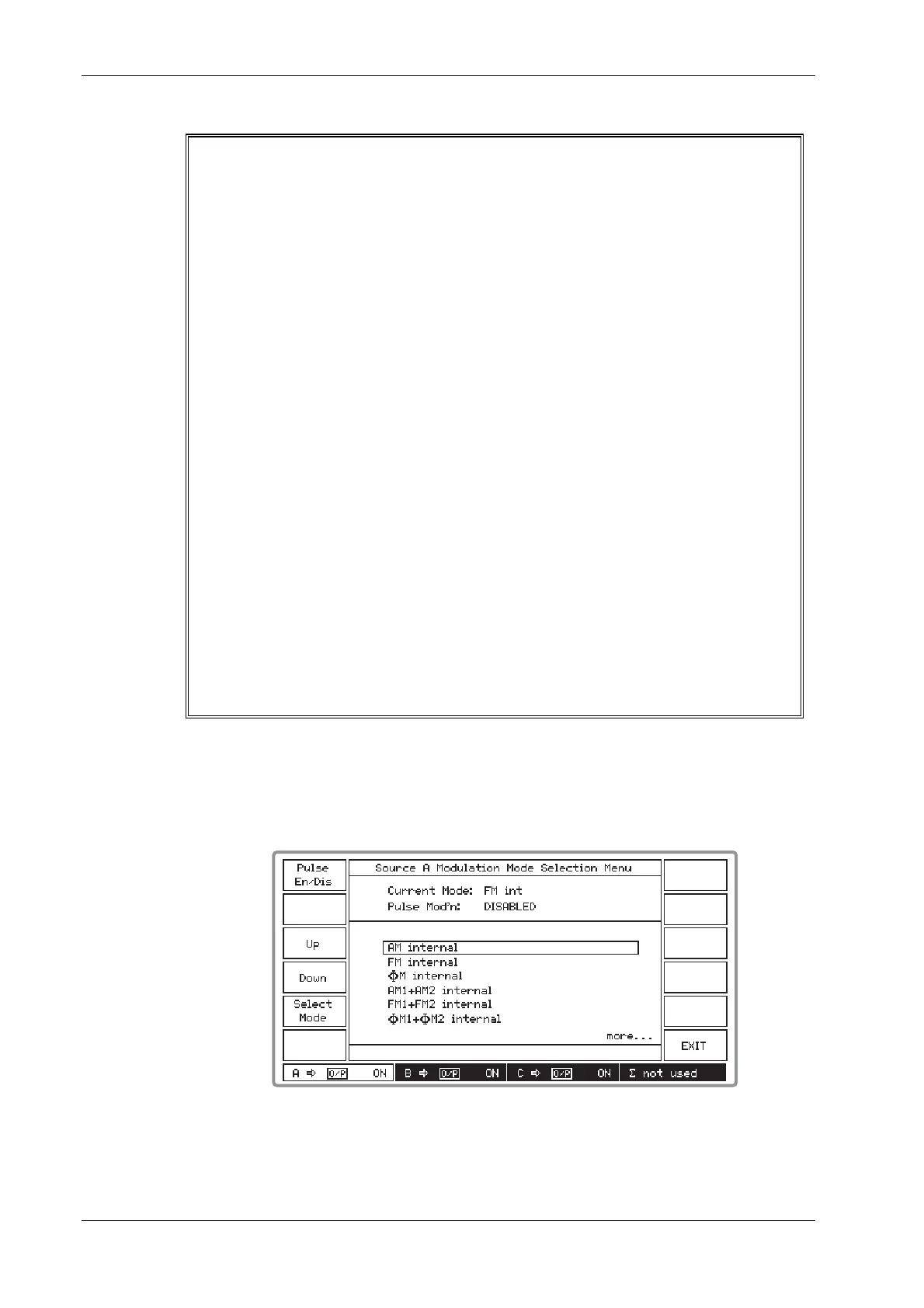

Fig. 3-28 Modulation mode selection menu
