TEST PROCEDURES
46882/439 7-29
Test procedure

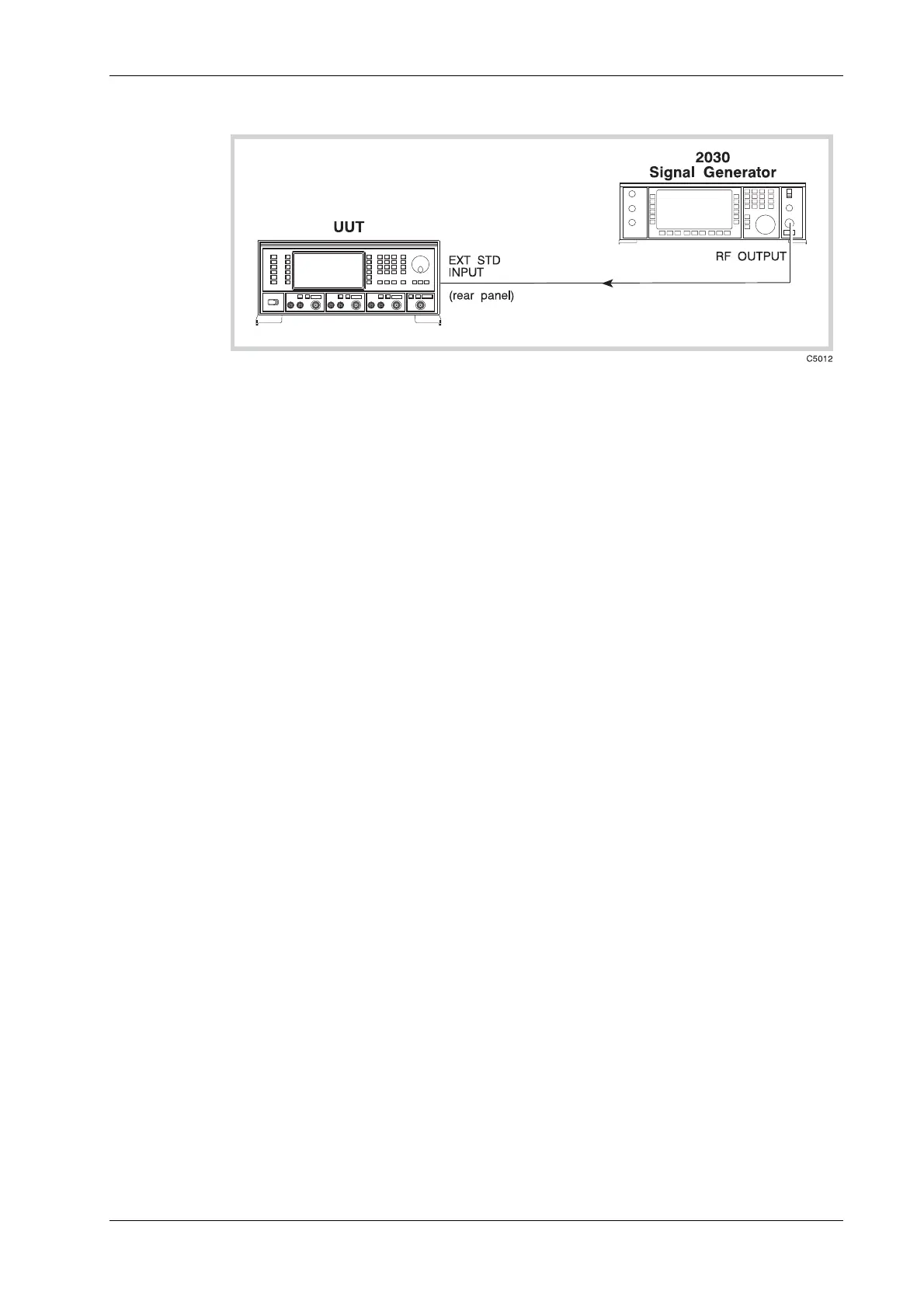

Fig. 7-17 External standard test set-up
(1) Connect the test equipment as shown in Fig. 7-17.
(2) On the UUT set source A to:
[UTIL]
[Freq Standard]
[1MHz Ext Ind]
(3) Set the signal generator to RF level 220 mV EMF, carrier frequency 1 MHz.
(4) Using Table 7-51, check that no external standard error messages are displayed on the
UUT.
(5)
Set the signal generator to 1.8 V EMF and repeat (4).
(6) On the UUT select [10MHz Ext Ind].
(7) Set the signal generator to carrier frequency 10 MHz and repeat (4).
(8) Set the signal generator to 220 mV and repeat (4).
