137
HDK-99 1803 VER1 (E)

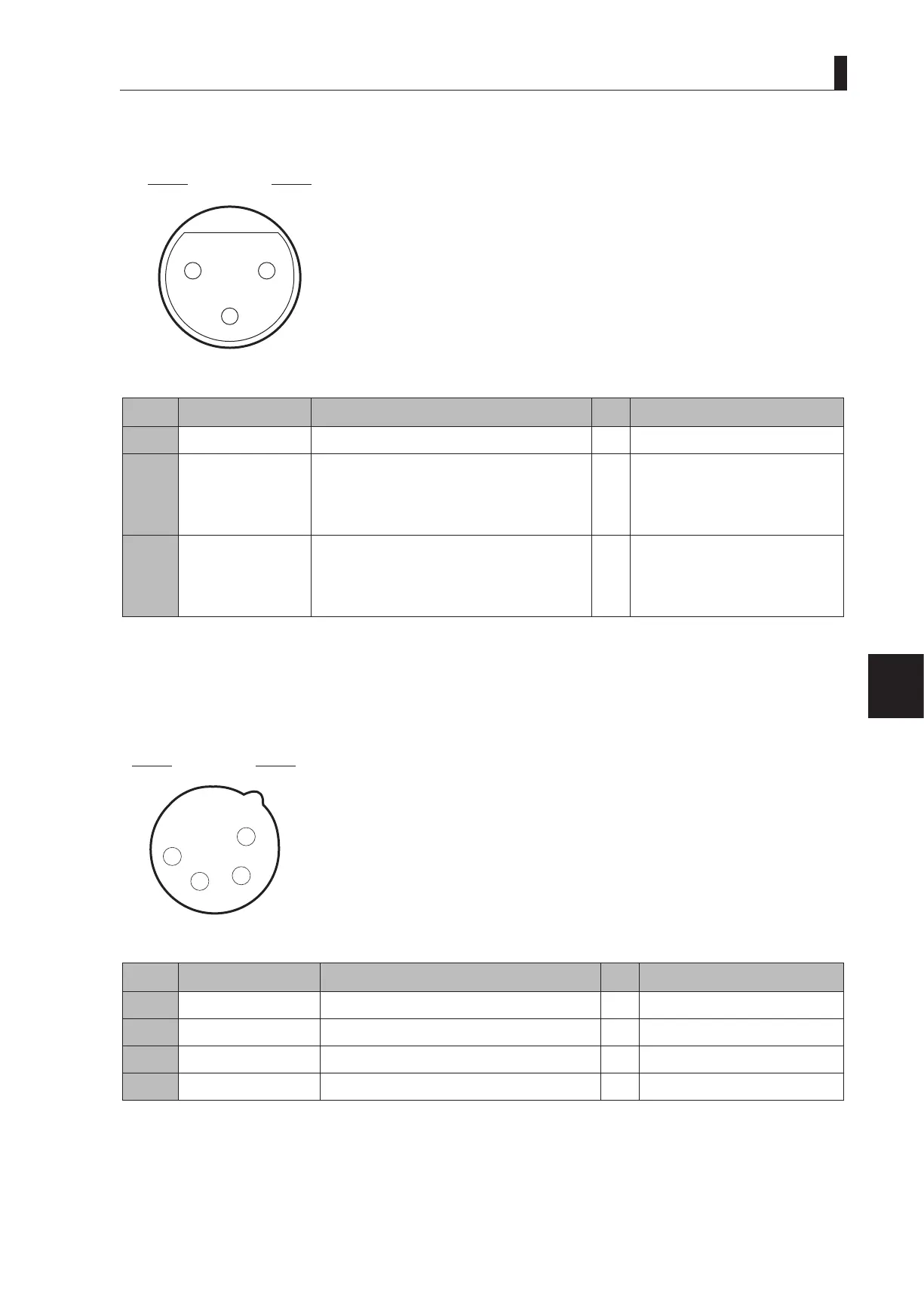

7.3 External Connections
7
SPECIFICATIONS
■
MIC-1 Connector and MIC-2 Connector
Used to connect for input to a microphone. (600Ω balanced input)
3
12
Insertion Side
Receptacle
Camera head side : HA16PRM-3SE (mounted on a board) (HRS)
Cable side : XLR-3-12C (3-pin male plug) or equivalent
ecafretnI lanretxEO/InoitcnuFemaN.oN niP
①
MIC (SHIELD)
MIC input shield ―
②
MIC (HOT)
MIC (HOT) line
600Ω balanced input
When AB power is supplied : DC 12V
When +48 phantom power is supplied : DC 48V
IN
③
MIC (COLD)
MIC (COLD) line
600Ω balanced input
When AB power is supplied : DC 0V
When +48 phantom power is supplied : DC 48V
IN
■
DC-IN Connector
Used to connect external power supply.
1
2
3
4
Insertion Side
Camera head side : HA16RX-4P (SW1)
Cable side : XLR-4-11C (4-pin female plug) or equivalent
Receptacle
ecafretnI lanretxEO/InoitcnuFemaN.oN niP
①
+12 V RET
NITER tupni V21+
②
NC
――――――――――――――――――――――
③
NC
――――――――――――――――――――――
④
+12 V IN
NI)V61 ot V11( tupni V21+
