136
HDK-99 1803 VER1 (E)

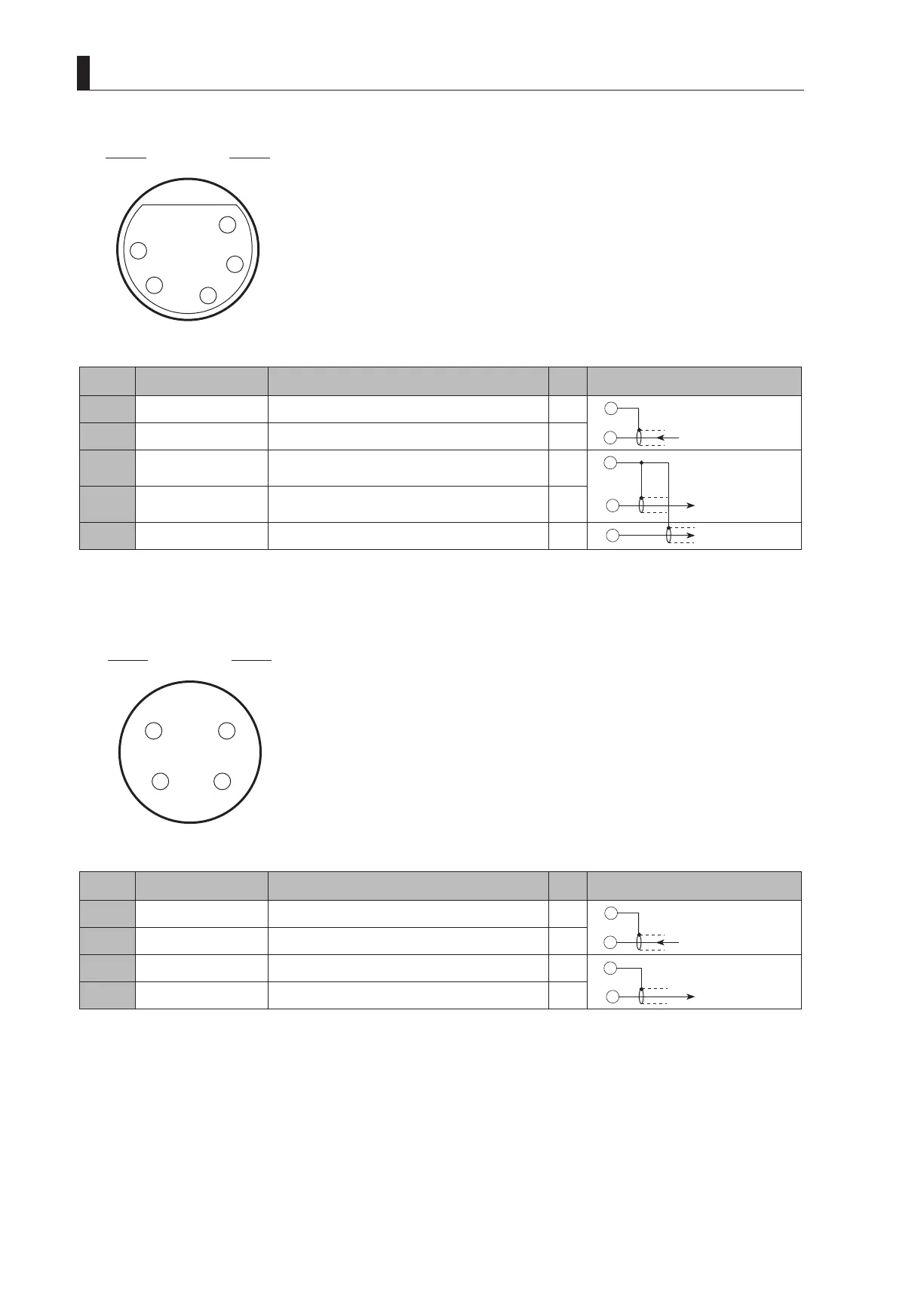

7.3 External Connections
[5-pin Type]
1
2
3
4
5
Insertion Side
Camera head side : NC5FDL-1 (Neutrik)
Cable side : XLR-5-12C (5-pin male plug) or equivalent
Receptacle
ecafretnI lanretxEO/InoitcnuFemaN.oN niP
①
TALK (C)
Shield for intercom microphone input
GND
1
2
②
TALK (H)
Intercom microphone input
IN
③
SHIELD
Shield for LISTEN L/LISTEN R output
GND
4
3
5
④
LISTEN Lch (H)
LISTEN L output
OUT
⑤
PGM Rch (H)
PGM R output
OUT
Receiver
Receiver
Intercom microphone
[4-pin Type]
4
3
2
1
Insertion Side
Camera head side : NC4MDL-1 (Neutrik)
Cable side : XLR-4-11C (4-pin female plug) or equivalent
Receptacle
ecafretnI lanretxEO/InoitcnuFemaN.oN niP
①
TALK (C)
Shield for intercom microphone input
GND
1
2
②
TALK (H)
Intercom microphone input
IN
③
LISTEN (C)
Shield for LISTEN output
GND
4
3
④
LISTEN (H)
LISTEN L output
OUT
Receiver
Intercom microphone
