Ikegami FA-97A - Page 158

142
HDK-99 1803 VER1 (E)

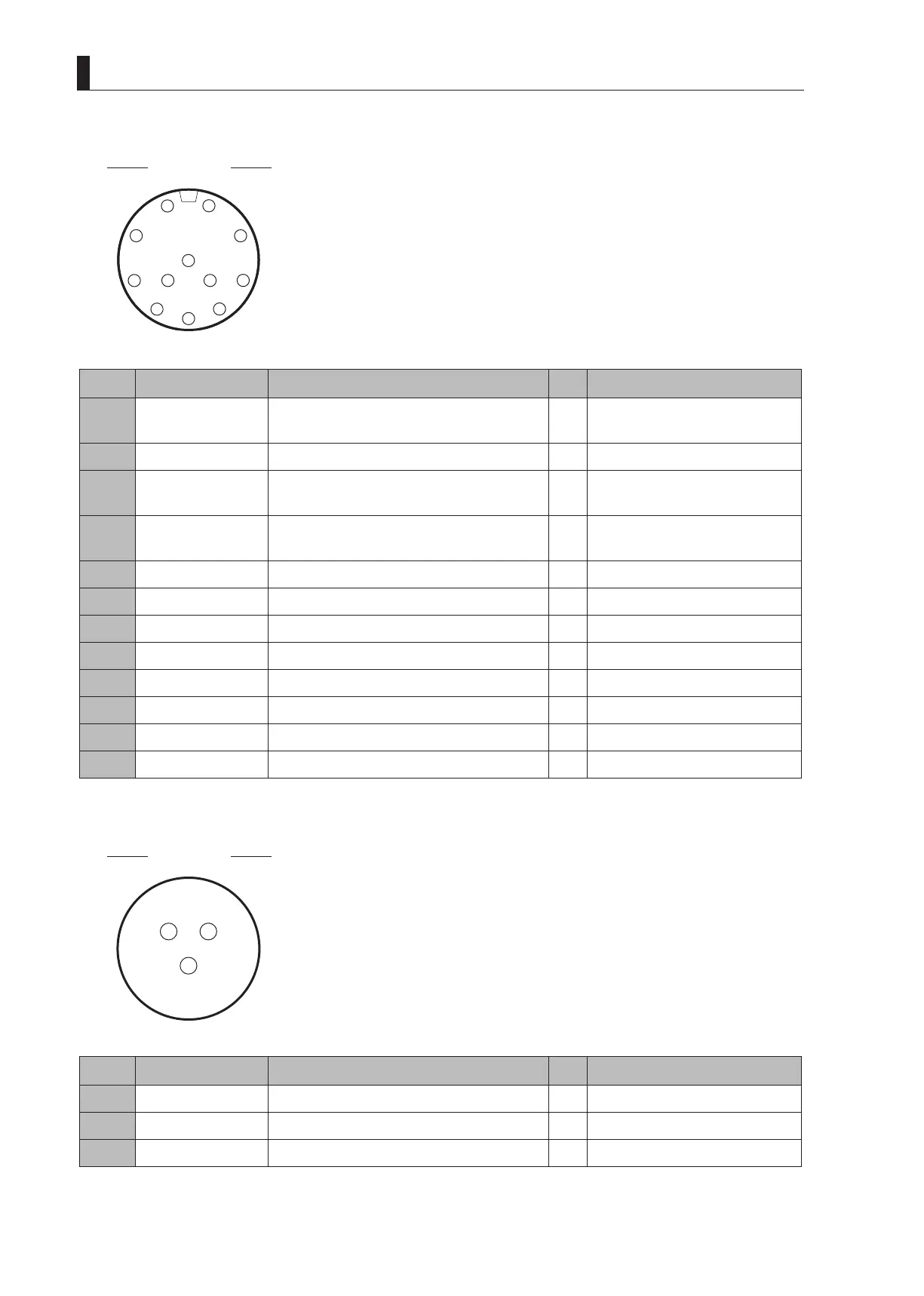

7.3 External Connections
■
I/O Connector
1
2
3
4
5
6
7
8
9
10
1112
Insertion Side
Receptacle
Camera head side : HR10A-10R-12SC
Cable side : HR10A-10P-12PC
ecafretnI lanretxEO/InoitcnuFemaN.oN niP
①
PC RXD (+)
Digital data input (+) from remote controller to
camera
IN
②
PC RXD (-)
Digital data input (-) from remote controller to cameraIN
③
PC TXD (+)
Digital data output (+) from camera to remote
controller
OUT
④
PC TXD (-)
Digital data output (-) from camera to remote
controller
OUT
⑤
+ 12 V RET
Ground for DC +12V power supplyRET
⑥
+ 12 V
DC +12V power supply to remote controller OUT
⑦
R TALLY
TUOlangis FFO/NO YLLAT R
⑧
G TALLY
TUOlangis FFO/NO YLLAT G
⑨
RET - 1
NIlangis FFO/NO 1-TER
⑩
RET - 2
NIlangis FFO/NO 2-TER
⑪
――――――――― ――――――――――――――――――――― ―
⑫
――――――――― ――――――――――――――――――――― ―
■
DC OUT Connector
A
C
B
Insertion Side
Receptacle
Camera head side : PRC05-R3F
Cable side : PRC05-P3M
ecafretnI lanretxEO/InoitcnuFemaN.oN niP
○
A
+ 12 V
TUOylppus rewop V21 + CD
○
B
+ 12 V RET
Ground for DC + 12V power supply RET
○
C
N . C
――――――――――――――――――――― ―
