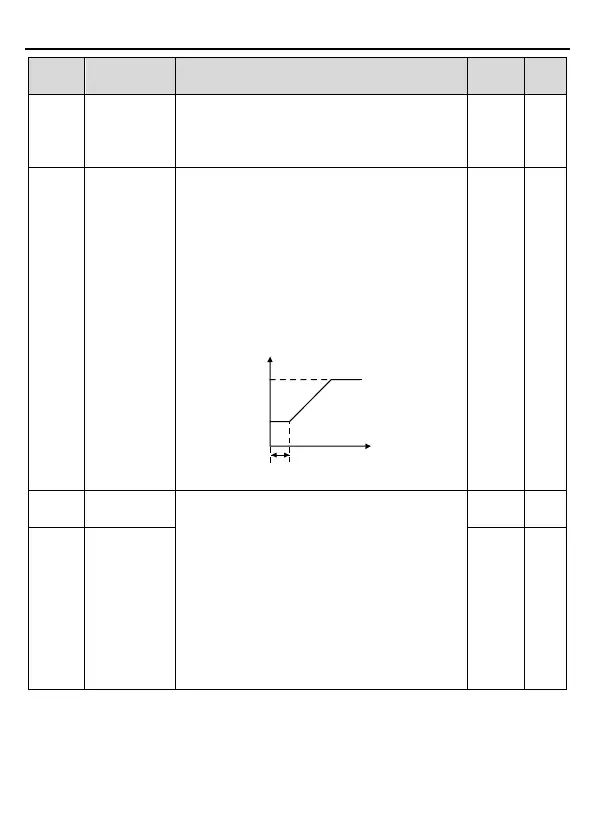

IMO SD1 Series - P02 Group Motor 1 Parameters

SD1 Series Inverters Function Parameters
-41-
Function
code
Name Description Default Modify
P01.01
Starting
frequency of
direct start-up
Starting frequency of direct start-
up means the
original frequency during the inverter starting.
See P01.02 for detailed information.
Setting range: 0.00~50.00Hz
0.50Hz ◎
P01.02
Hold time of
the starting
frequency
Set a proper starting frequency to increase the
torque of the inverter
during starting. During the
retention time of the starting frequency, the
output frequency of the inverter
is the starting
frequency. And then, the inverter will run from the
starting frequency to the set frequency. If the set
frequency is lower than the starting frequency,
the inverter
will stop running and keep in the
stand-
by state. The starting frequency is not
limited in the lower limit frequency.
Output frequency
fmax
t1
T
f1 set by P01.01
f1
t1 set by P01.02
Setting range: 0.0~50.0s
0.0s ◎
P01.03
B
raking current
before starting
The inverter
will carry out DC braking at the
braking current set before starting and it will
speed up after the DC braking time. If the DC
braking time is set to 0, the DC braking is invalid.
The stronger the braking current, the bigger the
braking power. The DC brak
ing current before
starting is
the percentage of rated current of the
inverter.
Setting range of P01.03: 0.0~100.0% (rated
current peak of the inverter)
Setting range of P01.04: 0.00~50.00s
0.0% ◎
P01.04
Braking time
before starting
0.00s ◎
