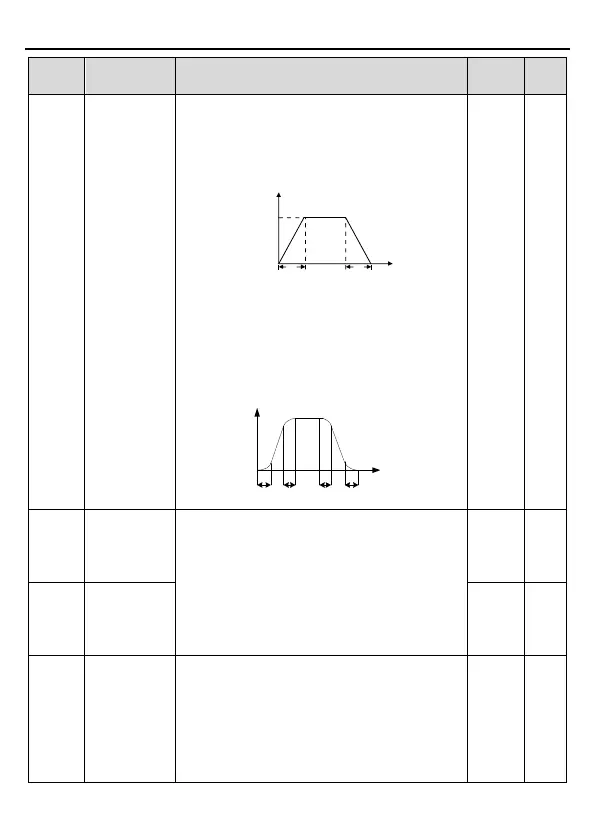

SD1 Series Inverters Function Parameters
-42-
Function
code
Name Description Default Modify
P01.05
Acceleration/
deceleration
selection
The changing mode of the frequency during
start-up and running.
0: Linear type
The output frequency increases or decreases
linearly.
fmax
Output frequency
t1 t2
T
1: S curve
The output frequency increases or decreases
progressively according to the S curve. The S
curve type is
generally applied in elevators,
conveyor
s, and other application scenarios
where smoother start or stop is required.
Output frequency
t
t1 t2 t1 t2
t1=P01.06; t2=P01.07
0 ◎
P01.06
Acceleration
time of the
starting step of
S curve
Setting rage: 0.0~50.0s
Note: Effective when P01.05 is 1
0.1s ◎
P01.07
Deceleration
time of the
ending step of
S curve
0.1s ◎
P01.08 Stop selection
0: Decelerate to stop: after the stop command
becomes valid, the inverter
decelerates to
reduce the output frequency during the set time.
When the frequency decreases to 0Hz, the
inverter stops.
1: Coast to stop: after the stop command
becomes valid, the inverter ceases the output
0 ○
