SD1 Series Inverters Function Parameters
-43-
Function
code
Name Description Default Modify
immediately. And the load coasts to stop at the
mechanical inertia.
P01.09
Starting
frequency of
DC braking
while stop
Starting frequency of DC braking: start the DC
braking when running frequency reaches starting
frequency determined by P01.09.
Waiting time before DC braking: inverters block
the output before starting the DC braking. After
this waiting time, the DC braking will be started to
prevent over-
current fault caused by DC braking
at high speed.
DC braking current: the value of P01.11
is the
percentage of rated current of inverter
. The
bigger the DC braking current is, the greater the
braking torque is.
DC braking time: the retention time of DC
braking. If the time is 0, the DC braking is invalid,
and the inverter will coast to stop.

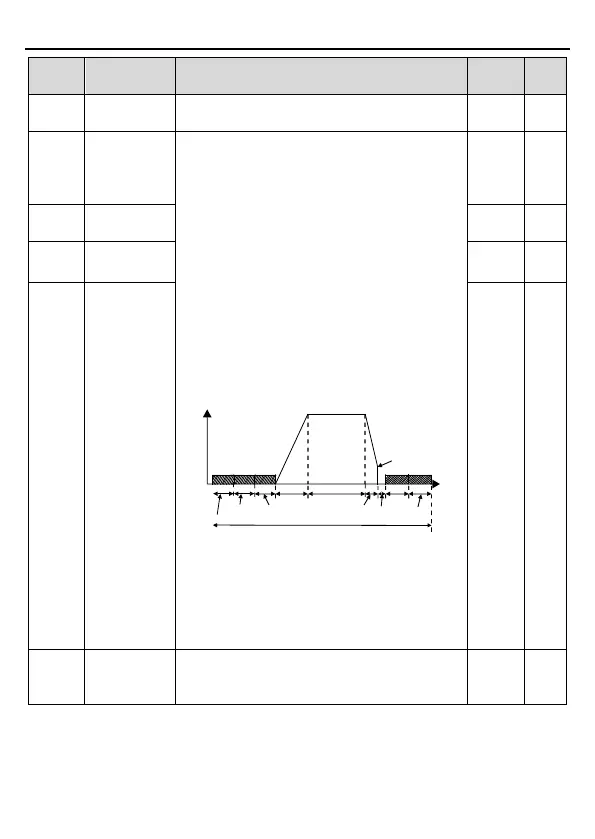

P01.04
ACC
P1314.
P0123.
Constant
speed
In running
DEC
P0110.
P1315.
P01.12
P01.09
t
Setting range of P01.09: 0.00Hz ~P00.03
(The max. frequency)
Setting range of P01.10: 0.00~50.00s
Setting range of P01.11: 0.0~100.0% (rated
current peak of the inverter)
Setting range of P01.12: 0.00~50.00s
0.00Hz ○
P01.10
Stop brake
waiting time
0.00s ○
P01.11
Stop DC
braking current
0.0%
○
P01.12
Stop DC
braking time
0.00s
○
P01.13
FWD/REV
running dead
zone time
This function code indicates the transition time
specified in P01.14 during FWD/REV rotation
switching. See the following figure.
0.0s ○
