SD1 Series Inverters Function Parameters
-52-
Function
code
Name Description Default Modify
braking torque motor current)
2: Set via AI2 (same as above)
3: Set via AI3 (same as above)
4: Set via HDI (same as above)
5: Set via Modbus
communication (same as
above)
6~8: Reserved
Note: Setting mode 1~8,
100% corresponds to
three times of the motor current.
P03.20
Electromotion
torque upper
limit
setting via
keypad
The function code is used to set the limit of the
torque.
Setting range: 0.0~300.0% (motor rated current)
180.0% ○
P03.21
Braking torque
upper limit
setting via
keypad
180.0% ○
P03.22
Flux
weakening
coefficient in
constant power
zone
The usage of motor in flux weakening control.
Function code P03.22 and P03.23
are effective
at constant power. The motor will enter the flux
weakening state when running
at rated speed.
Change the flux w
eakening curve by modifying
the flux weakening control coefficient. The bigger
the flux
weakening control coefficient is, the
steeper the weakening curve is.

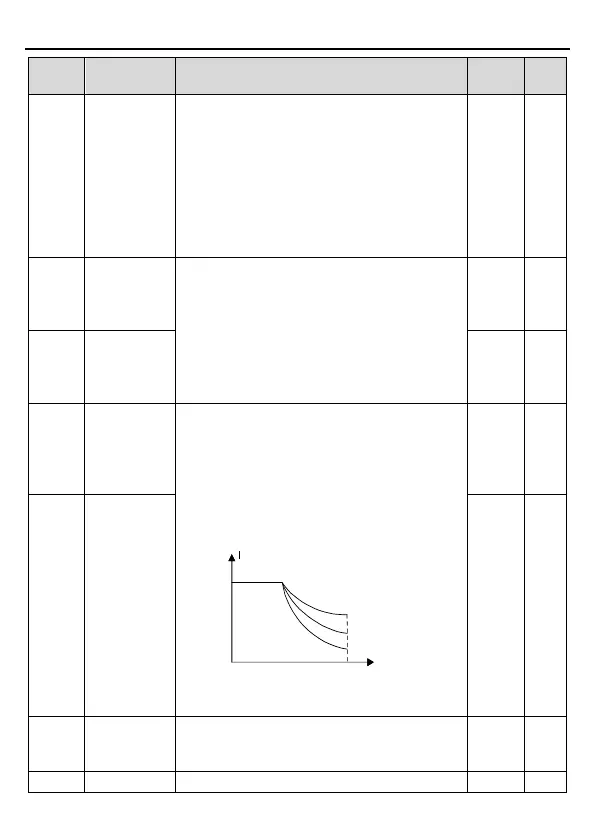

Flux weakening
coefficient of the motor
Min. limit
0.10
1.00
2.00
m
Setting range of P03.22: 0.1~2.0
Setting range of P03.23: 10%~100%
0.3 ○
P03.23
The lowest
flux
weakening
point in
constant power
zone
20% ○
P03.24
Max. voltage
limit
This parameter sets the max. v
oltage of the
Inverter, which is dependent on the site situation.
Setting range: 0.0~120.0%
100.0% ◎
P03.25
Pre-exciting
Pre-activate the motor when the inverter starts
0.300s
○
