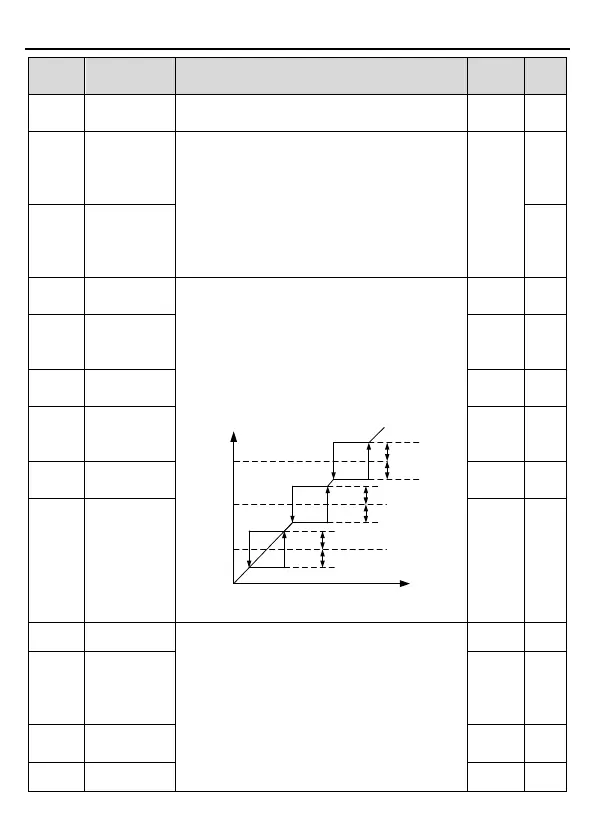

SD1 Series Inverters Function Parameters
-75-
Function
code
Name Description Default Modify
Setting range: 0.00Hz~P00.03 (the max.
frequency)
P08.07
Jogging
running
acceleration
time
The jogging acceleration
time means the time
needed if the inverter runs from 0Hz to the max.
frequency.
The jogging deceleration
time means the time
needed if the inverter goes from the max.
frequency (P00.03) to 0Hz.
Setting range: 0.0~3600.0s
Depend
on
model
○
P08.08
Jogging
running
deceleration
time
○
P08.09
Jumping
frequency 1
When the set frequency is in the range of
jumping frequency, the inverter
will run at the
edge of the jumping frequency.
The inverter
can avoid the mechanical
resonance point by setting the jumping
frequency. The inverter
can set three jumping
frequencies
. But this function will be invalid if all
jumping points are 0.
Set frequency f
Time t
Jump
frequency 2
1/2*Jump
frequency range 2
1/2*Jump
frequency range 2
Jump
frequency 1
1/2*Jump
frequency range 1
1/2*Jump
frequency range 1
Jump
frequency 3
1/2*Jump
frequency range 3
1/2*Jump
frequency range 3
Setting range: 0.00~P00.03 (the max. frequency)
0.00Hz ○
P08.10
Jumping
frequency
range 1
0.00Hz ○
P08.11
Jumping
frequency 2
0.00Hz
○
P08.12
Jumping
frequency
range 2
0.00Hz
○
P08.13
Jumping
frequency 3
0.00Hz
○
P08.14
Jumping
frequency
range 3
0.00Hz
○
P08.15 Traverse range
This function applies to the industries where
traverse and convolution function are required
such as textile and chemical fibre.
The traverse function means that the output
frequency of the inverter is fluctuated with the set
frequency as its center. The
route of the running
frequency is illustrated as below, of which the
traverse is set by P08.15 and when P08.15 is set
as 0, the traverse is 0 with no function.
0.0%
○
P08.16
Sudden
jumping
frequency
range
0.0%
○
P08.17
Traverse boost
time
5.0s
○
P08.18 Traverse
5.0s
○
