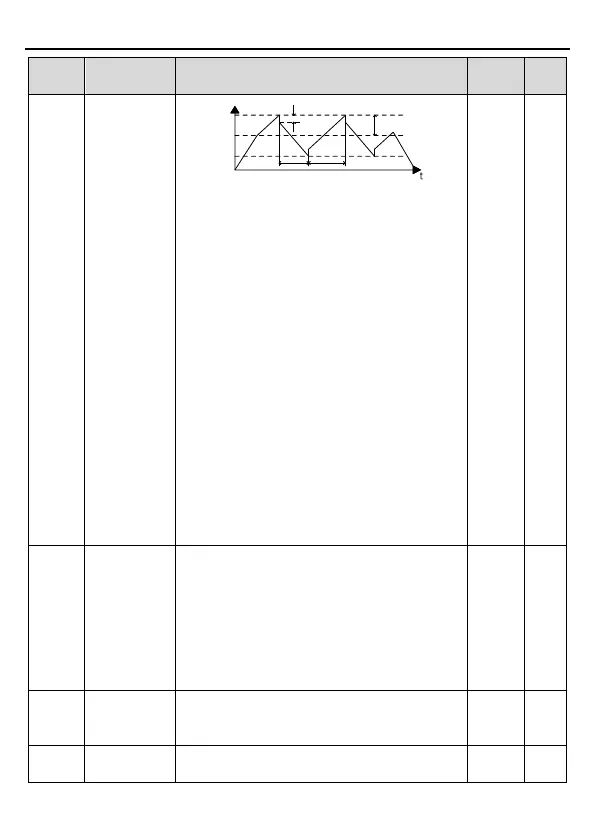

SD1 Series Inverters Function Parameters
-76-
Function
code
Name Description Default Modify
declining time
Output frequency
Jumping frequency
Accelerate
Decelerate per
dec. time
Wobble frequency amplitude
Fall time of
wobble frequency
Rise time of
wobble frequency
Center
frequency
Lower limit of
wobble frequency
Traverse range: The traverse running is limited
by upper and low frequency.
The traverse range relative to the center
frequency: traverse range AW ＝ center
frequency×traverse range P08.15.
Sudden jumping frequency ＝
traverse range
AW×sudden jumping frequency range P08.16.
When run at the traverse frequency, the value
which is relative to the sudden jumping
frequency.
The raising time of the traverse frequency: The
time from the lowest point to the highest one.
The declining time of the traverse frequency: The
time from the highest point to the lowest one.
Setting range of P08.15: 0.0~100.0%
(Relative to the set frequency)
Setting range of P08.16: 0.0~50.0%
(Relative to the traverse range)
Setting range of P08.17: 0.1~3600.0s
Setting range of P08.18: 0.1~3600.0s
P08.19
Linear speed/
frequency
decimals
Ones place: decimals of linear speed display
0: no decimals
1: one decimal
2: two decimals
3: three decimals
Tens place: decimals of frequency display
0: two decimals
1: one decimal
0x00
○
P08.20
Analog
calibration
function setting
0: Disabled
1: Enabled
0
◎
P08.21
Deceleration
time for
0.0~6553.5s
0.0 indicates coasting to stop.
0.0s
○
