SD1 Series Inverters Function Parameters
-77-
Function
code
Name Description Default Modify
emergency
stop
P08.22
Delay to enter
the sleep state
0.0~3600.0s
It indicates the delay to enter the sleep state, and
it is valid only when ones place of P01.19
is set
to 2.
2.0s
○
P08.23
Preset voltage
and frequency
0: 230 V preset voltage and 50Hz preset frequency
1: 220 V preset voltage and 60Hz preset frequency
2: 400 V preset voltage and 50Hz preset frequency
3: 460 V preset voltage and 60Hz preset frequency
2
◎
P08.24
Enabling
energy
consumption
braking stop
0: Disable
1: Enable
1
○
P08.25
Setting
counting value
The counter works by the input pulse signals of
the HDI terminals.
When the counter achieves a fixed number, the
multi-
function output terminals will output the
signal of "fixed counting number arrival" and the
count continues;
when the counter achieves a
setting number, the multi-
function output
terminals will output the
signal of "setting
counting number arrival", the counter will clear all
numbers and stop to recount before the next
pulse.
The setting counting value P08.26
should be no
more than the setting counting value P08.25.

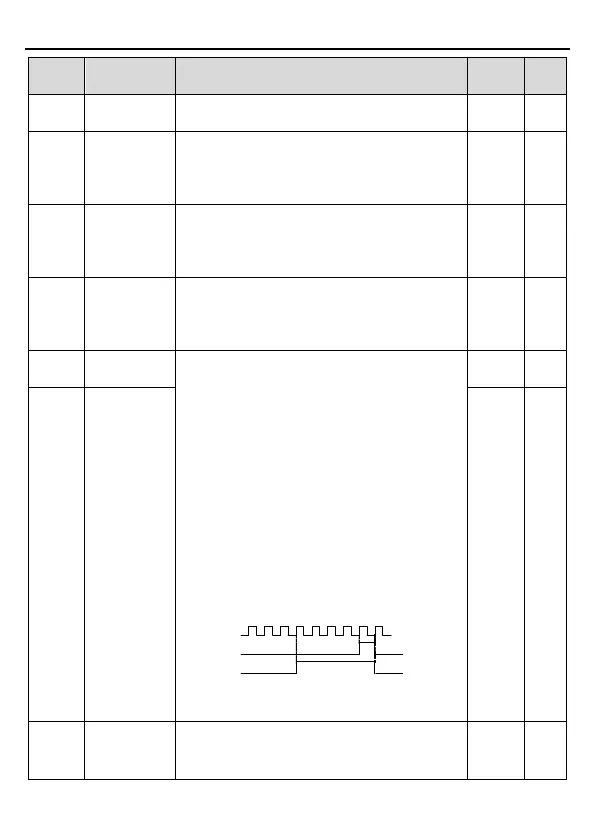

The function is illustrated as below:
Y1
RO1, RO2
S terminal
Reach the set
counting value
Reach the designated
counting value
Setting range of P08.25: P08.26~65535
Setting range of P08.26: 0~P08.25
0
○
P08.26
Reference
counting value
0 ○
P08.27
Setting running
time
Pre-set running time of the inverter
. When the
accumulative running time achieves the set time,
the multi-function digital output terminals will
0m ○
