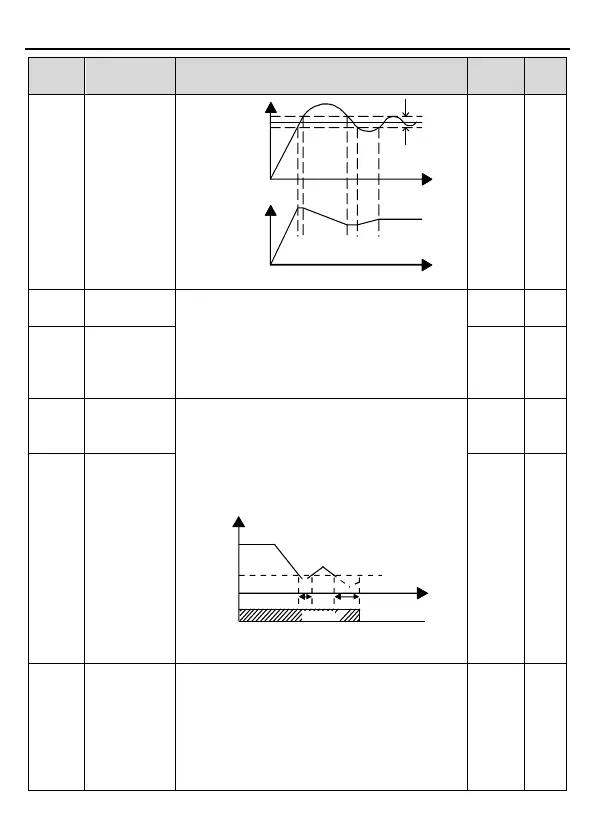

IMO SD1 Series - Page 91

SD1 Series Inverters Function Parameters
-86-
Function
code
Name Description Default Modify
Output frequency
T
T
Feedback value
Bias limit
Reference value
Setting range: 0.0~100.0%
P09.09
Upper limit of
PID output
These parameters are used to set the upper and
lower limit of the PID adjustor output.
100.0 % corresponds to max. f
requency or the
max. voltage of (P04.31)
Setting range of P09.09: P09.10~100.0%
Setting range of P09.10: -100.0%~P09.09
100.0%
○
P09.10
Lower limit of
PID output
0.0%
○
P09.11
Feedback
offline
detection value
Set the PID feedback offline detection value,
when the detection value is smaller than or equal
to the feedback offline detection value, and the
lasting time exceeds the set value in P09.12
, the
inverter will report "PID
feedback offline fault"
and the keypad will display PIDE.
T
Output frequency
t1
t2
P09.11
In running
Fault output PIDE
PIDE
Setting range of P09.11: 0.0~100.0%
Setting range of P09.12: 0.0~3600.0s
0.0% ○
P09.12
Feedback
offline
detection time
1.0s ○
P09.13
PID adjustment
selection
0x00~0x11
Ones place:
0:
Keep on integral adjustment when the
frequency achieves the upper/lower
limit; the
integration shows the change between the
reference and the feedback unless it reaches the
internal integral limit. When the trend between
0x0001 ○
