100
Model 10000
30
-
foot Parts & Specifications
Manual Part # 99905185
2
3
4

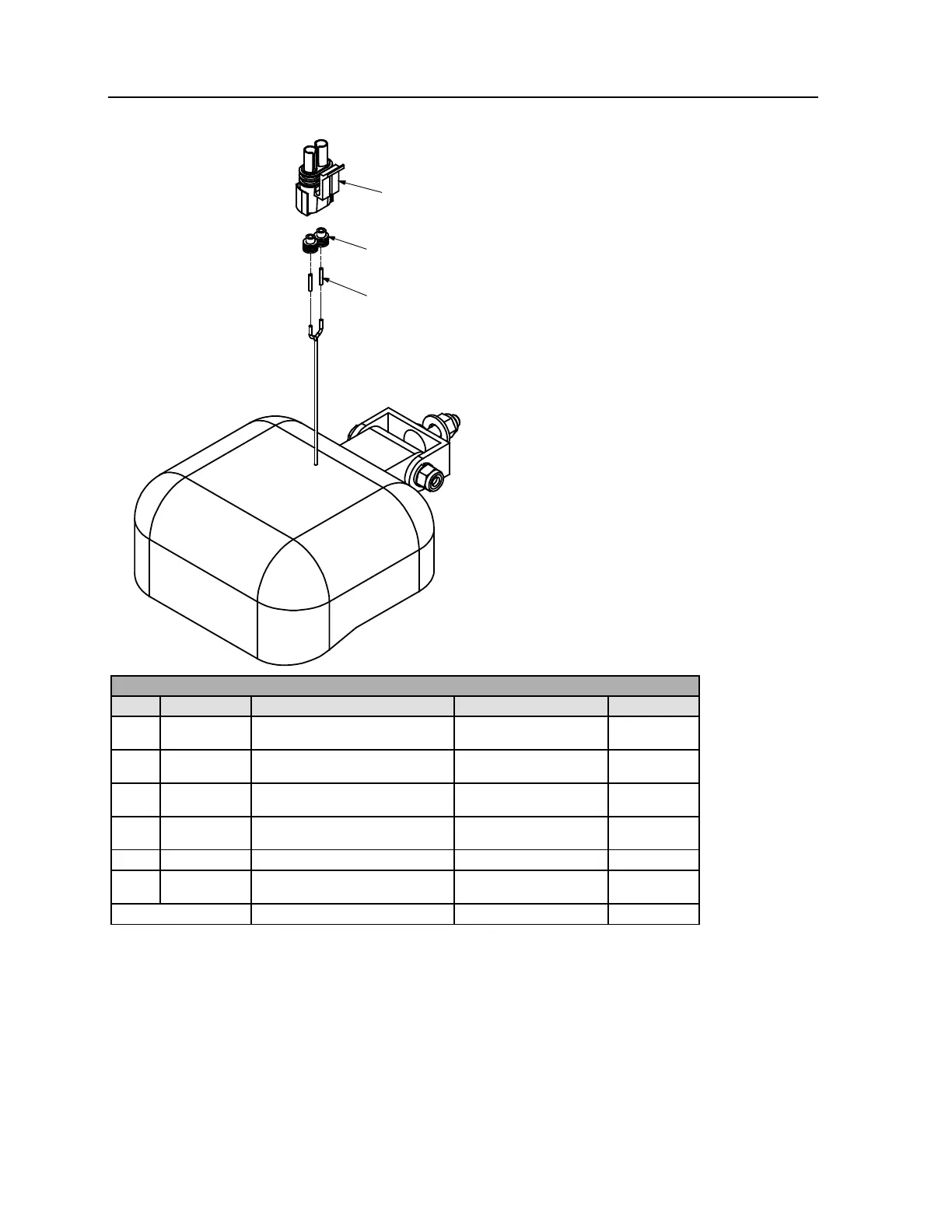

ELECTRICA
L INST
ALLATION, L
IGHT KITS (99
905289)
ITE
M
PART #
DESCRIPTION
DETAILS
QUAN
TI
TY
1.
51723830
ELECTRICAL KIT
-
BO
O
M
SINGLE F
LOOD LIGHT
1
1.
51724116
ELECTRICAL KIT
-
BO
O
M
DUAL LED FLOOD LI
GHT
1
1.
51724606
ELECTRICAL KIT
-
BO
O
M
SINGLE FLO
OD LIG
HT 24V
1
2.
77045888
TERMINAL
PKRD W
P
14
-
16GA
FEM
2
3.
77044927
CABLE SEAL
14GA GRAY
2
4.
77044574
CONNECTOR
PKRD W
P
2CAV FEM
TOW
ER
1
REV
C 20140203
101
103
Table of Contents
Default Chapter
3
Table of Contents
3
Revisions
5
Introduction
7
Specifications
9
Model 10000 30' Specifications
9
10000 30' Minimum Chassis Specifications
11
Dimensional Drawing
12
30' 10000 Crane Capacity
14
Crane Reference
15
Greasing Instructions
16
10000 30-Foot Crane Recommended Spare Parts
18
10000 30-Foot Crane Recommended Spare Parts List
18
Installation Introduction
19
Dominator II - 8600 - 10000 Crane Installation Kit (99905067)
20
Additional Installation Components, Non-IMT Body (93713748)
22
Telescopic Crane Orientation
23
Crane Controls
23
Parts
25
Parts Information
26
Base & Mast Assembly, Test Stand (99904925) (See Parts List for Effectivity Dates)
28
Base & Mast Assembly, Test Stand (99904925)
28
Base & Mast Assembly, Test Stand (99904925) (See Parts List for Effectivity Dates)
30
Base & Mast Assembly, Truck Mount (99904925) (See Parts List for Effectivity Dates)
32
Base & Mast Assembly, Truck Mount (99904925)
32
Base & Mast Assembly, Truck Mount (99904925) (See Parts List for Effectivity Dates)
34
Boom Assembly (99904925) (See Parts List for Effectivity Dates)
36
Boom Assembly (99904925)
36
Boom Assembly (99904925) (See Parts List for Effectivity Dates)
38
Valvebank Assembly (99904925)
40
Valvebank Assembly-Single Proportional (99904925)
42
Winch & Anti-Two Block Assembly (99904925)
44
Crane & Winch Assembly (99904925) (See Parts List for Effectivity Dates)
45
Crane & Winch Assembly (99904925)
45
Crane & Winch Assembly (99904925) (See Parts List for Effectivity Dates)
47
Flip Sheave Assembly (99904925)
48
Flip Sheave Assembly (99904925) (See Parts List for Effectivity Dates)
49
Flip Sheave Assembly (99904925) (See Parts List for Effectivity Dates)
51
99904925 Crane Assembly Parts List, Complete (See Parts List for Effectivity Dates)
53
99904925 Crane Assembly Parts List, Complete (See Parts List for Effectivity Dates)
57
Gear Rotator (71056577)
61
Lower Cylinder (51722956)
63
Extension Cylinder Assembly (51723604)
65
Cylinder (51723931)
67
Cylinder (51723927)
69
Winch Specifications (71570825)
71
Winch Parts (71570825)
72
Winch Oil Specifications
75
Valvebank (73734472)
76
Valvebank-Single Proportional (73734472)
76
Valvebank (73734727)
76
Valvebank (73734727)
77
Seal Kit for 73734727 (94399214)
78
Connection Block Seal Kit for 73734727 (94399213)
80
Hydraulic Schematic Fully Proportional (99905018)
82
Hydraulic Schematic Single Proportional (99905596)
85
Radio Remote Harness (77441481)
89
Radio Remote Harness (77441481)
90
Radio Remote Harness (77441481)
91
Radio Remote Harness-Single Proportional (77441537)
92
Radio Remote Harness - Single Proportional (77441537)
92
Radio Remote Harness-Single Proportional (77441537)
93
Radio Remote Harness-Single Proportional (77441537)
94
Horn Circuit (99905614)
95
Decal Placement, 10000 30' Crane
96
Option-Winch Roller (99905055)
98
Option - Boom Tip Light Kit (99905289)
100
General Reference
103
Inspection Checklist
103
Deficiency / Recommendation / Corrective Action Report
108
Thread Torque Charts
110
