IMT 10000 User Manual

Chapter 4 Parts 47

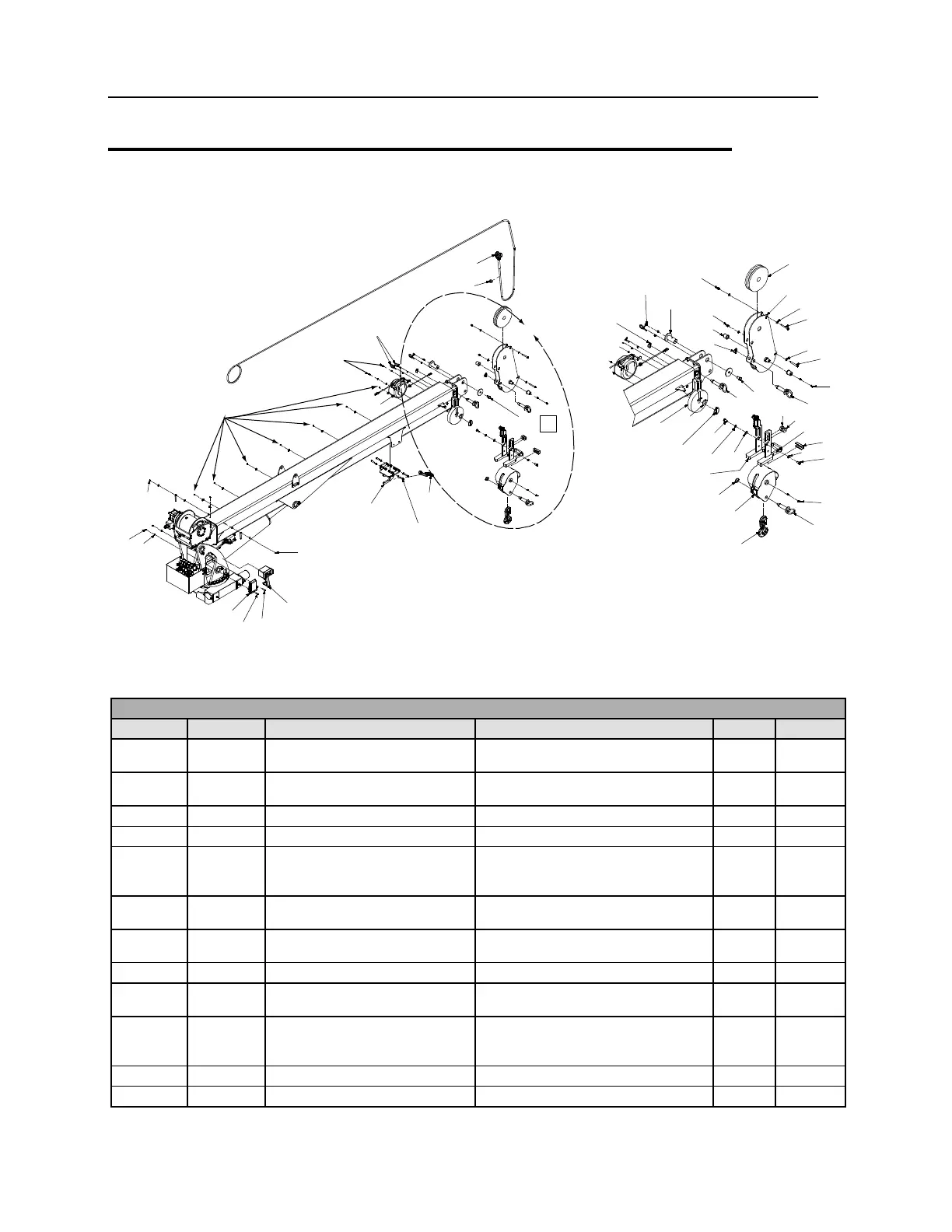

Flip Sheave Assembly (99904925)
(See Parts List for Effectivity Dates)
55,97
98,102,82
92,114
49
76
76
48
31,95,98(2)
74
75
31,95,
98,99
7
38
52
85(4),99(8),
96(4)
43
A
88 1
46
113
81,77
15
99,94
27
113
99,94
53
100
58
86
104
106
17
113
19
47
60
77,81
86
106
42
30
30
60
32,88
60
77,81,27
99
91
99
91
18
21
104
DETAIL A
NOTES:
1 USE BLUE LOCTITE.
FLIP SHEAVE ASSEMBLY PARTS LIST (99904925)
ITEM
PART #
DESCRIPTION
DETAILS
KIT #
QTY
4.
51719413
HARDWARE KIT-CRANE
RADIO CONTROLS
1
5.
91723584
HARDWARE KIT
(effective through 05/22/13)
1
7.
51723610
CORD REEL ASSEMBLY
30' WITH CONNECTOR
1
15.
52723030
PIN
M 1.50X 3.38
1
17.
52723058
WELDMENT- ANTI-TWO
BLOCK BRACKET
(effective through 04/17/13)
1
18.
52723060
WELDMENT-FLIP SHEAVE
(effective through 04/17/13)
9500/ 10000
1
19.
52723061
WELDMENT- SNATCH BLOCK
(effective through 03/04/13)
9500/ 10000
1
21.
60030255
SHEAVE
9.00 NYLATRON GSM
1
27.
60030424
CAP- ANTI-TWO BLOCK PIN
(effective through 04/17/13)
2
30.
60030429
WEAR PAD- ANTI-TWO BLOCK
BRACKET
(effective through 04/17/13)
2
31.
70034490
PLATE-ANGLE PLASTIC
3.5"
2
32.
60109337
PIN RETAINER PLATE
3.00 DIA
1
