40 Model 10000 30-foot Parts & Specifications Manual Part # 99905185

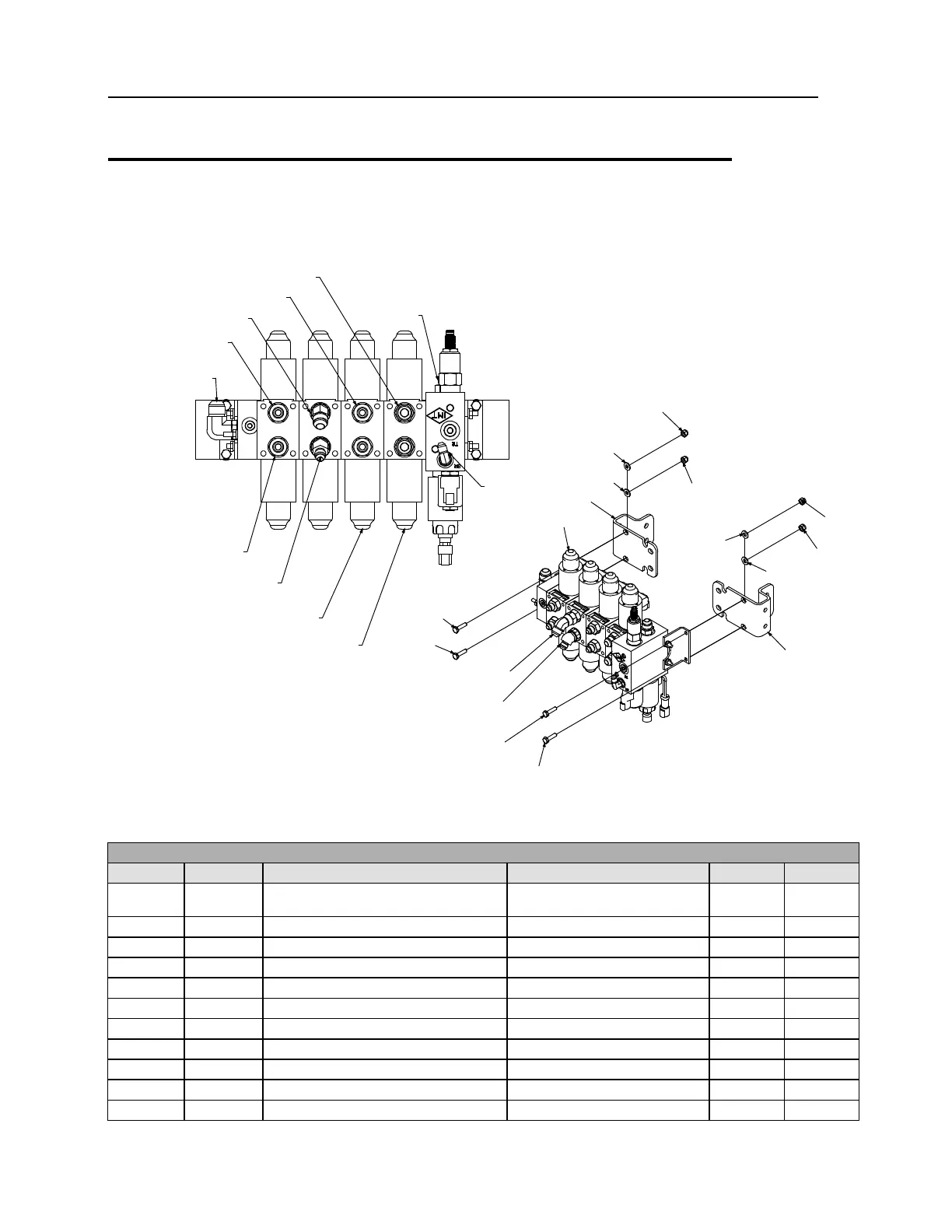

Valvebank Assembly-Single Proportional
(99904925)
WINCH (DOWN)
EXT CYL (RETRACT)
MAIN CYL (RETRACT)
ROTATION CW
CASE DRAIN
RETURN (TANK)
PRESSURE
WINCH (UP)
EXT CYL (EXTEND)
MAIN CYL (EXTEND)
ROTATION CCW
138
98
98
95
95
138
98
95
95
98
139
139
139
140
127
122
139
NOTES (SEE REFERENCE NUMBER IN BOX):
1 INSTALL WIRE HARNESS TO VALVE BANK PRIOR TO INSTALLING VALVE BANK BRACKET.
99904925 VALVEBANK ASSEMBLY
ITEM
PART #
DESCRIPTION
DETAILS
KIT #
QTY
3.
91723543
HARDWARE KIT-VALVEBANK
MOUNT
1
6.
91725088
HYDRAULIC KIT
1
71.
72601797
WASHER-LOCK
8MM
#3
3
72.
72602065
WASHER-FLAT
M8
#3
3
73.
72602052
CAP SCREW
M8-1.25X 16 HEX HEAD Z
#3
3
117.
72532356
ADAPTER
M STR/M JIC 8 6
#6
4
119.
72532358
ADAPTER
M STR/M JIC 8 8
#6
4
121.
72532361
ADAPTER
M STR/M JIC 8 10
#6
1
122.
72532670
ELBOW
M JIC/45/ F JIC 8 8
#6
1
123.
72532690
ELBOW
M JIC/90 /FJIC SW 4 4
#6
1
125.
72532792
ADAPTER
M STR/M JIC 8 4
#6
1
