32 Model 10000 30-foot Parts & Specifications Manual Part # 99905185

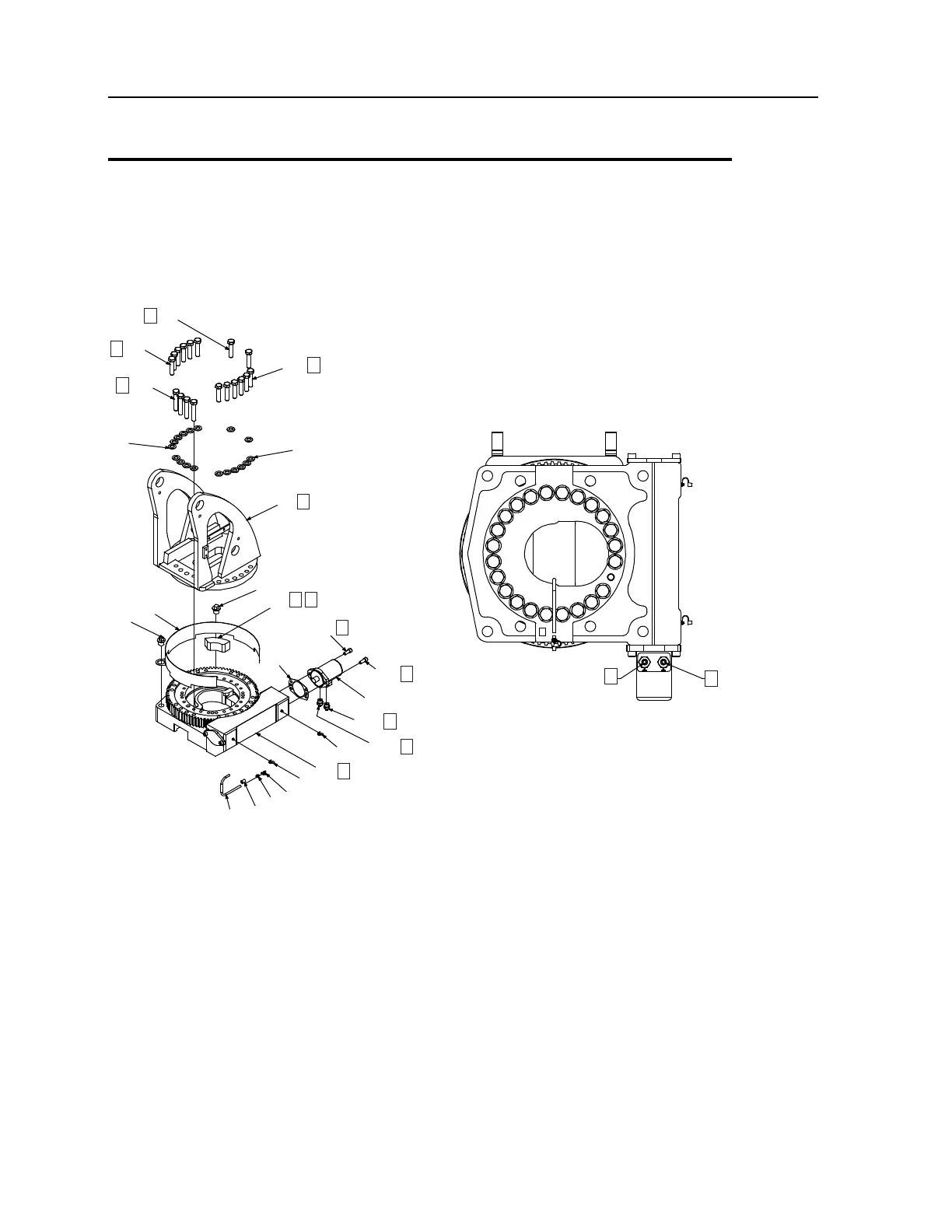

Base & Mast Assembly, Truck Mount
(99904925) (See Parts List for Effectivity Dates)
NOTE: This base and mast assembly is shown as it if it were mounted on a truck.
50
33
41
41
11
66
128
59
111
77
34
77
77
51
81
80
128
111
BOTTOM VIEW
67
67
65
65
1
1
1
2
2 4
3
3
2
7
6
6
7
NOTES (SEE REFERENCE NUMBER IN BOX):
1 TORQUE TO 280 FT-LB (38.7 KG-M)
2 USE RUST PREVENTATIVE ON SLIDE STOP, BEARING RACE, BOTTOM OF MAST AND TOP OF GEAR
BEARING.
3 APPLY BLUE THREAD LOCKER.
4 APPLY GEAR LUBE ON GEAR TEETH.
5 BASE AND MAST ASSEMBLY SHOWN AS MOUNTED ON THE TRUCK. VIEW A FROM BOTTOM OF
ROTATION ASSEMBLY.
6 PORT A
7 PORT B
