70 Model 10000 30-foot Parts & Specifications Manual Part # 99905185

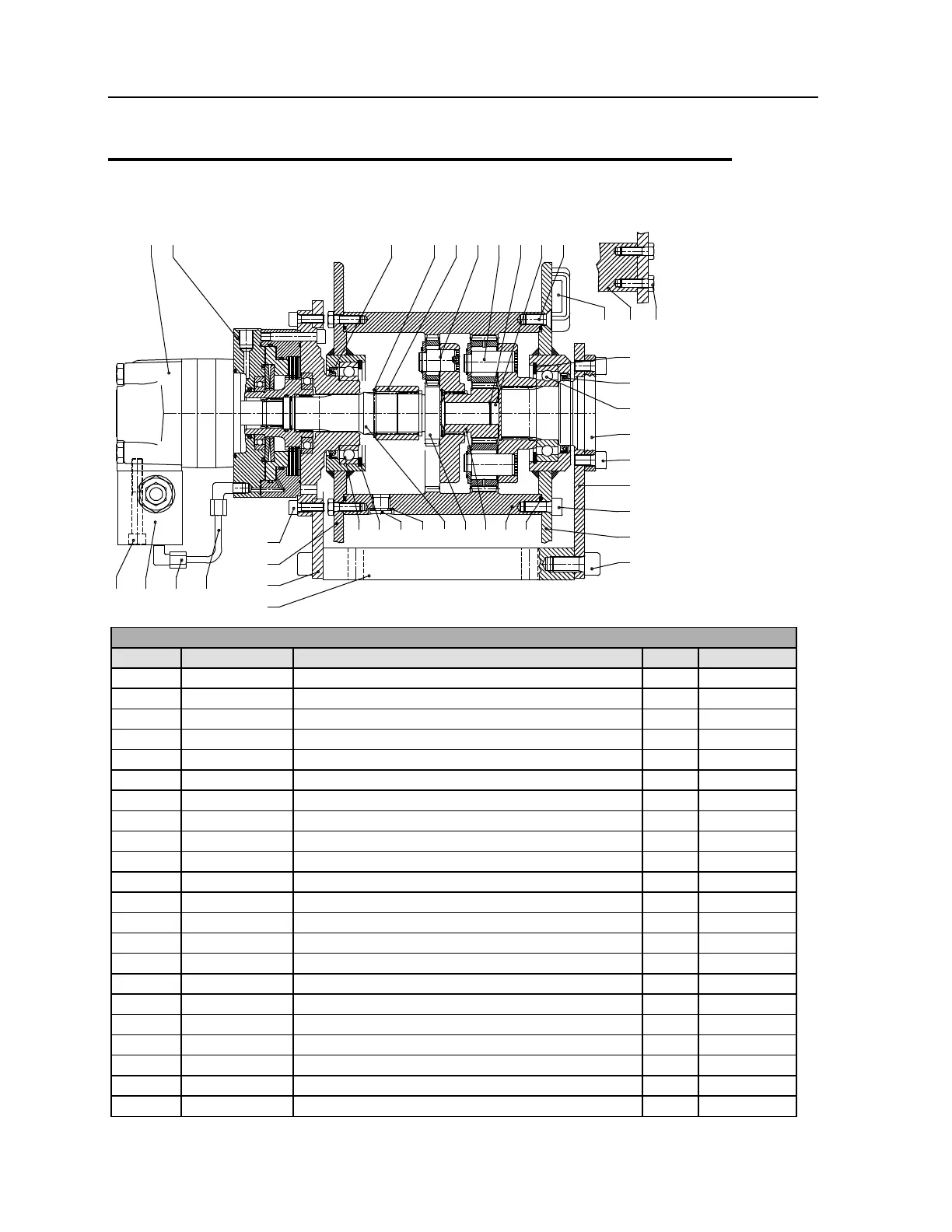

Winch Parts (71570825)
1 2 3 4 5 6 7 8 9 10
11 12 13
14
15
16
17
18
19
20
21
22
24 25 26 27
28
29
30
31
32 33 34 35 36 37 38 3940
71570825 PARTS LIST
ITEM
PART #
DESCRIPTION
KIT #
QUANTITY
1.
73511107
MOTOR
1
2.
73511108
BRAKE UNIT
1
3.
73534498
OIL RETAINER SEAL
41
1
4.
SEAL
1
5.
SLEEVE
1
6.
REDUCTION GEAR UNIT
1
7.
REDUCTION GEAR UNIT
1
8.
SEAL
1
9.
WEDGE-WINCH CABLE
1
10.
SCREW
2
11.
70580215
THIMBLE
1
12.
71415752
CROSS MEMBER
2
13.
71415753
HEX SCREW
16
14.
SEAL
1
15.
73534499
OIL RETAINER SEAL
41
1
16.
73534500
BALL BEARING
1
17.
ANTI-ROTATION FLANGE
1
18.
CAP SCREW, SOCKET HEAD
8
19.
GEAR SIDE SUPPORT
1
20.
CAP SCREW, SOCKET HEAD
4
21.
REDUCTION GEAR SIDE BODY
1
22.
CAP SCREW, SOCKET HEAD
8
