IMT 10000 - Base & Mast Assembly, Test Stand (99904925) (See Parts List for Effectivity Dates); Base & Mast Assembly, Test Stand (99904925)

26 Model 10000 30-foot Parts & Specifications Manual Part # 99905185

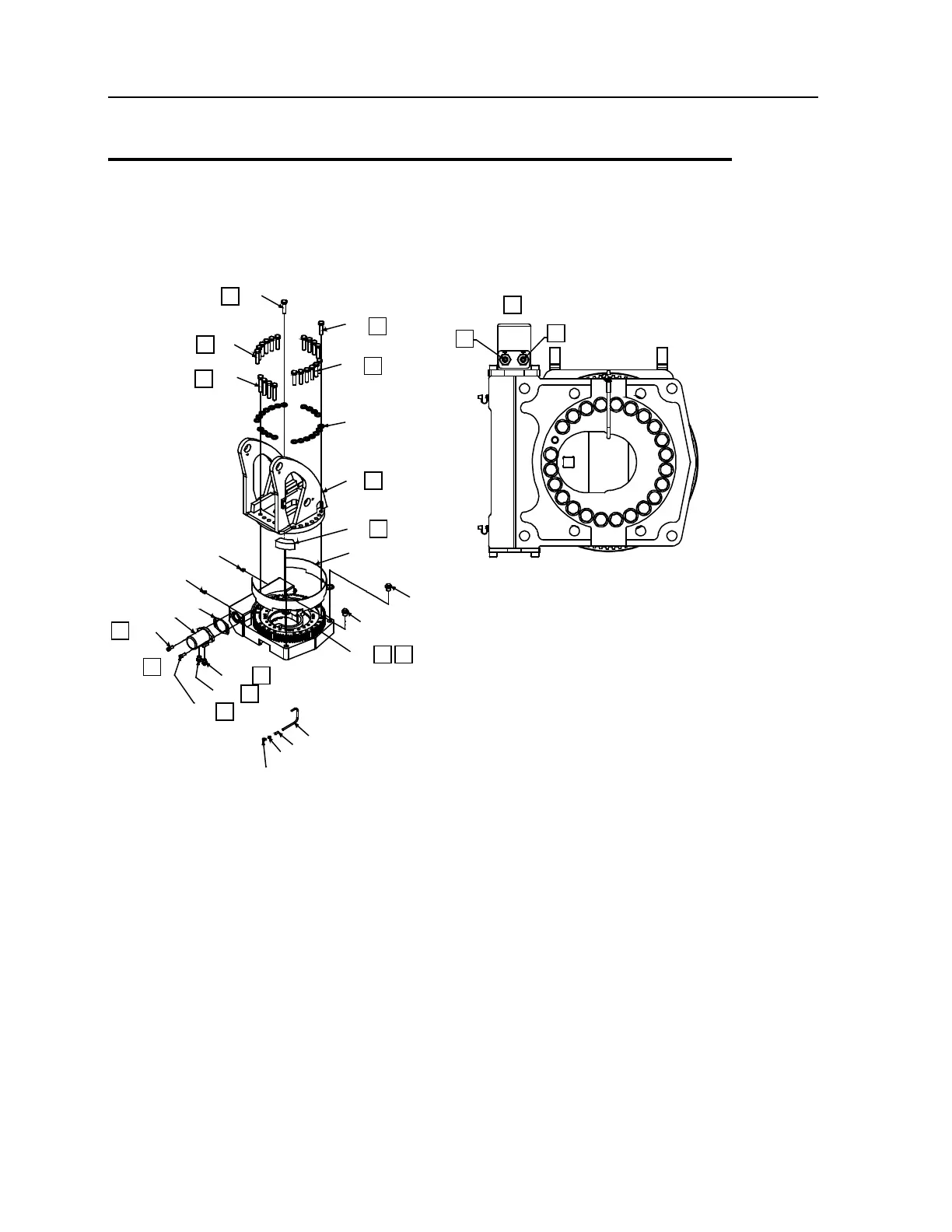

Base & Mast Assembly, Test Stand (99904925)
(See Parts List for Effectivity Dates)
NOTE: This base and mast assembly is shown as it if it were mounted on a test stand.
641
671
661
64 1
67 1
65
2
11
2
33
34
77
77
6
7
5
2 4
50
41
41
115
80
81
77
6
128
7
128
3
111
3
111
59
51
5
NOTES (SEE REFERENCE NUMBER IN BOX):
1 TORQUE TO 280 FT-LB (38.7 KG-M)
2 USE RUST PREVENTATIVE ON SLIDE STOP, BEARING RACE, BOTTOM OF MAST AND TOP OF GEAR
BEARING.
3 APPLY BLUE THREAD LOCKER.
4 APPLY GEAR LUBE ON GEAR TEETH.
5 BASE AND MAST ASSEMBLY SHOWN AS MOUNTED ON THE TEST STAND. NOTE ORIENTATION OF
MOTOR. BOTTOM VIEW OF ROTATION ASSEMBLY.
6 PORT A
7 PORT B
