IMT 10000 User Manual

74 Model 10000 30-foot Parts & Specifications Manual Part # 99905185

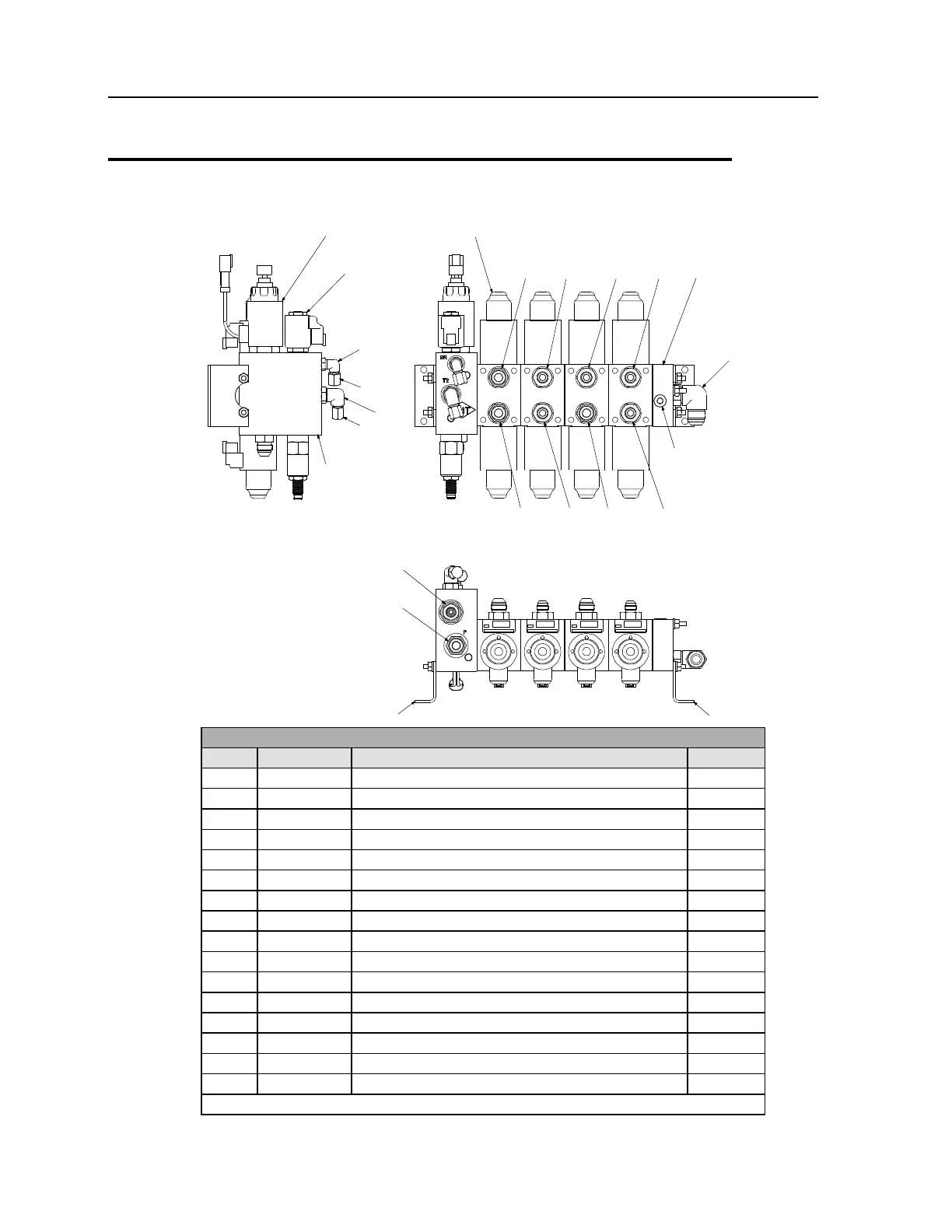

Valvebank (73734472)
2
3, 4
8
10
10
10
11
16
11
10
11
14
12
13
6, 7
1
5
11
9
9
15
15
10
73734472 PARTS LIST
ITEM
PART #
DESCRIPTION
QTY
1.
73540394
VALVE BODY
1
2.
73540375
VALVE SECTION
4
3.
73540252
VALVE-P. FLOW CONTROL
1
4.
73540253
COIL (PART OF #3)
1
5.
73540396
RELIEF VALVE
1
6.
73540397
VALVE-SPOOL
1
7.
73540256
COIL-S SERIES 12VDC DEUTSCH
1
8.
73540027
END PLATE
1
9.
70145830
MOUNTING FOOT
2
10.
72532356
ADPTR-M STR/M JIC 8 6
5
11.
72532358
ADPTR-M STR/M JIC 8 8
4
12.
72053758
ELBOW-M STR/90/M JIC 4 4
1
13.
72533507
ELBOW-M STR/90/M JIC 8 10
1
14.
72532699
ELBOW-M STR/90/M JIC 6 4
1
15.
72532674
CAP-JIC STL 4 (.44 THD)
2
16.
72534561
PLUG-STR SOC HD STL 6 ZERO LEAK
1
REV C 20140908
