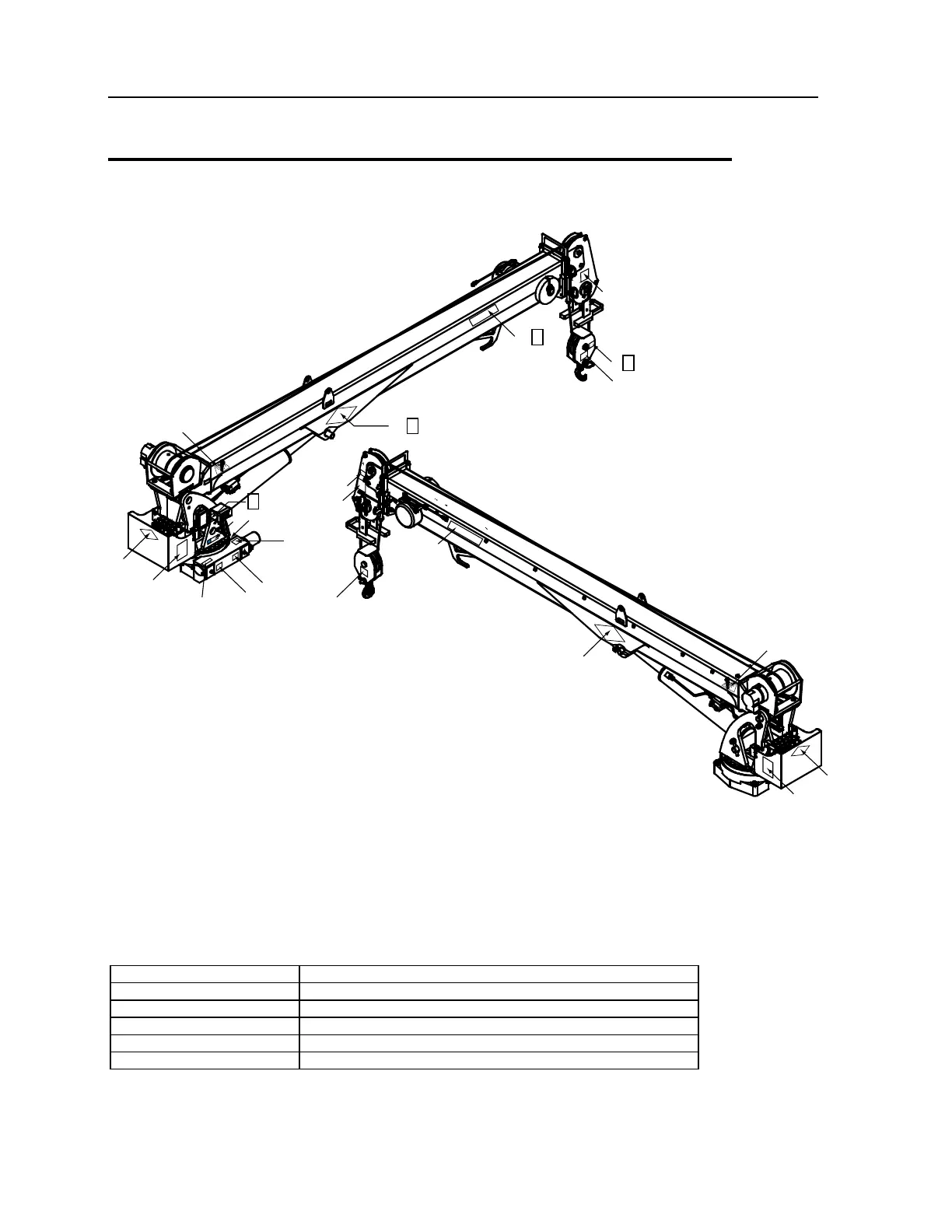

Decal Placement, 10000 30' Crane
22
10
3
4
4
3 4
22
23
8
25
25
24
24
9
9
11
23 3
21
21
5
6
1
2
3
NOTES (SEE REFERENCE NUMBER IN BOX):
1 SERIAL NUMBER PLACARD. MOUNT STREETSIDE.
2 PLACE BOTTOM POINT OF DIAMOND ABOVE END OF CYLINDER PIN.
3 CENTER ABOVE HOOK WELDMENT.
4 EITHER SIDE.
DECAL PLACEMENT (IF NOT SHOWN ON CRANE)
ITEM #
PLACEMENT
12,17,19,20, 25
AT OR NEAR REMOTE HANDLE STORAGE POINT
13
2 ON REAR STABILIZERS, 2 ON SIDEPACK FRONT WALLS
15
AT OR NEAR DRIVELINE
14,16
ON ALL FOUR SIDES OF CARRIER VEHICLE
18
ON TOP OF HYDRAULIC RESERVOIR
