IMT 10000 User Manual

Chapter 4 Parts 43

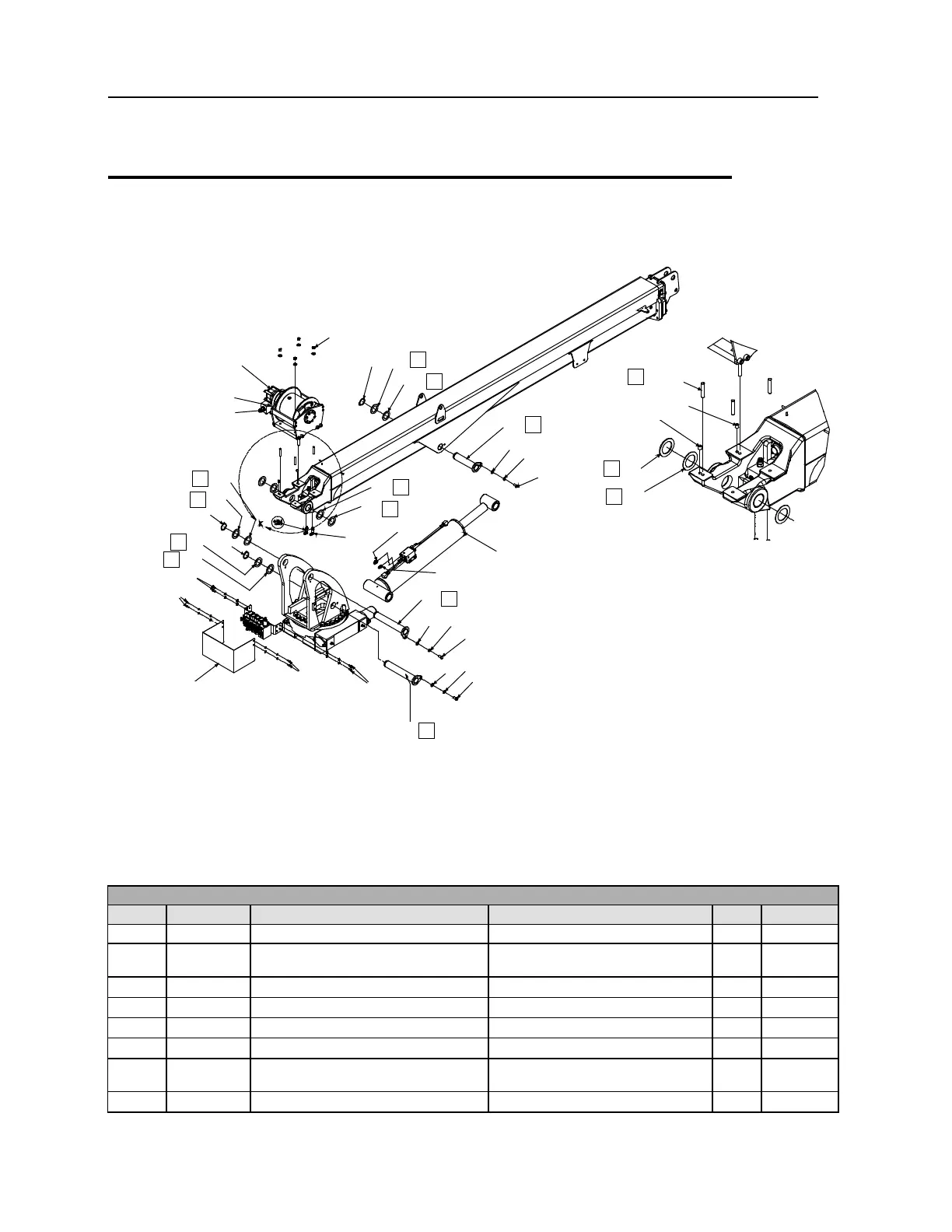

Crane & Winch Assembly (99904925)
(See Parts List for Effectivity Dates)
3 70(4)
2 56
2 57
79
79
DETAIL K
116
106
104
86
110
8
116
106
104
86
106
104
86
118
124
257
256
2 56
2
57
84,99,103
83,98,102
2 57
2 56
109
120
120
256
257
109
68,70(4)
54
109
110
84,99,103
83,98,102
124
K
40
NOTES:
1 APPLY ANTI-SEEZ TO BOOM AND CYLINDER MOUNTING PINS. DO NOT ALLOW ANTI-SEEZ TO
CONTACT BOOM OR CYLINDER PIN BOSS BEARINGS.
2 IF REQUIRED, USE 72063038 OR 72063039 MACHINERY BUSHINGS BETWEEN MAST AND LOWER
BOOM.
3 USE BLUE LOCTITE.
99904925 CRANE & WINCH ASSEMBLY
ITEM
PART #
DESCRIPTION
DETAILS
KIT #
QTY
2.
91723579
HARDWARE KIT-WINCH MOUNT
1
5.
91723584
HARDWARE KIT
(effective through 05/22/13)
1
6.
91723601
HYDRAULIC KIT
1
8.
51722956
CYLINDER
5.25/2.50 25.07S 45.52CCC
1
10.
52718741
PIN (effective through 05/22/13)
MM 2.00 X 12.75 (11.94 )
2
16.
52723036
PIN (effective through 05/22/13)
MM 2.00 X 9.00 (8.19 )
1
40.
60136475
COVER-VALVE BANK
(effective through 05/22/13)
1
54.
71570825
WINCH-PLANETARY
6000 LB LINE PULL (A60)
1
