42 Model 10000 30-foot Parts & Specifications Manual Part # 99905185

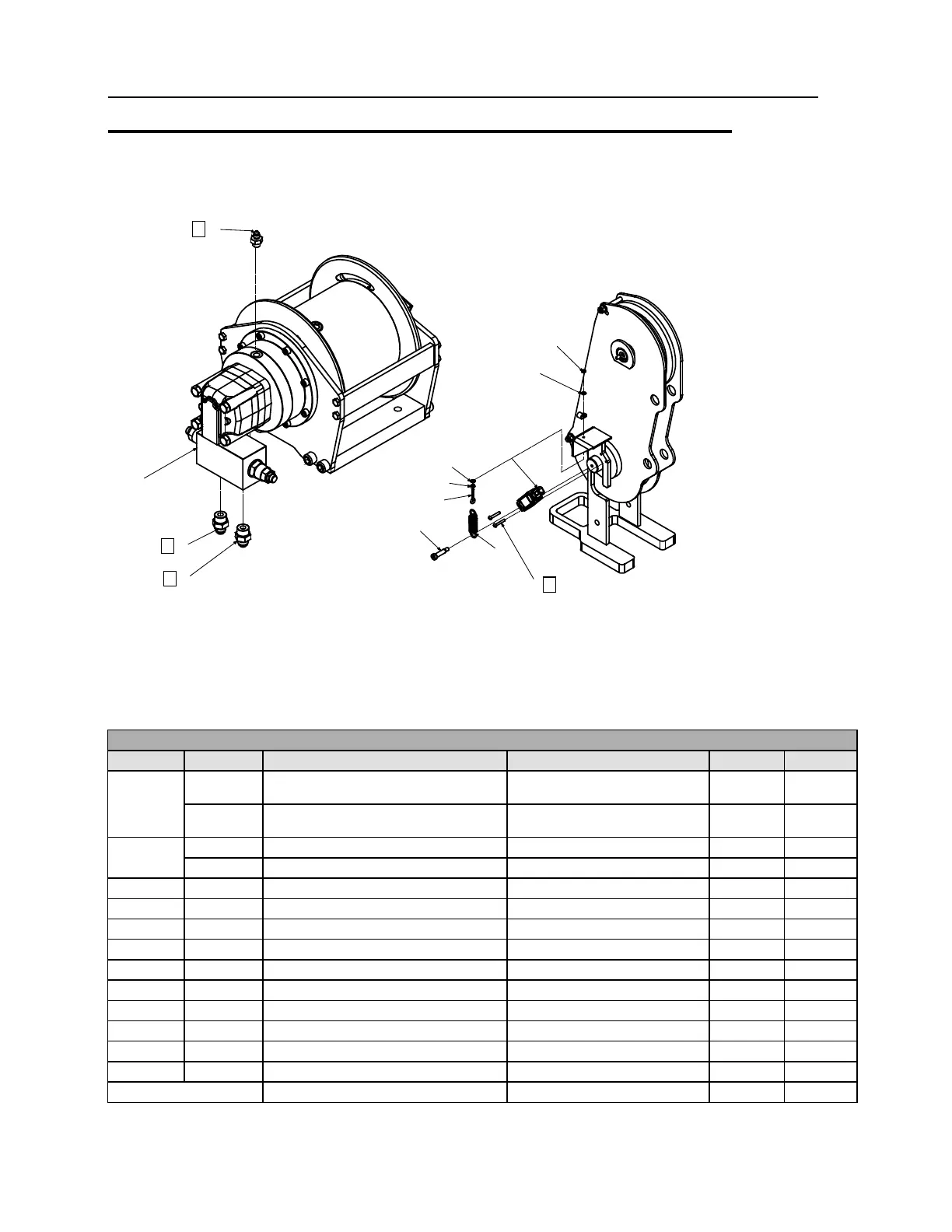

Winch & Anti-Two Block Assembly (99904925)
126
120
120
54
93
107
62
78
107
93
110
112
90
4
3
2
1
NOTES:
1 USE BLUE LOCKTITE.
2 PORT A
3 PORT B
4 CASE DRAIN
99904925 WINCH & ANTI-TWO BLOCK ASSEMBLY
ITEM
PART #
DESCRIPTION
DETAILS
KIT #
QTY
5.
91723584
HARDWARE KIT
(effective through 05/22/13)
1
91725205
HARDWARE KIT
(effective from 05/22/13)
1
6.
91723601
HYDRAULIC KIT
A/R
91725088
HYDRAULIC KIT
SINGLE PROPORTIONAL
A/R
54.
71570825
WINCH-PLANETARY
60.00 LB LINE PULL (A60)
1
62.
77041863
SWITCH-LIMIT
DT04-4P CONN
1
78.
71413185
SPRING
.105 WIRE 0.75OD 2 .875 LG
#5
1
90.
72060639
SCREW-MACHINERY
10-24 X 1.25 ROUND HEAD
#5
2
93.
72062093
NUT
#8 -32 HEX ZINC
#5
2
107.
72063271
WASHER
# 8 W FLAT ANSI B 27. 2Z
#5
2
110.
72601938
BOLT-EYE
# 8-32X 1.125
#5
1
112.
72602022
BOLT-SHOULDER
.38X 1.25
#5
1
120.
72532359
ADAPTER
M STR/M JIC 10 8
#6
2
126.
72533490
ADAPTER
M BSPP/M JIC 4 4
#6
1
REV G 20120815
