IMT 10000 User Manual

Chapter 4 Parts 49

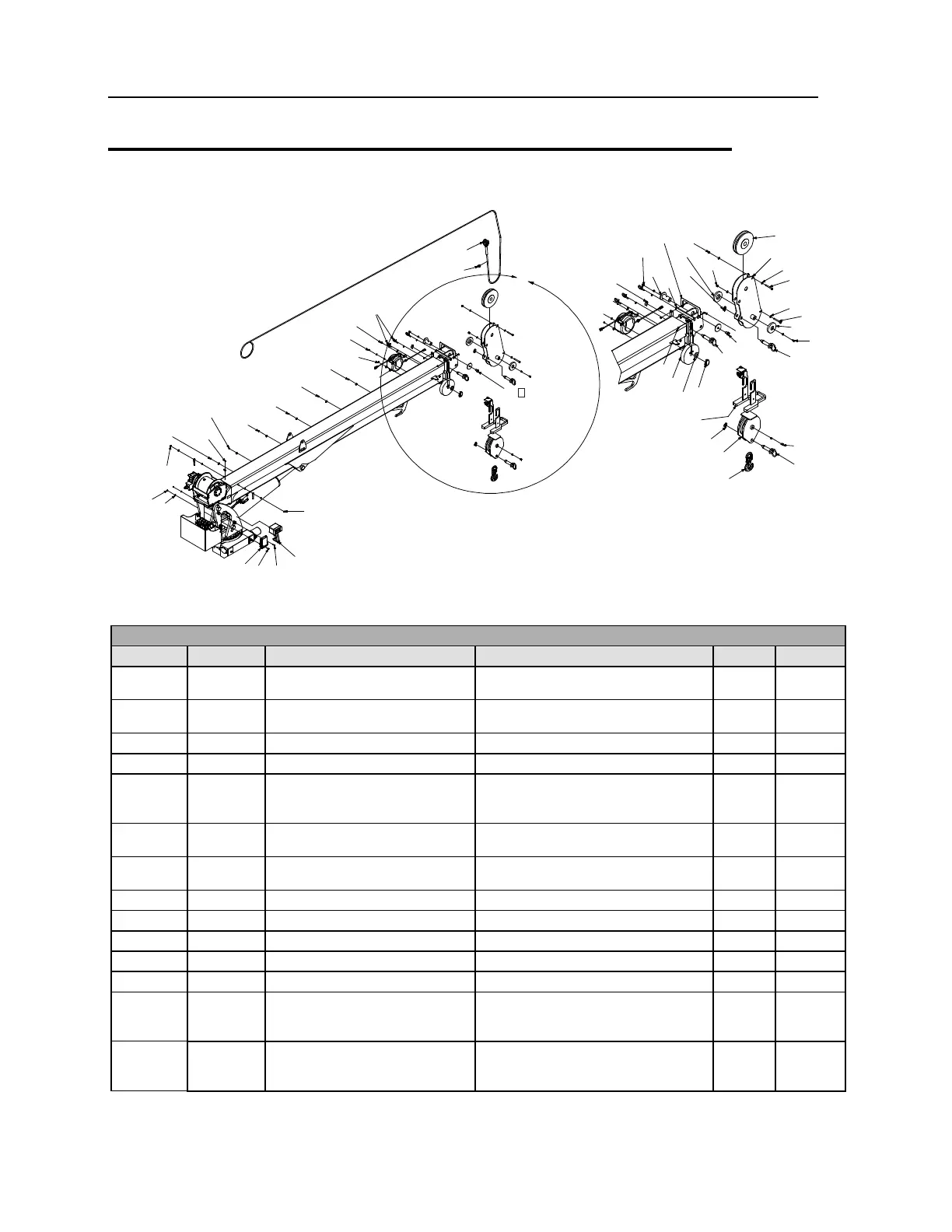

Flip Sheave Assembly (99904925)
(See Parts List for Effectivity Dates)
A
DETAIL A
74
75
76
49
76
48
55, 97
98, 102, 82
7
113
81, 77
15
53
58
60
113
19
136
60
17
60
77, 81
91
99
91
99
21
18
88, 32
99, 94
147
113
99, 94
46
43
100
92, 114
88
147
149
148
150
151
77, 81
98, 102, 82
55, 97
55, 97
55, 97
55, 97
55, 97
55, 9755, 97
95, 98, 31, 98
98, 31, 99, 95
1
NOTES:
1 USE BLUE LOCTITE.
FLIP SHEAVE ASSEMBLY PARTS LIST (99904925)
ITEM
PART #
DESCRIPTION
DETAILS
KIT #
QTY
4.
51719413
HARDWARE KIT-CRANE
RADIO CONTROLS
1
5.
91725205
HARDWARE KIT
(effective from 05/22/13)
1
7.
51723610
CORD REEL ASSEMBLY
30' WITH CONNECTOR
1
15.
52723030
PIN
M 1.50X 3.38
1
17.
52725155
WELDMENT- ANTI-TWO
BLOCK BRACKET
(effective from 04/17/13)
1
18.
52725153
WELDMENT-FLIP SHEAVE
(effective from 04/17/13)
9500/ 10000
1
19.
52725066
WELDMENT- SNATCH BLOCK
(effective from 03/04/13)
9500/ 10000
1
21.
60030255
SHEAVE
9.00 NYLATRON GSM
1
31.
70034490
PLATE-ANGLE PLASTIC
3.5"
2
32.
60109337
PIN RETAINER PLATE
3.00 DIA
1
43.
70145121
COLLAR-SHAFT 2 PIECE
7/8 in.
1
46.
70580203
WIRE ROPE ASSEMBLY
0.44 (6X25 )X130 ft LH LAY
1
48.
70734748
TRANSMITTER-RADIO
REMOTE
(effective from 04/17/13)
SINGLE PROPORTIONAL
A/R
48.
70734761
TRANSMITTER-RADIO
REMOTE
(effective from 04/17/13)
NON-GATED W/HORN
A/R
