IMT 10000 User Manual

Chapter 4 Parts 67

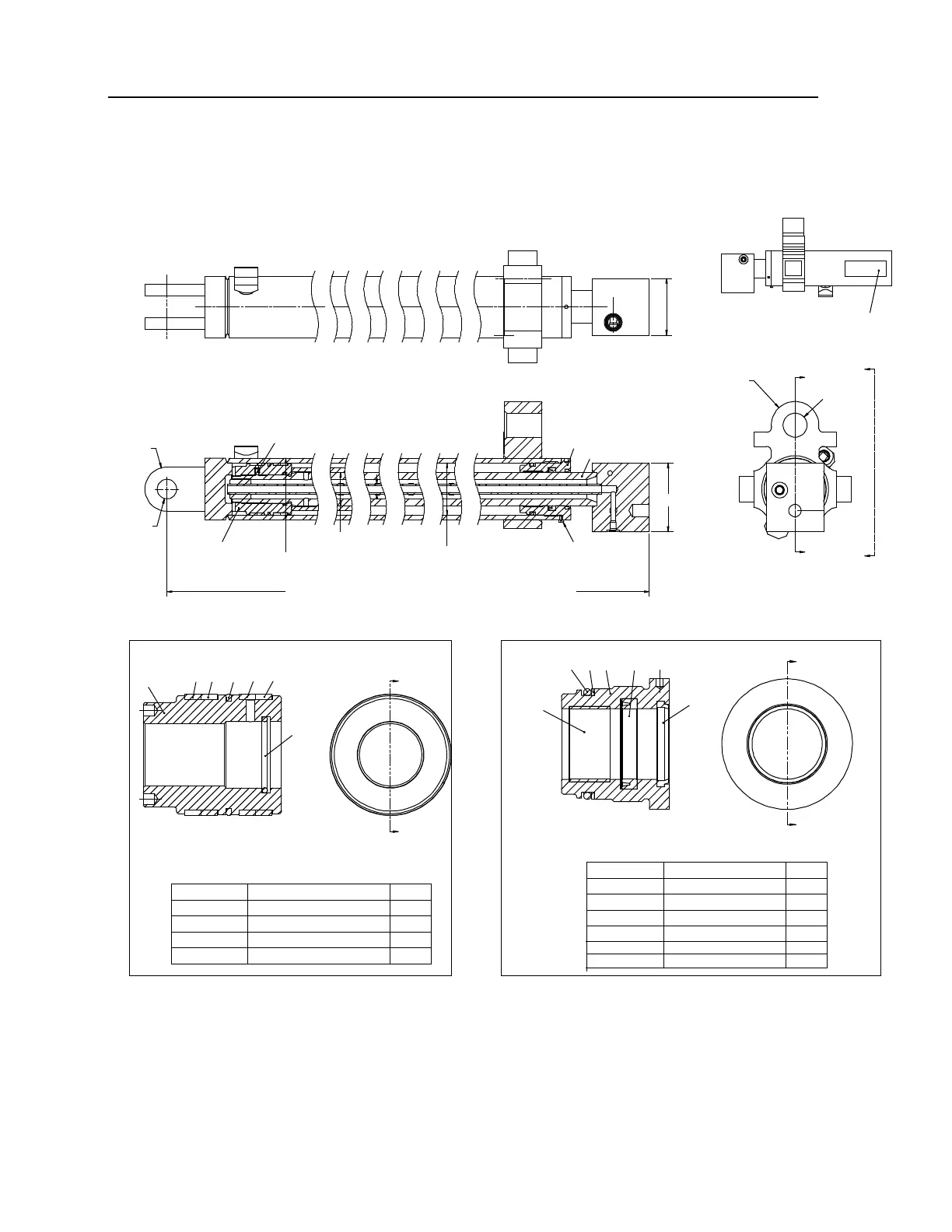

Cylinder (51723927)
.
2
4
5
6
7
A
A
B
B
3.63"
3"
139.94" CLOSED - 241.94" OPEN - 102" STROKE
SECTION A-A
Ø3.25" BARREL
Ø2.75" BORE
Ø1.75" ROD
SECTION B-B
STAMP WITH PART
NUMBER AND REVISION.
R1.16"
Ø1.03"
R1.25"
Ø1.27"
PISTON SEALS
ITEM NO. DESCRIPTION QTY.
1 PISTON 1
2 PISTON SEAL 1
3 O-RING 1
4 WEAR RING (PISTON) 4
SEALS FOR 51723927 PISTON
3
44
2
44
1
A
A
SECTION A-A
ROD SEALS
ITEM NO. DESCRIPTION QTY.
1 ROD BEARING 1
2 ROD SEAL 1
3 WIPER 1
4 O-RING 1
SEALS FOR 51723927 ROD BEARING
5 BACKUP RING 1
6 WEAR RING 1
14 5
6
3
2
A
A
SECTION A-A
SEAL KIT # 94399162, WHICH INCLUDES ALL ROD AND PISTON SEALS FOR 51723927.
SEALS CANNOT BE PURCHASED INDIVIDUALLY.
