IMT 10000 User Manual

Chapter 4 Parts 89

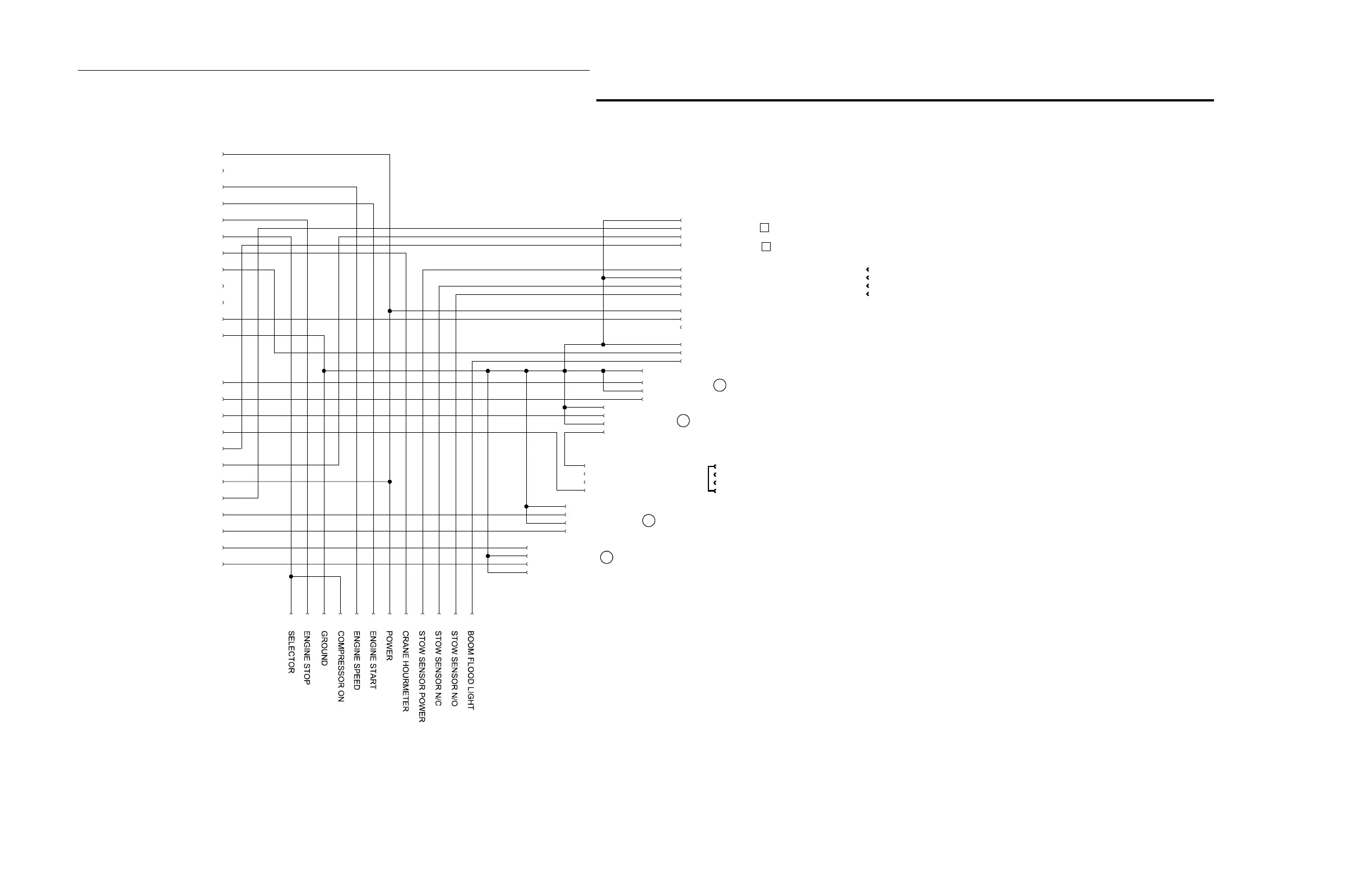

Radio Remote Harness (77441481)
BODY INTERFACE
CJ-1202
1
2 3 4 5 6 7 8 9 10 11 12
RADIO
CP-1201
ROTATE CW
ROTATE CCW
BOOM RETRACT
BOOM EXTEND
CAN LOW
POWER (RADIO)
TETHER POWER
CAN HIGH
WINCH OUT
WINCH IN
BOOM DOWN
BOOM UP
INTERFACE
RECEIVER
(BLACK)
12
11
10
9
8
7
6
5
4
3
2
1
RADIO
CP-1200
GROUND
TRANSDUCER SIGNAL
N/C
N/C
A2B SIGNAL
CRANE HOURMETER
COMPRESSOR ON
ENGINE STOP
ENGINE START
ENGINE SPEED
N/C
POWER (RADIO)
INTERFACE
RECEIVER
(GRAY)
12
11
10
9
8
7
6
5
4
3
2
1
1
2
4
ROTATE CCW
GROUND
ROTATE CW
J1 ROTATE CW/CCW
4
3
1
BOOM EXTEND
GROUND
BOOM RETRACT
J3 BOOM EXT/RETRACT
1
3
4
WINCH IN
GROUND
WINCH OUT
J4 WINCH IN/OUT
4
3
1
BOOM UP
GROUND
BOOM DOWN
J2 BOOM UP/DOWN
A
B
C
GROUND
A2B SIGNAL
BOOM FLOOD LIGHT
A2B/FLOOD LIGHT
CJ-300
A
B
C
TRANSDUCER POWER
TRANSDUCER SIGNAL
N/C
PRESSURE
CP-300
TRANSDUCER
A
B
C
STOW SENSOR POWER
STOW SENSOR GROUND
STOW SENSOR N/C
STOW SENSOR
CJ-401
CAP
CP-401
D
A
B
C
DSTOW SENSOR N/O
BLACK
BROWN
WHITE
GROUND
CAN LOW
TETHER POWER (6V)
RADIO RECEIVER
CJ-400
BLUE CAN HIGH
TETHER INTERFACE
1
2
3
WINCH OUT
N/C
N/C
WINCH OUT
CP-402
WINCH OUT
CJ-402
4
1
2
3
4WINCH OUT
LIMIT SWITCH
LIMIT SWITCH JUMPER
1
1
2 GROUND
2 GROUND
2 GROUND
3 GROUND
C
P
P
G G G G B
G
G
R
E
W
NOTES:
1 USE SHIELDED, TWISTED PAIR FOR CAN LOW, CAN HIGH BETWEEN CP-1201 AND CJ-400.
