18 Model 10000 30-foot Parts & Specifications Manual Part # 99905185

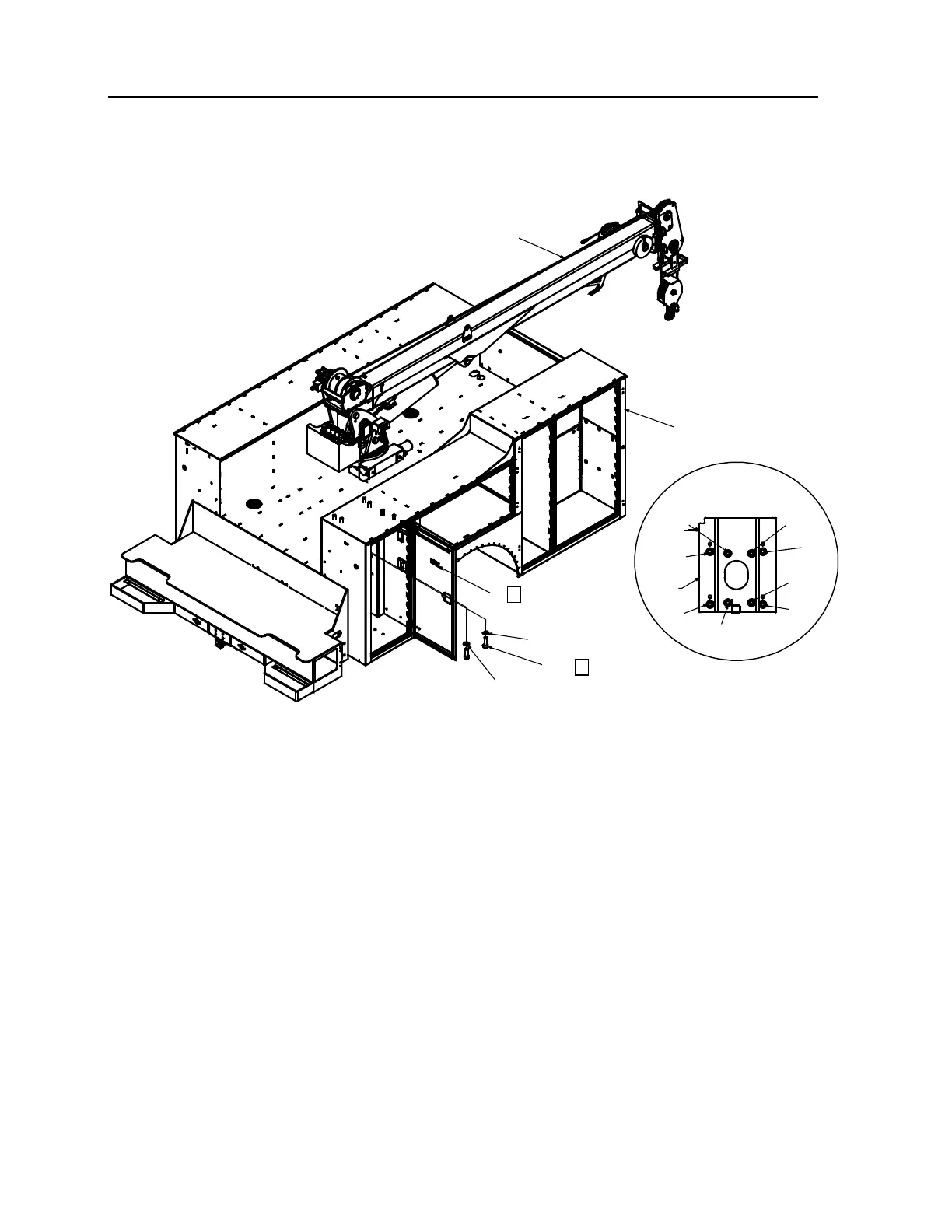

Dominator II - 8600 - 10000 Crane Installation Kit (99905067)

7 (6)

5 (8)

6 (2)

5, 7

5, 6

5, 6 5, 7

5, 7

DOOR

SIDE

CUT WASHER

LOCATIONS

NOTES (SEE REFERENCE NUMBER IN BOX):

1 INSTALL THE LEVEL INDICATOR (72042097) PARALLEL TO THE DOOR REINFORCEMENTS.

2 TORQUE MOUNTING BOLTS TO 680 FT-LB (94 KG-M). (8 PLACES) USE THE SUPPLIED 3" (7.6 cm) BOLTS

WITH A CRANE BOX TOP PLATE THICKNESS OF 1/2" TO 5/8" (1.3 cm TO 1.6 cm) ONLY. DETERMINE THE

THICKNESS OF THE CRANE BOX TOP PLATE PRIOR TO MOUNTING. IF DIFFERENT LENGTH BOLTS

ARE REQUIRED, THEY MUST BE 1-8, GRADE 8, ZINC COATED, OF PROPER LENGTH. FAILURE TO USE

PROPER LENGTH BOLTS MAY CAUSE THE BOLTS UNDER THE CRANE SWING BEARING TO BOTTOM

OUT BEFORE TORQUING. INSURE A MINIMUM OF 1-1/2" (3.8 cm) THREAD ENGAGEMENT.
