IMT 10000 User Manual

Chapter 3 Crane Reference 19

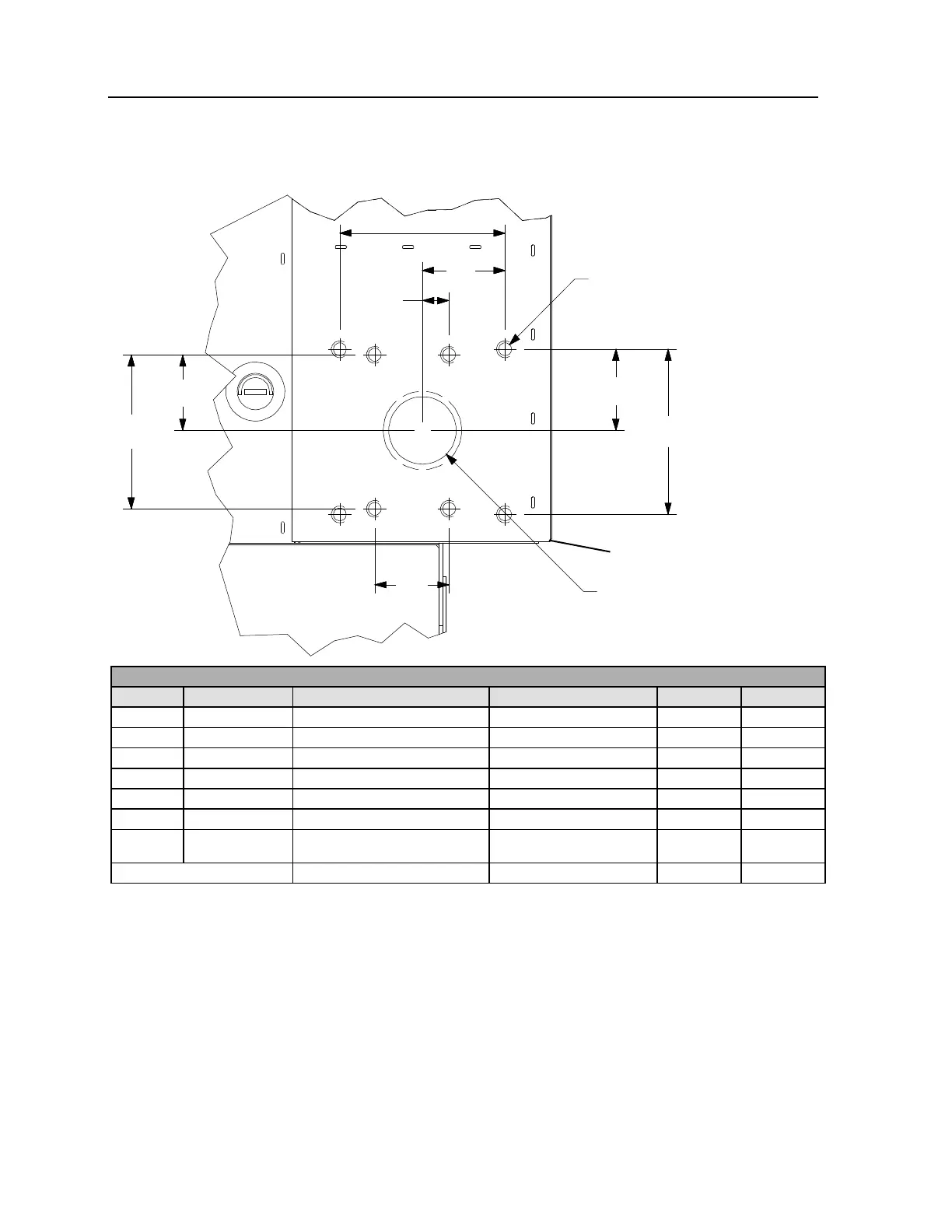

CRANE MOUNTING HOLE LOCATIONS
1.13” (2.9 cm) THROUGH
CRANE BOX TOP ONLY
(8 PLACES)
6” (15.2 cm) THROUGH
CRANE BOX TOP ONLY
14.75”
(37.5 cm)
7.25”
(18.4 cm)
13.75”
(34.9 cm)
6.75”
(17.1 cm)
14.75” (37.5 cm)
7.38”
(18.7 cm)
2.38”
(6 cm)
6.63”
(16.8 cm)
REAR OF TRUCK
99905067 PARTS
ITEM
PART #
DESCRIPTION
DETAILS
KIT #
QUANTITY
1.
93713669
INSTALLATION KIT
7500-10000
1
2.
CRANE
CRANE ASSEMBLY
1
3.
BODY
DOMINATOR BODY
1
4.
72042097
LEVEL INDICATOR LEVEL
#1
1
5.
72601748
CAP SCREW
1.00- 8X 3.00 SH GR8
#1
8
6.
72063066
WASHER
1.00 FLAT HI STR
#1
2
7.
72063286
WASHER
FLAT 1.00 H ASTM F436
Z-CUT
#1
6
REV E 20140211
