IMT 10000 User Manual

Chapter 2 Specifications 11

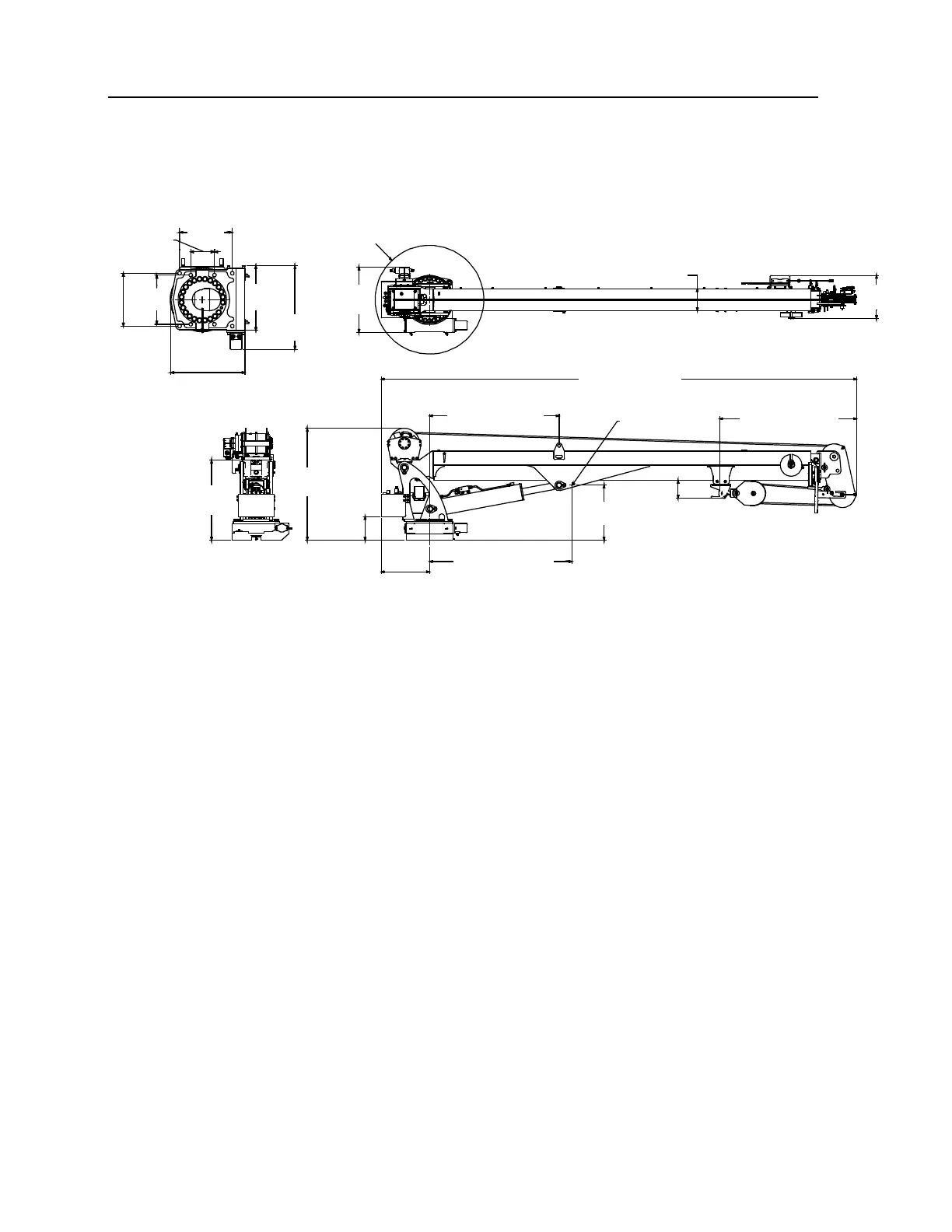

MOUNTING HOLE PATTERN
(FROM BASE OF CRANE)
23.4"
(59.3 cm)
18.1"
(46 cm)
6.6" (16.8 cm)
14.75"
(37.5 cm)
20.8" (52.8 cm)
13.75"
(34.9 cm)
14.75"
(37.5 cm)
RADIUS 20" (51 cm)
SWING CLEARANCE
15.91"
(40.4 cm)
8" (20.3 cm)
24"
(61.0 cm)
TOP VIEW
29.6"
(75.1 cm)
41.2"
(104.7 cm)
8.7"
(22.1 cm)
17.75"
(45.1 cm)
CENTER
OF GRAVITY
20.3"
(51.6 cm)
52.6" (133.6 cm)
6.5"
(16.5 cm)
47.8" (121.4 cm)
50.4" (128.1 cm)
175.1" (444.7 cm)

IMT 10000 Specifications

General

Brand	IMT
Model	10000
Category	Construction Equipment
Language	English
